Quick Details
-
Applicable Models:
-
ALL Cars
-
Combination:
-
pipeline leak tester, fuel tank test
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUTOOL
-
Model Number:
-
SDT208
-
Warranty:
-
1 Years
-
Product Name:
-
AUTOOL SDT208
-
Keywords:
-
Smoke Gas Leak Leakage Tester Detector
-
Function:
-
Multi Function
-
Special Features:
-
air mode, smoke mode, built-in pump
-
Weight:
-
6kg
-
Application:
-
Universal Cars
-
Dimensions:
-
28*21*18
-
Output Folow:
-
1-15L/min
-
Update:
-
No
-
Color:
-
As picture
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
DC12V/24V
-
Power:
-
9-30w
-
Applicable Models:
-
ALL Cars
-
Combination:
-
pipeline leak tester, fuel tank test
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUTOOL
-
Model Number:
-
SDT208
-
Warranty:
-
1 Years
-
Product Name:
-
AUTOOL SDT208
-
Keywords:
-
Smoke Gas Leak Leakage Tester Detector
-
Function:
-
Multi Function
-
Special Features:
-
air mode, smoke mode, built-in pump
-
Weight:
-
6kg
-
Application:
-
Universal Cars
-
Dimensions:
-
28*21*18
-
Output Folow:
-
1-15L/min
-
Update:
-
No
-
Color:
-
As picture

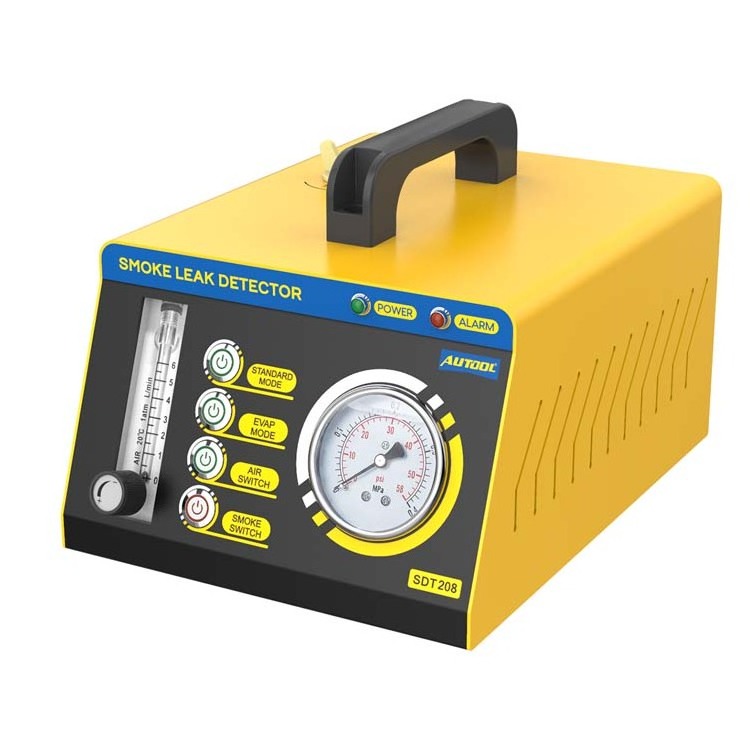

AUTOOL SDT208 Car Smoke Leak Detector EVAP System Tester
—an marvelously professional auto pipes Leak Smoke Tester, in line with the technical specifications of the car repair shop EVAP test. SDT208 greatly increases efficiency and helps us locate leaks from cars and motorcycles on our piping system within minutes, quickly and exactly, such as EVAP System Test,Intake System Test,Exhaust Systems Test,Cooling System Test, Turbo System Testing, Crankcase system test,Car Sealing Test, Various Pipe Fittings Test.
Product Description
|
Material |
Plastic |
|
Color |
As the photo |
|
MOQ |
1Pcs Or 1 sets |
|
Packing |
By Standard Packing |
|
Shipping |
By DHL/By Fedex/ by TNt by Post Etc. |
|
Delivery time |
Within 3 days |
Working theory: Low oxygen combustion
Way of working: The MR CARTOOL Smoke Leak Detector employs a forced combustion smoke generation method in a low oxygen environment. It is energized by a conductive column to the heating wire, which rapidly heats up to more than 300°C so that the mineral oil reaches the ignition point and enters the state of combustion. Due to the small intake of air flow, it is insufficient to provide sufficient oxygen to maintain full combustion, thus the combustion mainly occurs on the surface of the heating wire. Subject to high-temperature heating, the mineral oil retention object can continue to burn insufficiently around the heating wire, thus producing a large amount of smoke.
AUTOOL SDT 208 Car Smoke Leak Detector Features
[PRO EVAP DETECTION]:In line with the technical requirements of the car repair shop EVAP test. The SDT208 can detect tiny leaks up to 0.5mm and has a hold-limit pressure protection function in EVAP mode, so as to protect vehicle pipes from damages.
[UNIQUE DESIGN]: The SDT208 is equipped with two pressure control modules, respectively,Standard Mode and EVAP Mode. And two independent switches (Air &Smoke), which can be used for a wide range of leak detection needs. Provided with three gauges includes Oil Level, Air Flow & Air Pressure for accurate data display.
[WIDE RANGE of APPLICATIONS]: It supports 12V/24V car batteries. For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats boats. Suitable for all car models
[OPERATION SAFTY]: The SDT208 owns high temperature protection and hold -limit pressure. During operation, if the equipment senses the temp. above 75°C, the power supply will be automatically power off. If the air pressure exceeds the Standard mode (35psi) /EVAP mode (10psi), the air pump will stop working. This effectively ensures the safety of operators and equipment.
[3-YEAR WARRANTY]: For damages caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
Specification
Specification
|
Type
|
Engine Analyzer
|
|
Voltage
|
DC12V/24V
|
|
Power
|
9-30w
|
|
Applicable Models
|
ALL Cars
|
|
Combination
|
pipeline leak tester, fuel tank test
|
|
Place of Origin
|
China
|
|
Brand Name
|
AUTOOL
|
|
Model Number
|
SDT208
|
|
Warranty
|
3Years
|
|
Product Name
|
Automotive Engine Smoke Machine Leak Detector
|
|
Keywords
|
Smoke Gas Leak Leakage Tester Detector
|
|
Function
|
Multi Function
|
|
Special Features
|
air mode, smoke mode, built-in pump
|
|
Weight
|
6kg
|
|
Application
|
Universal Cars
|
|
Dimensions
|
28*21*18
|
|
Output Folow
|
1-15L/min
|
Packing & Delivery
Packing & Delivery
Packing List
1pc * AUTOOL SDT208 Car Smoke Leak Detector EVAP System Tester Main Unit
1pc * Hook (with hand-tighten nuts)
1sets * Rubber hose plug (with serial specification)
1pc * standard cone adapter
1pc * power cord clamp
1pc * oil bottle(oil not included)
1pc*EVAP special connector
1pc*smoke hose
1pc * User manual
