- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
cast-acrylic
-
Thickness:
-
1.8-300mm
-
Size:
-
1220*2440mm and so on
-
Product name:
-
acrylic sheet
-
colour:
-
clear ,transparent
-
light transmittance:
-
up to 93%
-
raw material:
-
100% virgin lucite mma
-
Customized:
-
size and colour can customized
-
Density:
-
1.2g/cm3
-
Weather Resistance:
-
Withstand sunlight for long duration against discoloration, anti-UV
-
Insulation:
-
Higher resistivity to be ideal insulator
-
Feature:
-
Crack resistance
-
Application:
-
building , advertisement, traffic, medical, industrial, light
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shuohang
-
Model Number:
-
cast-acrylic
-
Thickness:
-
1.8-300mm
-
Size:
-
1220*2440mm and so on
-
Product name:
-
acrylic sheet
-
colour:
-
clear ,transparent
-
light transmittance:
-
up to 93%
-
raw material:
-
100% virgin lucite mma
-
Customized:
-
size and colour can customized
-
Density:
-
1.2g/cm3
-
Weather Resistance:
-
Withstand sunlight for long duration against discoloration, anti-UV
-
Insulation:
-
Higher resistivity to be ideal insulator
-
Feature:
-
Crack resistance
-
Application:
-
building , advertisement, traffic, medical, industrial, light
Products Description

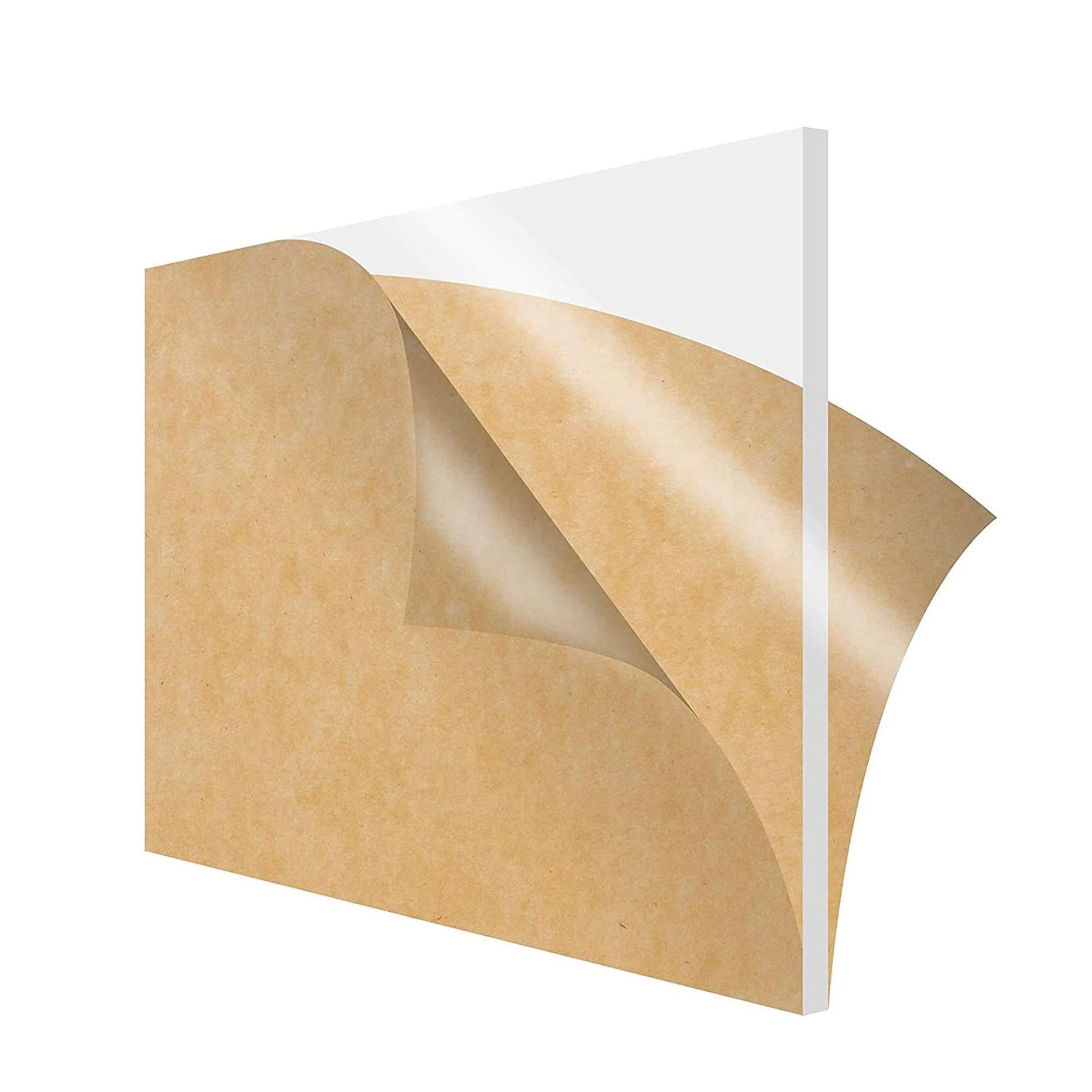

Shuohang 2mm 2.8mm 3mm 4mm 6mm clear MMA Sheet Cast Acrylic sheet Transparent PMMA Sheet
3mm clear transparent PMMA Sheet clear acrylic sheet Cast Acrylic Sheet Transparent Acrylic Sheet
transparent acrylic sheet, color acrylic sheet, super thick acrylic sheet, frosted acrylic sheet, mirror acrylic sheet
acrylic sheet, glitter acrylic sheet, silver and gold cloth acrylic sheet
acrylic advantage
Clear acrylic sheet is colorless and transparent, its transparency is the topmost one in all plastic,its
transmittance is more than >92% for 100% virgin raw material.
transmittance is more than >92% for 100% virgin raw material.
change, Good aging resistance, it can be used safely outdoors.
Good dimension stability, the product will be beautiful and smooth after formation processing or
ftting processing.
ftting processing.
Product Paramenters
|
Material
|
100% PMMA
|
|
Thickness
|
1.5,1.8, 2, 3, 4, 5, 8,10,15,20, 30, 50,60mm (1.5-60mm)
|
|
Color
|
transparent, white, opal, black, red, green, blue, yellow, etc. OEM color OK
|
|
Standard size
|
1220*1830, 1220*2440,1270*2490, 1610*2550,
1440*2940, 1850*2450, 1050*2050,1350*2000,2050*3050,1220*3050 mm |
|
Certificate
|
CE, SGS, DE, and ISO 9001
|
|
Equipment
|
Imported glass models (from Pilkington Glass in U. K.)
|
|
MOQ
|
300kg, can be mixed with colors/sizes/thickness
|
|
Delivery
|
7-14 days
|
|
Our popular sizes
|
|
|
|
|
|
|
||||||
|
With Edge (mm)
|
1250×1850
|
1250×2450
|
1050×2050
|
1850×2450
|
2090×3090
|
1550×3050
|
||||||
|
Without Edge (mm)
|
1220×1830
|
1220×2440
|
1020×2020
|
1820×2420
|
2050×3050
|
1500×3000
|
||||||
|
Note: Total we have up to 30 different sizes, contact us for more detail.
|
|
|
|
|
|
|
||||||
|
Thickness: 1.5-30mm
|
|
|
|
|
|
|
||||||
|
Physical Property of Cast Acrylic sheet
|
|
|
|
|||
|
|
PROPERTY
|
UNIT
|
VALUE
|
|||
|
MECHANICAL
|
Specific Gravity
|
—
|
1.19-1.2
|
|||
|
|
Roswell Hardness
|
kg/cm 2
|
M-100
|
|||
|
|
Shear Strength
|
kg/cm 2
|
630
|
|||
|
|
Flexural Strength
|
kg/cm 2
|
1050
|
|||
|
|
Tensile Strength
|
kg/cm 2
|
760
|
|||
|
|
Compressive Strength
|
kg/cm 2
|
1260
|
|||
|
ELECTRICAL
|
Didlectic Strength
|
Kv/mm
|
20
|
|||
|
|
Surface Resistivity
|
Ohm
|
> 10 16
|
|||
|
OPTICAL
|
Light Transmittance
|
%
|
93
|
|||
|
|
Refractive Index
|
—
|
|
|||
|
THERMAL
|
Specific Heat
|
Cal/gr℃
|
0.35
|
|||
|
|
Coefficient of Thermal Cortductivily
|
Cal/xee/cm/℃/cm
|
|
|||
|
|
Hot Forming Temp
|
℃
|
140-180
|
|||
|
|
Hot Defomation Temp
|
℃
|
100
|
|||
|
|
Thermal Expansion Coefficient
|
Cmfcm/V
|
6×10-5
|
|||
|
MISCELLANEOUS
|
Water Absorption(24Hrs)
|
%
|
0.3
|
|||
|
|
Teste
|
%
|
None
|
|||
|
|
Odor
|
|
|
|||
In order to offer a good price, we need your kindly help to confirm us about the following details as the reference
1. color (transparent, semitransparent, white, black, red, blue, green and as per customer's requirement)
2. thickness (2mm~300mm)
3. size (1250x1850mm ,1230x2430mm,1250x2450mm,2050x3050mm)
4. Quantity to check the delivery time
Product packaging
1.one pc acrylic sheetpacking: covered with craft paper or PE film on double sides ,the covered film without any our compoany sign.
2.with pallet Bulk cargo packing: 2 tons per pallet, use wooden pallets and iron pallets on bottom, with packaging film packages all around ensure transportation security.
3.Full container load packing: 20-23 tons(about 3000pcs) of a 20 foot container with 10 -12pallets .
2.with pallet Bulk cargo packing: 2 tons per pallet, use wooden pallets and iron pallets on bottom, with packaging film packages all around ensure transportation security.
3.Full container load packing: 20-23 tons(about 3000pcs) of a 20 foot container with 10 -12pallets .
