Quick Details
-
Model Number:
-
CX-PG
-
Material:
-
chrome plated brass
-
Dial:
-
1", 1.25"
-
Range:
-
0~40Mpa
-
Connection:
-
1/8NPT;customized
-
accuracy:
-
4.0%
-
temperature:
-
-40~70℃
-
Unit:
-
psi;mpa;bar;etc
-
Enclosure Rating:
-
IP65
-
Lens:
-
Plexiglass or Polycarbonate
-
Dial size:
-
1" 25mm
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CXINSTRUMENT
-
Model Number:
-
CX-PG
-
Material:
-
chrome plated brass
-
Dial:
-
1", 1.25"
-
Range:
-
0~40Mpa
-
Connection:
-
1/8NPT;customized
-
accuracy:
-
4.0%
-
temperature:
-
-40~70℃
-
Unit:
-
psi;mpa;bar;etc
-
Enclosure Rating:
-
IP65
-
Lens:
-
Plexiglass or Polycarbonate
-
Dial size:
-
1" 25mm

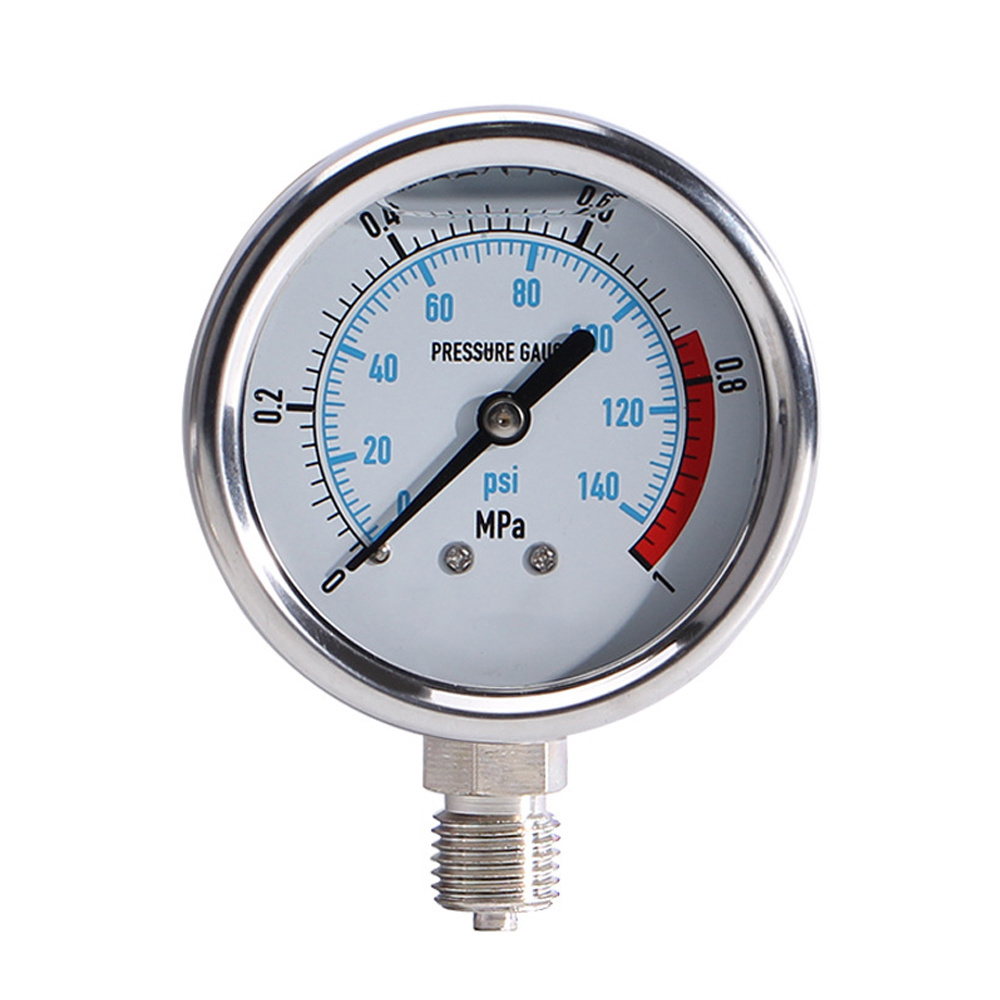

Dial 1inch 23mm 25mm Micro Small Mini Pressure Gauge
A.[Feature of mini pressure gauge]
Diameter of pressure gauge
The normal diamter is 22mm,25mm,40mm and also customized for you.
Pressure Range of pressure gauge
Measure range 0~40Mpa and also customized
The Unit of Pressure Display
For Bar,Mpa,Psi and more also display multiple unit together.
B.[Parameters of pressure gauge]
| Production Name | Mini Pressure Gauge |
| Diameter | 22mm;25mm;40mm and customized |
| Body Material | Copper alloy chrome plating |
| Cover Material | PC material |
| Spiral tube material | Brass |
| Measuring range | 0~40Mpa and customized |
| Connection | 1/8''NPT and customized |
| Accuarcy | 4.0% |
| Temperature | -40~70℃ |
| Protection grade | IP65 |
| Function | Vibration resistance, impact resistance, fatigue resistance, anti-fire extinguishing, corrosion resistance, waterproof. |
