- Product Details
- {{item.text}}
Quick Details
-
Rated Load:
-
10T, 1000kg~10T
-
Accuracy:
-
200g
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AIDA
-
Model Number:
-
CW
-
manual weighing scales:
-
manual weighing scales
-
Indicator:
-
Economic; General; High Precision
-
Option 1:
-
Indicator Stand alone industrial floor sca
-
Option 2:
-
Ramp industrial floor scale
-
size:
-
800*800mm~2*3m
-
Warranty:
-
1 years for accessories
-
shipping:
-
by sea or by air
Quick Details
-
Type:
-
Floor Scale
-
Power Supply:
-
220V, AC 100~240 V or DC 6V4Ah,AC100~240
-
Display Type:
-
LCD, LED/LCD
-
Rated Load:
-
10T, 1000kg~10T
-
Accuracy:
-
200g
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AIDA
-
Model Number:
-
CW
-
manual weighing scales:
-
manual weighing scales
-
Indicator:
-
Economic; General; High Precision
-
Option 1:
-
Indicator Stand alone industrial floor sca
-
Option 2:
-
Ramp industrial floor scale
-
size:
-
800*800mm~2*3m
-
Warranty:
-
1 years for accessories
-
shipping:
-
by sea or by air

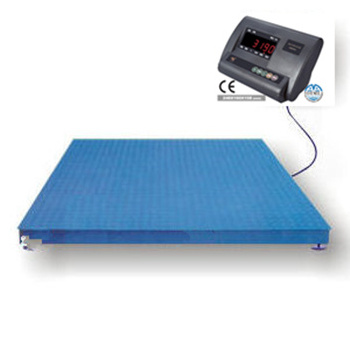

1.
Carbon steel, stainless steel optional
2.Plate, pattern plate optional
3.Low scale, no frame structure design, a simple structure
4.Limit one forming mechanism
5.The four angle is adjustable in height
6.Surface spray or paint handling
7.Installation, convenient use, placed directly on the hard ground can be used
8.Optional ramps
The standard for ordinary 5MM thickness plate + Shanghai Yaohua XK3190-A12 display, spray tops, signal line length 5 m.
Note : Size can be customized , Details Price kindly consult us by mail or trademanager !
| Item | Model | capacity | checker plate | width(m) | length(m) | |||
| 1 | DS9330-600*600mm-A12E | 1-3T | 4mm | 0.6 | 0.8 | |||
| 2 | DS9330-800*800mm-A12E | 1-3T | 4mm | 0.8 | 0.8 | |||
| 3 | DS9330-1*1m -A12E | 1-3T | 4mm | 1.0 | 1.0 | |||
| 4 | DS9330-1*1.2m-A12E | 1-3T | 4mm | 1.0 | 1.2 | |||
| 5 | DS9330-1.2*1.2m-A12E | 1-3T | 4mm | 1.2 | 1.2 | |||
| 6 | DS9330-1.2*1.5m-A12E | 1-3T | 4mm | 1.2 | 1.5 | |||
| 7 | DS9330-1.5*1.5m-A12E | 1-3T | 4mm | 1.5 | 1.5 | |||
| 8 | DS9330-1.5*2.0m-A12E | 1-3T | 4mm | 1.5 | 2.0 | |||
| Item | Model | capacity | checker plate | width(m) | length(m) | |||
| 1 | DS9530-1*1m-A12E | 1-3T | 5mm | 1.0 | 1.0 | |||
| 2 | DS9530-1*1.2m-A12E | 1-3T | 5mm | 1.0 | 1.2 | |||
| 3 | DS9530-1.2*1.2m-A12E | 1-3T | 5mm | 1.2 | 1.2 | |||
| 4 | DS9530-1.2*1.5m-A12E | 1-3T | 5mm | 1.2 | 1.5 | |||
| 5 | DS9530-1.5*1.5-A12E | 1-3T | 5mm | 1.5 | 1.5 | |||
| 6 | DS9530-1.5*2m-A12E | 1-10T | 5mm | 1.5 | 2.0 | |||
| 7 | DS9530-1.5*2.5m-A12E | 1-10T | 5mm | 1.5 | 2.5 | |||
| 8 | DS9530-1.5*3m-A12E | 1-10T | 5mm | 1.5 | 3.0 | |||
| 9 | DS9530-2.0*2.0m-A12E | 1-10T | 5mm | 2.0 | 2.0 | |||
| 10 | DS9530-2.0*2.5m-A12E | 1-10T | 5mm | 2.0 | 2.5 | |||
| 11 | DS9530-2.0*3.0m-A12E | 1-10T | 5mm | 2.0 | 3.0 | |||
| Item | Model | capacity | checker plate | width(m) | length(m) | |||
| 1 | DS9630-1.0*1.0m-A12E | 1-3T | 6mm | 1.0 | 1.0 | |||
| 2 | DS9630-1.0*1.2m-A12E | 1-3T | 6mm | 1.0 | 1.2 | |||
| 3 | DS9630-1.2*1.2m-A12E | 1-3T | 6mm | 1.2 | 1.2 | |||
| 4 | DS9630-1.2*1.5m-A12E | 1-3T | 6mm | 1.2 | 1.5 | |||
| 5 | DS9630-1.5*1.5m-A12E | 1-3T | 6mm | 1.5 | 1.5 | |||
| 6 | DS9630-1.5*2.0m-A12E | 1-10T | 6mm | 1.5 | 2.0 | |||
| 7 | DS9630-1.5*2.5m-A12E | 1-10T | 6mm | 1.5 | 2.5 | |||
| 8 | DS9630-1.5*3.0m-A12E | 1-10T | 6mm | 1.5 | 3.0 | |||
| 9 | DS9630-2.0*2.0m-A12E | 1-10T | 6mm | 2.0 | 2.0 | |||
| 10 | DS9630-2.0*2.5m-A12E | 1-10T | 6mm | 2.0 | 2.5 | |||
| 11 | DS9630-2.0*3.0m-A12E | 1-10T | 6mm | 2.0 | 3.0 | |||
* Containing scale body, A12E indicator, 4 sensors, ABS junction box, 5 m signal cable.
* High-strength U-beam structure, durable
* Automatic reset back to zero repeatability and good.
Optional :
* stand pole
* Carbon ramp: 1.0 * 0.63 m, 0.63 m 1.2 * 1.5 * 0.63 m; 2.0 * 0.63 m;
* Carbon ramp: 1.0 * 0.9 m; 1.2 * 0.90 m; 1.5 * 0.9 m; 2.0 * 0.9 m;
*Explosion-proof
