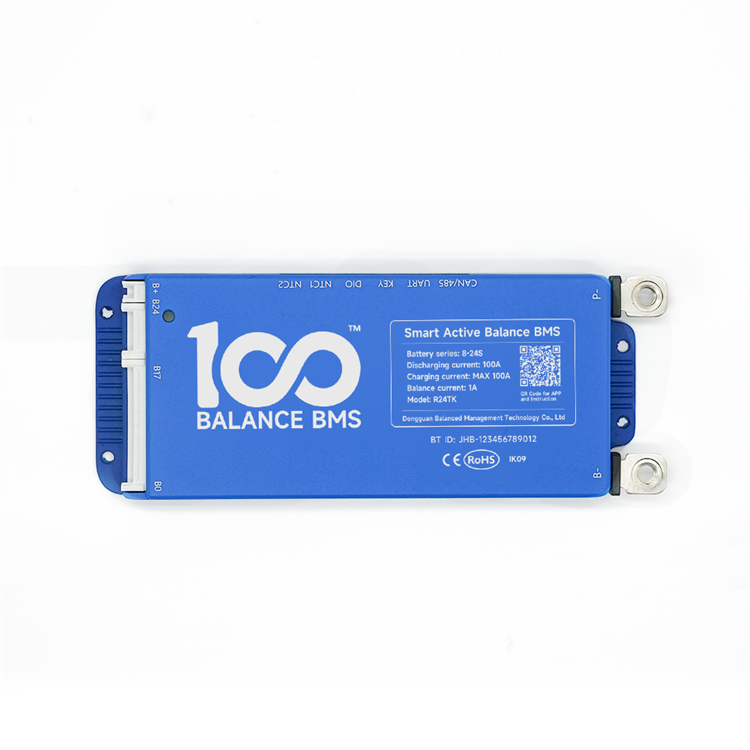

Active Balance : All of 100balance BMS are actively balanced ,balance current is 1A,peak current 1.2A.

Intelligent compatible strings:

NCM/Li-ion battery: 4~8S,8~17S,8~20S ;

LFP /lifepo4 battery: 4~8S,8~17S,8~24S ;

LTO /Lithium titanate battery: 6~8S,8~17S,8~24S ;

Parallel protection: All of 100balance BMS has built-in parallel current limiting module, eliminating the need for additional parallel modules. Parallel capacity expansion is more convenient and safer.

Built-in BT : All of our BMS has built-in Bluetooth,no need for an additional BT interface .

App /program Download : Scan the QR code on our BMS to download the app /PC program,user manual ,ect..

One-key setting : You can set parameters with one key on the app or PC host.

More Protection : In addition to the basic protection functions of the battery protection board (overcharge, overdischarge, overcurrent, short circuit, temperature protection), it also has four additional functions, including parallel protection, miswire/drop protection, and precharge protection.

More interface : Rich interfaces, including CAN, RS485, UART, DIO, NTC, KEY, can be connected to multiple devices and extended function accessories (heating, buzzer, touch screen, Wifi module, GPS, CAN BOX, switch, etc.) at the same time.

(CAN /RS485 is not default interface)

Support function customization: Function customization interface is reserved, welcome to consult.

1. Compare to other market existing BMS, our balance effects of BMS is more efficient and more reliable.

Balancing current 1A, peak current 1.2A.

2.  100balance BMS can do more protection for your battery.

Basic protection functions:

• Overcharge protection
• Over discharge protection
• Overcurrent protection
• Short circuit protection
• Temperature protection

EXtra protection functions:

• Parallel protection
• Misconnection protection
• All-in protection
• Pre-charge protection

3. Compare more features with other brand s BMS

• 100balance BMS is smaller size
• Balance current is 1A
• more communication function
• Extra protection features
• Compatible with more strings
• More communication port
• Has mounting holes

4. Support simultaneous multi-channel communication, fullfill multiple communication requirement.

• Connect to PC Host via CAN , RS485, UART ;  (CAN /RS485  is not default interface)
• Connect to APP or IoT cloud via WiFi module; ( APP can be connected via bulit-in bluetooth)
• Support GPS module .
• Key switch
• Connect Buzzer or heating module via DIO
• Temperature control via NTC
• Support custom function

5.  Easy to do battery remote management

Provide professional  APP , PC host program

Support GPS , IoT Cloud

6.   WiFi wireless transmission ,no distance limit

support bluetooth APP, PC computer ,IoT cloud, WIFI, GPS

"Balance BMS" APP in IOS and Android store support 7 anguages: Chinese, English, Russian, Norwegian , German, French, Spanish.

Self-developed APP convernient and easy to use, a personal lithium battery steward installed in the mobile phone,monitors battery data at any time.

7. Master design and good appearance

Easy to install, strong and reliable.

The task of battery management systems is to ensure the optimal use of the residual energy present in a battery. In order to avoid loading the batteries, BMS systems protect the batteries from deep discharge and over-voltage, which are results of extreme fast charge and extreme high discharge current. In the case of multi-cell batteries, the battery management system also provides a cell balancing function, to manage that different battery cells have the same charging and discharging requirements.

Our standard packing list includes 1pcs smart active balance BMS, 1set P-&B- cable, 2pcs screws, 1set sampling cable, 1pcs B+ cable,1pcs key switch cable, 1pcs NTC , 1unit user manual , and packing box.

Other extra accessory options, if any need please feel free to contact us online.
