Quick Details
-
Brand Name:
-
CHENG JINLAI MECHANICAL
-
Voltage:
-
380V Or according to customer needs
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
1800*500*1700mm
-
Type:
-
50
-
Production Capacity:
-
300-600kg/h
-
Product name:
-
Mechanism charcoal machine
-
Applicable raw materials:
-
Sawdust, wood chips, rice husk, coffee grounds, bamboo, etc.
-
Raw material size:
-
less than 5mm
-
Finished shape:
-
Square, hexagonal,round
-
Moisture of material:
-
less than 12%
-
Materials:
-
Carbon Steel
-
Power:
-
18.5-37KW
-
aftersale service provided:
-
Engineers available to service machinery overseas
Quick Details
-
Warranty:
-
2 years
-
Core Components:
-
Motor, earing, Thruster, Forming cylinder, Heating coil
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
CHENG JINLAI MECHANICAL
-
Voltage:
-
380V Or according to customer needs
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
1800*500*1700mm
-
Type:
-
50
-
Production Capacity:
-
300-600kg/h
-
Product name:
-
Mechanism charcoal machine
-
Applicable raw materials:
-
Sawdust, wood chips, rice husk, coffee grounds, bamboo, etc.
-
Raw material size:
-
less than 5mm
-
Finished shape:
-
Square, hexagonal,round
-
Moisture of material:
-
less than 12%
-
Materials:
-
Carbon Steel
-
Power:
-
18.5-37KW
-
aftersale service provided:
-
Engineers available to service machinery overseas

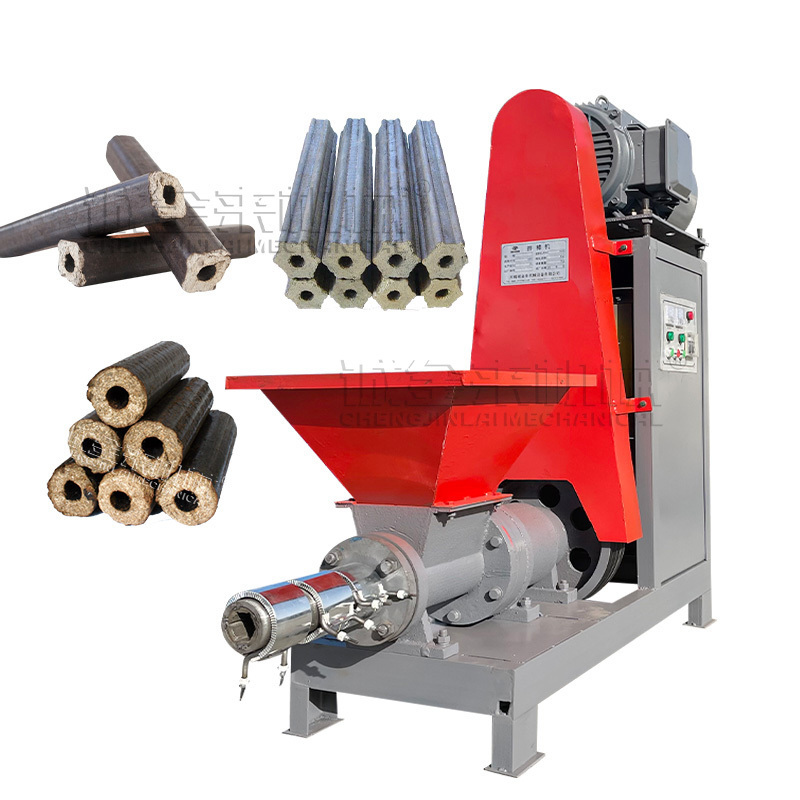

low price screw type briquette press sawdust hollow briquette charcoal making machine for sale
Product Description
bio charcoal making machine
is a machine that pulverizes the sawdust into granules within 10mm, which is dried by a dryer and then put into a carbonization furnace for carbonization.
The charcoal produced by the charcoal machine has high density, small volume and good flammability, and can replace firewood and coal.
The raw material dried by the dryer is formed into fuel under high pressure and high temperature.
Bio charcoal making machine
adopts a temperature adjustment indicator, which can work stably at a fixed temperature, and has the characteristics of reasonable structure and convenient operation and maintenance.
The solid fuel produced has the characteristics of easy ignition, high calorific value (more than 20% higher than ordinary wood), low combustion pollution, high density, and favorable transportation.
This machine can make full use of the remaining part of agriculture and forestry.
Specification
|
Model
|
Productivity
（kg/h）
|
Motor power
(KW)
|
Weight
(kg)
|
Out size
(mm)
|
|
50
|
400-500
|
18.5
|
800
|
1800*500*1700
|
|
80
|
500-600
|
22
|
900
|
1800*500*1700
|
Equipment accessories and finished products
Finished product
Accessories one
Forming cylinder
Finished product from the wood briquette machine:
1.The size: diameter of outlet briquettes can be 50-80mm;
2.The shape: the outlet briquettes of woodbriquette machine can be round, square, hexigonal stick shape;
3. The features: the outlet briquettes are with high density, good appearance, small in size, etc.
Raw materials
The raw materials of the charcoal machine are various biomass materials, such as coconut shell, fruit shell, wood, waste wood and other wood materials can be used as solid fuel for making wood sticks.
Customer site
Our charcoal production lines are sold to various cities in China, and even more popular abroad. The above are the production sites of our equipment customers.
Packing&Shipping
We generally use the whole container for export, and use wooden case packaging when LCL. We have 20 years of delivery experience. If you buy from our factory, we can plan the pr
oduction place for you.
