Quick Details
-
Product name:
-
Tube End Forming Machine For Round Bar Or Steel Tube
-
Model:
-
DLX-51
-
Power:
-
4kw
-
Crimping outer diameter::
-
5-80mm
-
Speed::
-
1400R/MIN
-
Machine weight::
-
230KG
-
Scale accuracy::
-
0.02mm
-
Dimensions::
-
750*500*1000mm
-
Withholding speed::
-
3-5 s/time
-
Type:
-
Tube End Forming Machine For Round Bar Or Steel Tube
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DELEIXI
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Tube End Forming Machine For Round Bar Or Steel Tube
-
Model:
-
DLX-51
-
Power:
-
4kw
-
Crimping outer diameter::
-
5-80mm
-
Speed::
-
1400R/MIN
-
Machine weight::
-
230KG
-
Scale accuracy::
-
0.02mm
-
Dimensions::
-
750*500*1000mm
-
Withholding speed::
-
3-5 s/time
-
Type:
-
Tube End Forming Machine For Round Bar Or Steel Tube
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Product Description

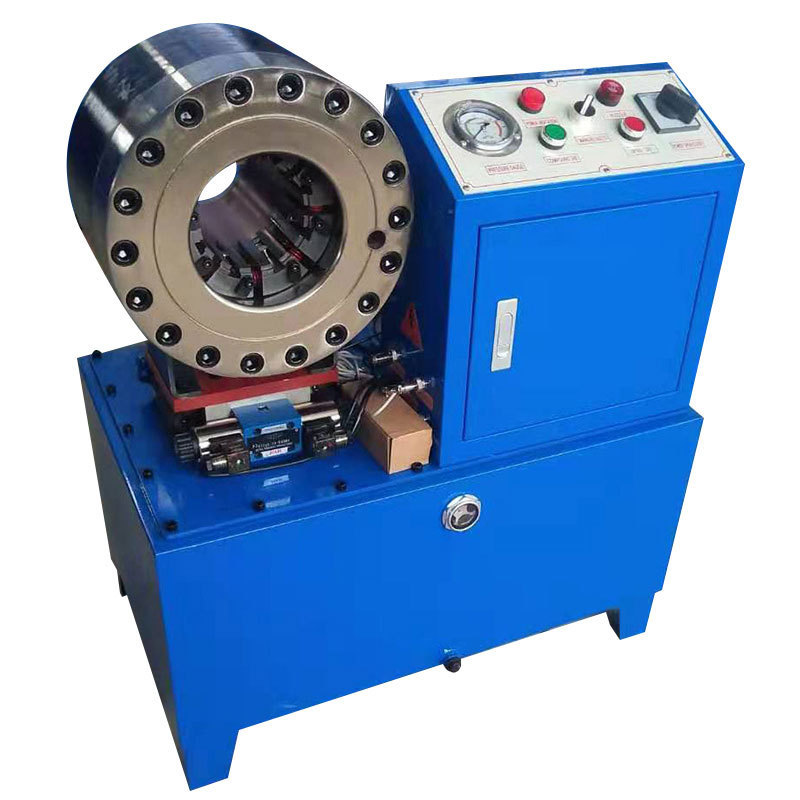

Professional automatic big opening size hose ferrule crimping machine
Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
| model: | DLX-51 |
| Voltage: | 380V 50Hz three-phase |
| Power: | 4kW (oil pump motor) |
| Crimping outer diameter: | 5-80mm (customizable) |
| Maximum buckle pressure: | 400T |
| Speed: | 1400R/MIN |
| Oil pump displacement: | 15ML/Rad |
| Machine weight: | 230KG |
| Scale accuracy: | 0.02mm |
| Rated pressure: | 25MPa |
| Withholding speed: | 3-5 s/time |
| Dimensions: | 750*500*1000mm |
Packaging & Shipping
Packing a nd Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
