Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soulin
-
Model Number:
-
RJ0093
-
Housing Material:
-
PBT(UL94V-0)
-
Contact Material:
-
Phosphor Bronze
-
Contact Plating:
-
Au Or Sn over Ni
-
Voltage Rating:
-
125 VAC RMS
-
Current Rating:
-
1.5 Amps
-
Insulation Resistance:
-
500MΩ Min
-
Contact Resistance:
-
30MΩ Max
-
Dielectric Withstanding Resistance:
-
1000V AC Rms 60HZ./Minute
-
Durability:
-
600 Cycles/Minute
-
Operation Temperature:
-
-40°C ~ +85°C
Quick Details
-
Type:
-
RJ45
-
Application:
-
PCB
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soulin
-
Model Number:
-
RJ0093
-
Housing Material:
-
PBT(UL94V-0)
-
Contact Material:
-
Phosphor Bronze
-
Contact Plating:
-
Au Or Sn over Ni
-
Voltage Rating:
-
125 VAC RMS
-
Current Rating:
-
1.5 Amps
-
Insulation Resistance:
-
500MΩ Min
-
Contact Resistance:
-
30MΩ Max
-
Dielectric Withstanding Resistance:
-
1000V AC Rms 60HZ./Minute
-
Durability:
-
600 Cycles/Minute
-
Operation Temperature:
-
-40°C ~ +85°C
|
Model Number
|

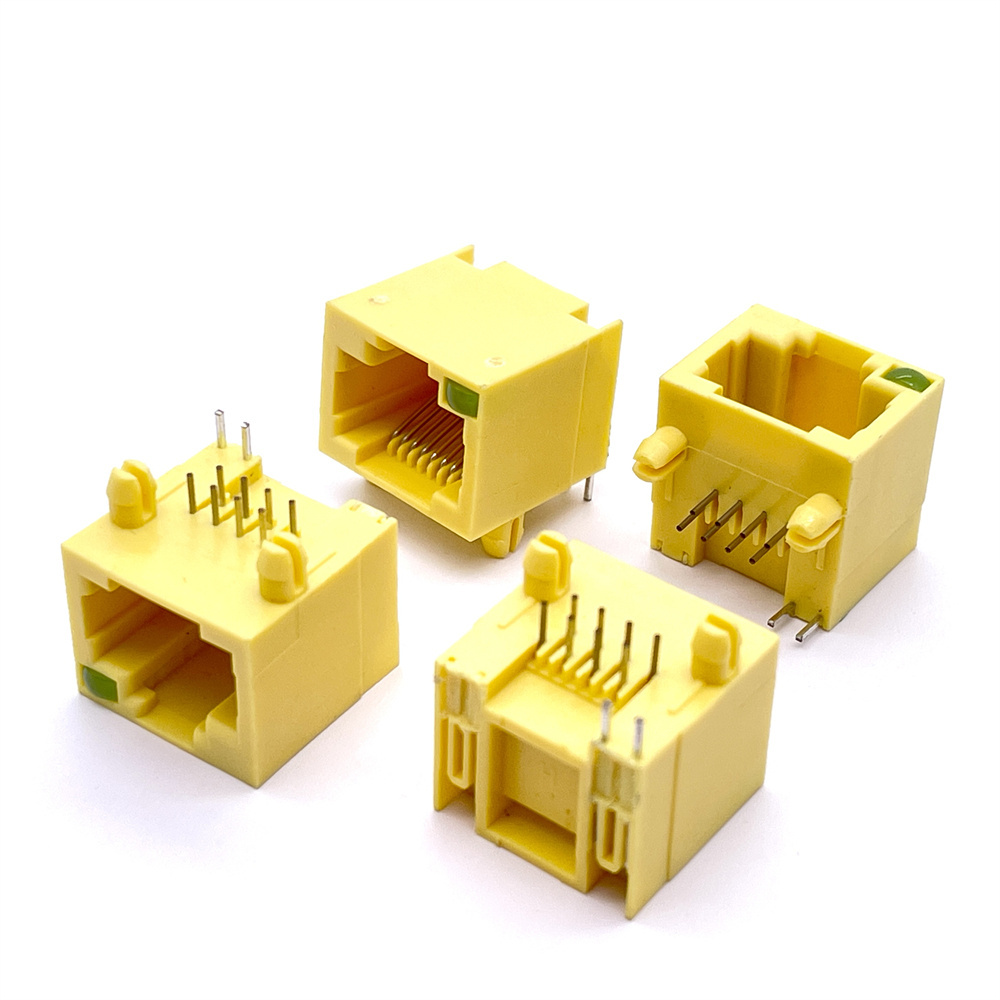

Plastic RJ45 Female Connector
|
|
|
|
|||
|
Housing Material
|
PBT(UL94V-0)
|
|
|
|
|||
|
Pin Number
|
1x1 Pin
|
|
|
|
|||
|
Contact Material
|
Phosphor Bronze
|
|
|
|
|||
|
Contact Plating
|
Au Or Sn over Ni
|
|
|
|
|||
|
Voltage Rating
|
125V AC Rms
|
|
|
|
|||
|
Current Rating
|
1.5 Amps
|
|
|
|
|||
|
Insulation Resistance
|
500MΩ Min
|
|
|
|
|||
|
Contact Resistance
|
30MΩ Max
|
|
|
|
|||
|
Dielectric Withstanding Resistance
|
1000V AC Rms 60HZ./Minute
|
|
|
|
|||
|
Durability
|
600 Cycles/Minute
|
|
|
|
|||
|
Operation Temperature
|
-40°C ~ +85°C
|
|
|
|
|||
Shenzhen Soulin Electronics Technology Co., Ltd
is a
"High-tech Enterprise"
which specializes in the manufacturing and marketing of Pin Header,Female Header,Box Header,Ejector Connector,SATA Connector,SATA Cable,Aviation Header Connector,RJ45,FPC Connector,LED Cable,Electronic Cable,Board to Board Connector,SCSI Connector,USB3.0,VGA.Since the establishment of the company,we have been and remain committed to becoming the industry leader for connectors.We have cultivated a group of professional and experienced staff in technology,production and management.In the meantime,we introduced advanced production and test equipment,developed new crafts and carry on the tradition of all-round quality management and environment protection management.
