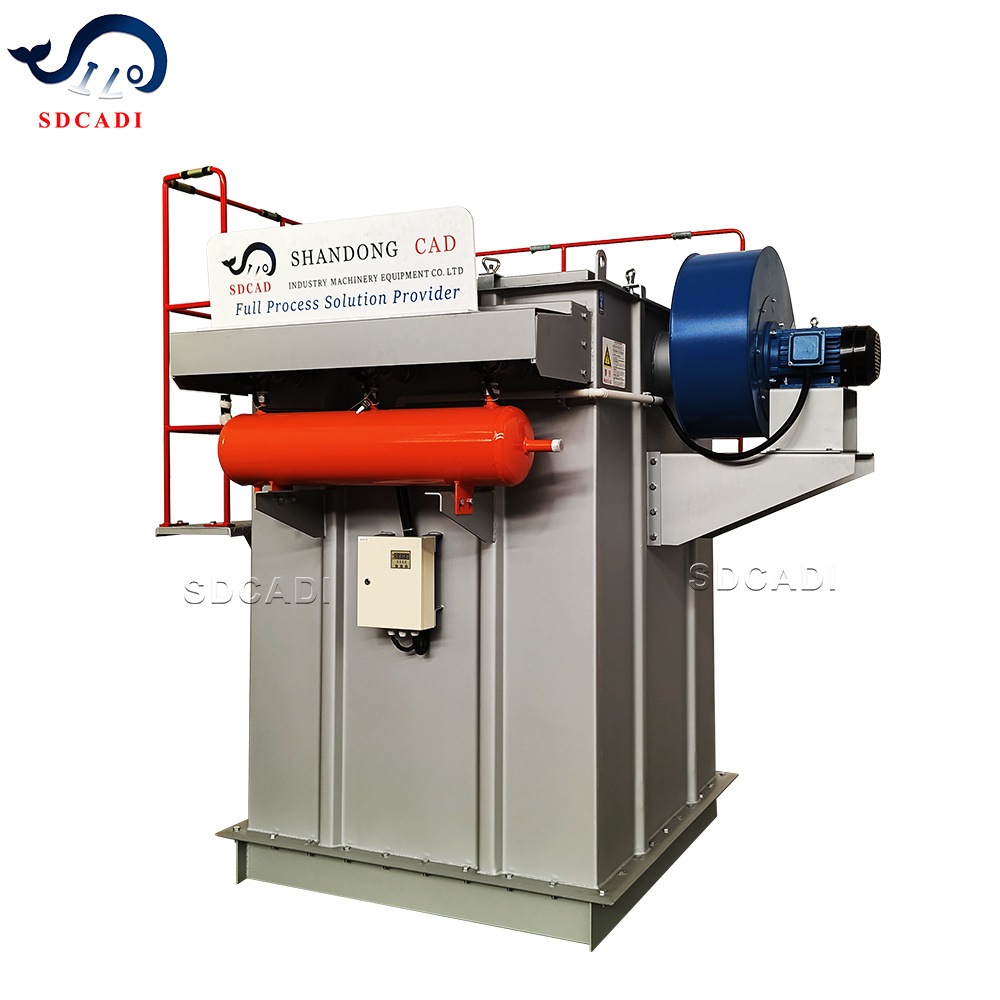

SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector
SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector

SDCAD Concrete Batching Plant Silo Top silotop Filter Cartridges Industrial Dust Collector

FOB Reference Price: Get Latest Price
≥1 Sets
US $1520
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
SDCADI
Dimension(L*W*H):
optional
Weight:
4500 kg
Application:
Industrial Dust Removal
Usage:
Clean Dust Air
After-sales Service Provided:
Field Maintenance
Material:
Carbon Steel/stainless steel
AIr Volume:
3150-4500m3/h
After Warranty Service:
core 2 year
Structure:
Square
Voltage:
Client's Country Voltage
Certification:
CE, ISO9001
Efficiency:
99.95%@2um

Quick Details

Warranty of core components:
2 Year
Minimum Particle Size:
0.2mm
Place of Origin:
Shandong, China
Brand Name:
SDCADI
Dimension(L*W*H):
optional
Weight:
4500 kg
Application:
Industrial Dust Removal
Usage:
Clean Dust Air
After-sales Service Provided:
Field Maintenance
Material:
Carbon Steel/stainless steel
AIr Volume:
3150-4500m3/h
After Warranty Service:
core 2 year
Structure:
Square
Voltage:
Client's Country Voltage
Certification:
CE, ISO9001
Efficiency:
99.95%@2um
Product Overview

Industry Duct Collector

Pulse-jet bag filter, also known as pulse jet baghouse, is a new type of pulse jet dust collector which is improved from the original bag filter. It improves the shortcomings of insufficient ash cleaning strength and uneven air inlet and outlet. By spraying compressed air, the dust attached to the filter medium is removed.
It is very important to control the speed of the flue gas passing through the filter material (called the filter speed) during the operation of the pulse bag filter. Generally, the filtration speed is 0.5-2m/min . For particles larger than 0.1µm , the efficiency can reach more than 99.9% , and the equipment resistance loss is about 980-1470Pa.

FEATURES AT A GLANCE
High dust removal efficiency (99.9% or higher)
Air volume: 400-322560m³/min
Filter bag quantity: 96-3584 units
Application: building materials, cement, metallurgy, machinery, chemical, and refractory industry
Customized Solution is the Core concepts of SDCADI
Pulse Dust Collector
Dust collector with fan
Cyclone Dust Collector

Simple selection guide of pulse jet bag filter

1. According to the actual situation of the working field, the system can be flexibly designed with high efficiency and uniform ash cleaning system online or offline to overcome the shortcomings of different modes of deashing.
2. According to process requirements and system pressure, select high or low pressure, on-line or off-line pulse ash cleaning. The service life of the pulse valve is generally more than 5 years, the filter bag is more than 2 years.
3. Low operating cost, compressed gas energy injection drainage, to ensure the dust removal pressure at the bottom of the filter bag.
PRODUCT SPECIFICATIONS
Item
Marked Symbol
Description
External Form
RF
Round Filter
Diameter
1
400mm
2
600mm
3
800mm
4
1000mm
Cleaning Way
J
Pulse air-jet cleaning continuous working
V
Vibration cleaning intermittent working way
Filtration area
3-44
3-44m2
Filter
A
Cylinder type polyester filter core
B
Cylinder type filter bag
Air Silo Venting
Filter Type
Filtration area m2
Diameter mm
Height mm
RF1J05A
Folding
5
400
1805
RF2J13A
Folding
13
600
1805
RF3J24A
Folding
22
800
1860
RF4J47A
Folding
45
1000
1994
RF1J01B
Round bag type
1
400
1805
RF1J02B
Round bag type
2
400
2725
RF2J03B
Round bag type
3
600
1805
RF2J06B
Round bag type
6
600
2725
RF3J06B
Round bag type
6
800
1860
RF3J11B
Round bag type
11
800
2796
RF4J11B
Round bag type
11
1000
1994
RF4J21B
Round bag type
21
1000
1930
Model/ Rectangular
WGM-16
WGM-24
WGM-36
WGM-48
WGM-56
WGM-64
Filtration area m2
10
15
24
30
40
50
filter qty( unit)
16
24
36
48
56
64
Height of filter m
1.5
1.5
1.5
1.5
1.5
1.5
Array
4*4
4*6
6*6
6*8
7*8
8*8
Wind capacity m3/h
1000-1500
1500-2500
2500-3500
3500-4500
4500-5500
5500-6500
Fan power KW
1.5
1.5
2.2
3
4
5.5
Product Configuration

Working principle

There may be several sets of pulse valves according to the size of the dust collector, controlled by the pulse control instrument or PLC, when you start to use pulse jet baghouse, open a set of pulse valves to remove the dust of the part of the bag or filter cartridge controlled by itself, and other bags or filter cartridge work normally, after a period of time the next set of pulse valves open, clean the next part.
Product Show

Advantages of pulse-jet bag filter

Good sealing effect: pulse jet baghouse adopts advanced sealing measures, air leakage coefficient is less than 2%. It has a unique and effective way to remove dust and prolong the service life of the filter bag.
Wide range of applications: the use of new-type filtrating material, reliable flue gas temperature tracking system, can apply for various flue gas conditions.
High dust removal efficiency: the dust removal efficiency of pulse-jet bag filter can reach above 99.9, dust emission can be controlled below 30mg/Nm3, and it can handle high concentration dust below 100g/Nm3.
Stable operation and simple maintenance: the key parts of the pulse jet baghouse are reliable in quality and highly automated.The pulse jet baghouse uses high-temperature flue gas to blowback and effectively prevent dew-forming and bag-pasting.
Advanced structure: gas box structure reduces local resistance and eliminates the inconvenience of installing filter bag.
Packaging & Shipping
Successful Project
Project in Australia
Project in New Zealand
Project in Germany
Dust collector with fan
Pulse Dust Collector
Galvanized sheet dust collector
SALES AND SERVICE NETWORK
FAQ
Are you a manufacturer or Trader?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the
deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
What is your MOQ?
1Sets
