Quick Details
-
Brand Name:
-
Huan
-
Year:
-
Customized
-
Voltage:
-
380V/50HZ/Customized
-
Dimension(L*W*H):
-
2.8x1.8x2.3m
-
Hollow part volume:
-
2.5L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
40 mm
-
Screw Heating Power(kW):
-
8.5 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
328 mm
-
Mold Platen Size(Height)(mm):
-
420 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.3 m³/min
-
Die Head Heating Power(kW):
-
5.7 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
12.5
-
Weight (T):
-
3
-
Model Number:
-
HDPE fuel oil tank extrusion blow molding machine
-
Power(W):
-
12.5KW
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Material:
-
pe/pvc/pp/abs
-
Machine type:
-
Extrusion blow moulding machine
-
Range:
-
0-2.5L plastic bottle
-
Production:
-
hdpe extrusion blow molding machine
-
Rotary Cylinder Brand:
-
Customized
-
High Pressure Valve Brand:
-
Customized
-
After-sales Service Provided:
-
Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
-
After Warranty Service:
-
Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
Quick Details
-
Clamping Force (kN):
-
35
-
Output (kg/h):
-
35 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huan
-
Year:
-
Customized
-
Voltage:
-
380V/50HZ/Customized
-
Dimension(L*W*H):
-
2.8x1.8x2.3m
-
Hollow part volume:
-
2.5L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
40 mm
-
Screw Heating Power(kW):
-
8.5 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
328 mm
-
Mold Platen Size(Height)(mm):
-
420 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.3 m³/min
-
Die Head Heating Power(kW):
-
5.7 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
12.5
-
Weight (T):
-
3
-
Model Number:
-
HDPE fuel oil tank extrusion blow molding machine
-
Power(W):
-
12.5KW
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Material:
-
pe/pvc/pp/abs
-
Machine type:
-
Extrusion blow moulding machine
-
Range:
-
0-2.5L plastic bottle
-
Production:
-
hdpe extrusion blow molding machine
-
Rotary Cylinder Brand:
-
Customized
-
High Pressure Valve Brand:
-
Customized
-
After-sales Service Provided:
-
Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
-
After Warranty Service:
-
Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
CE ISO

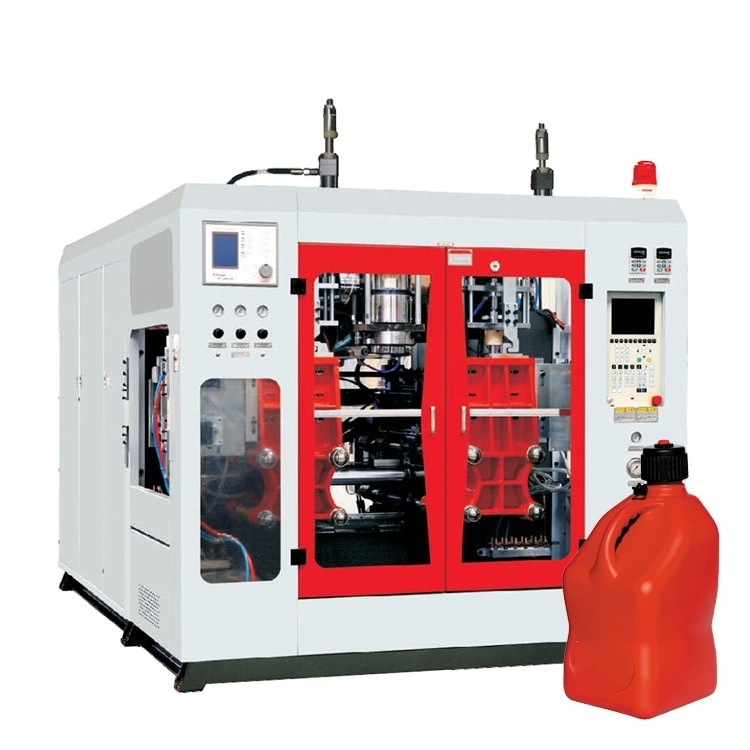

3L 5L 10L 1 2 gallon PE HDPE plastic drum gas oil container chemical jerry can blowing making extrusion blow molding machine
It is 5L single station/double station machine for producing HDPE, PP, PVC max. 5L plastic products, like 500ml bottle, 1000ml jerrycan, small container, motor oil drum or engine oil drum, and plastic jar. Besides, it could choose different continuous heads based on actual plastic products. Usually single head is for 3-5L, double head (160mm central distance) is for about 2L, 1L bottle, triple head is for 500ml bottles, four head is for small bottle. Quick extrusion, stable running, easy operation and mature technology.
Whole production line for extrusion blow molding machine
|
N AME |
SUPPLIER |
|
Microcomputer Control System |
MITSUBISHI PLC / JAPAN |
|
Touch Screen |
WEINVIEW / TAIWAN |
|
Temperature Controller |
MITSUBISHI, / JAPAN |
|
SSR |
OMRON / JAPAN |
|
Air Switch |
SCHNEIDER / GERMANY |
|
Motor |
SIMENS BEIDE Asynchronous Motor / GERMANY |
|
Power Resource |
MEAN WELL / TAIWAN |
|
Inverter |
DELTA / TAIWAN |
|
Oil Pump |
YUKEN / JAPAN |
|
Valve |
YUKEN / JAPAN |
|
Sealer |
Top DZ / E UROPEAN |
