Optical Filters are used to selectively transmit or reject a wavelength or range of wavelengths. Optical Filters are used in applications such as fluorescence microscopy, spectroscopy, clinical chemistry, or machine vision inspection. Optical Filters are ideal for life science, imaging, industrial, or defense industries. CCJC Optics offers a variety of Optical Filters for many applications, including bandpass interference, notch, edge, dichroic, color substrate, or ND. CCJC Optics also offers highly durable hard coatings for applications that require high optical densities with maximum performance.
- Product Details
- {{item.text}}
Quick Details
-
Dimension:
-
1.0mm-200.0 mm
-
Surface quality:
-
40-20
-
Dimension Tolerance:
-
+0.0/-0.1mm
-
Thickness Tolerance:
-
±0.1mm
-
Surface Accuracy:
-
1/4
-
Clear Aperture:
-
>90%
-
Bevelling:
-
<0.2x45°
-
Use:
-
Optical Instruments
Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
CCJC
-
Model Number:
-
JC05-0013
-
Dimension:
-
1.0mm-200.0 mm
-
Surface quality:
-
40-20
-
Dimension Tolerance:
-
+0.0/-0.1mm
-
Thickness Tolerance:
-
±0.1mm
-
Surface Accuracy:
-
1/4
-
Clear Aperture:
-
>90%
-
Bevelling:
-
<0.2x45°
-
Use:
-
Optical Instruments
Product Description

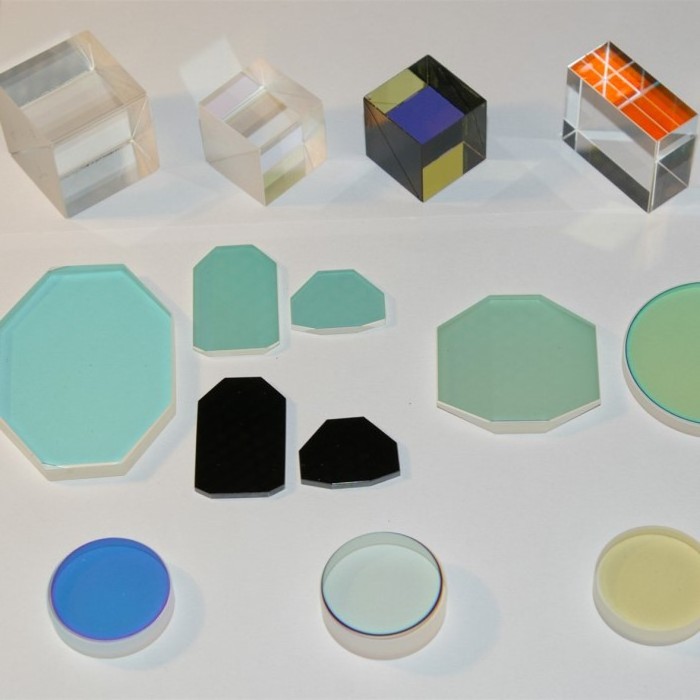

Optical Glass Filter
720nm 760nm 850nm 950nm infrared filter short narrow bandpass filter
Optical Filters are used to selectively transmit or reject a wavelength or range of wavelengths. Optical Filters are used in applications such as fluorescence microscopy, spectroscopy, clinical chemistry, or machine vision inspection. Optical Filters are ideal for life science, imaging, industrial, or defense industries. Juncheng Optics offers a variety of Optical Filters for many applications, including bandpass interference, notch, edge, dichroic, color substrate, or ND. Juncheng Optics also offers highly durable hard coatings for applications that require high optical densities with maximum performance. We have lots of filters in stock: nd Pass Filters, Fluorescence Filter, UV/IR Pass Filters, Long/Short Pass Filters, Beam Splitter, Dichroic Mirror, Hot/Cold Mirror, ND Filter and other optical filters
Spec
Materials:Hard Coating
Work Wavelength Range:200-1200nm
FWHM:8+/-2nm
Peak Transmittance:20%-90% (depends on analyzer)
Background:T≤10-510-6
Common size: diameter 10mm, 12mm,12,7mm,15mm
Clear Aperture:diameter 6mm, 8mm, 8mm, 11mm
Wavelength:340,365,405,420,450,492,510,546,578,589,590,600,620,630,670,700nm and so on
|
Item Name
|
Optical Filter
|
|
|
|
Material
|
optical glass
|
Design Wavelength
|
according to demand
|
|
Dimension
|
1mm-500mm
|
Surface quality
|
40-20 or better
|
|
Dimension tolerance
|
+/-0.02mm
|
FWHM
|
5nm-60nm
|
|
Thickness tolerance
|
+/-0.02mm
|
Block
|
OD4
|
|
Coating
|
240nm-4000nm
|
|
|
Our Service
Optical Design
There are eight professors in our scientific research team. All of them come from Chinese Academy of Sciences, Changchun Institute of Precision Machinery and Physics. We can supply design Optical System according to your demand.
Processing & Testing
We have more than50 advanced milling grinding, polishing, plating equipments from The Unite States and Japan. And also introduced the ZYGO horizontal laser interferometer, AK100 horizontal laser interferometer, LAMBDA950 spectrophotometer, the focal length meter and other test equipments.
Optical Coating
We are coat from 0.2um to 20um. Including AR coating, high reflect film, the splitting film, laser crystal film, IR film, UV film and Optical fiber film etc. Especially in the laser, the frequency doubling crystal, IR crystal, and UV band coating we have huge advantage.
