Quick Details
-
Brand Name:
-
DEFU, DEFU
-
Model Number:
-
KCB/ZCY
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1.5kw-37kw
-
Cable Length:
-
Gear pump
-
Outlet Size:
-
3/4inch-6inch
-
Power:
-
1.5kw-37kw, Electric
-
Usage:
-
Oil
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel, cast iron etc
-
Color:
-
Blue, green etc
-
Type:
-
Gear oil pump
-
Warranty:
-
One Year for the pump, three months for the spare parts
-
Fuel:
-
Electric
Quick Details
-
Application:
-
Industrial Utilities, Water Distribution
-
Pressure:
-
Max.1.45Mpa
-
Voltage:
-
Standard 380V or Customized
-
Brand Name:
-
DEFU, DEFU
-
Model Number:
-
KCB/ZCY
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1.5kw-37kw
-
Cable Length:
-
Gear pump
-
Outlet Size:
-
3/4inch-6inch
-
Power:
-
1.5kw-37kw, Electric
-
Usage:
-
Oil
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel, cast iron etc
-
Color:
-
Blue, green etc
-
Type:
-
Gear oil pump
-
Warranty:
-
One Year for the pump, three months for the spare parts
-
Fuel:
-
Electric
KCB Gear Oil Pump
1.Specifications
-KCB type pump with a safety valve can prevent overloading
-Applied under 250 degree selsius
-Competitve price
-Pressure0.6MPa
2.Use
(1) The pump can transport various oil, such as crude oil, diesel oil and lubricating oil;
(2) The pump with bronze impeller can transport liquid with low flash point such as gasolene and benzene etc;
(3) Pump with stainless steel can transport beverage and corrosive liquid.
(4) The temperature of medium can not be higher than 70 degrees Celsius.
(5) anti high temperature gear oil pump can transport the liquids with no more than 300 degrees celsius and viscosity of 5*10-5---1.5*10-3m2/s.
(6) The pump is not suitable for hard solid or fibre.
3.the scope of application
Applicable to non-delivery of solid particles and fibers, non-corrosive high-temperature liquids, medium temperature up to 250 ° C, the viscosity for the 5-1500cst.
4.Parameter as below
|
Model
|
Caliber |
Flow |
Pressure |
Suction Lift |
Motor power |
|
(inch) |
(L/min ) |
(MPa ) |
(m ) |
(KW ) |
|
|
KCB-18.3 (2CY-1.1/14.5-2) |
3/4" |
18.3 |
1.45 |
5 |
1.5 |
|
KCB-33.3 (2CY-2/14.5-2) |
3/4" |
33.3 |
1.45 |
5 |
2.2 |
|
KCB-55 (2CY-3.3/3.3-2) |
1″ |
55 |
0.33 |
5 |
1.5 |
|
KCB-83.3 (2CY-5/3.3-2) |
1 1/2″ |
83.3 |
0.33 |
5 |
2.2 |
|
KCB-133.3 (2CY-8/3-2) |
2″ |
133.3 |
0.33 |
5 |
4 |
|
KCB-200 (2CY-12/3.3-2) |
2″ |
200 |
0.33 |
5 |
4 |
|
KCB-200 (2CY-12/6-2) |
2″ |
200 |
0.6 |
5 |
5.5 |
|
KCB-200 (2CY-12/10-2) |
2″ |
200 |
1.0 |
5 |
7.5 |
|
KCB-200 (2CY-18/6-2) |
3″ |
300 |
0.36 |
5 |
5.5 |
|
KCB-483.3 (2CY-29/3-2) |
3″ |
483.3 |
0.36 |
5 |
7.5 |

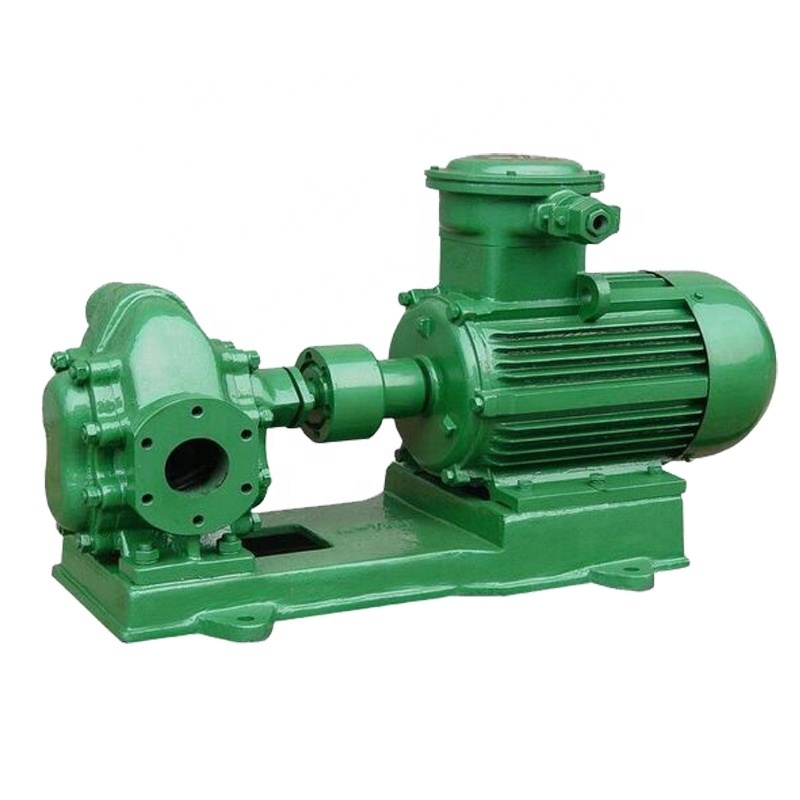

5.Product pictures
