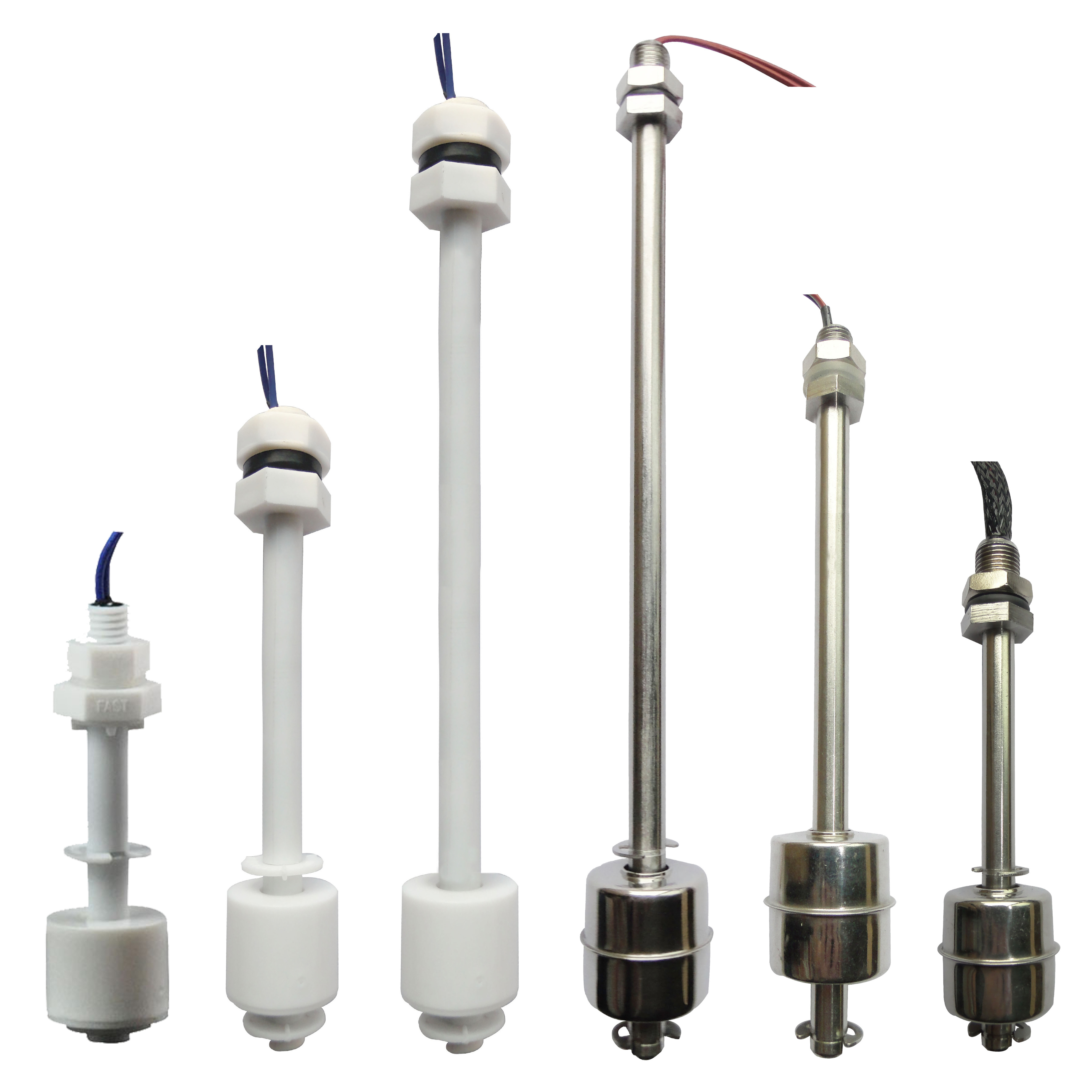

Quick Details
-
Mounting Type:
-
Top Mount
-
Description:
-
Detecting Liquid Level for high Level or Low level
-
Manufacturing Date Code:
-
By Actual Production Date
-
Model Number:
-
FAST-70LP~400LPP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Theory:
-
Magnetic Reed Contact
-
Output:
-
Switching Signal ON/OFF
-
Materials:
-
Plastic PP/Stainless Steel SUS304/316
-
Rod Length:
-
25~700mm
-
Length:
-
Vertical M8/M10/M12
-
Switching Type:
-
NO/NC
-
Liquid Level/Float Ball Number:
-
1/2/3/4 float balls
-
Switched Power:
-
10 / 70W
-
Switched Vdc/Vac:
-
(200/140) / (200/250)
-
Switched Current:
-
0.5 / 1.0A
-
Temp. Range:
-
-40 ~ +125°C
-
Other Options:
-
wires length, terminals and customization as your drawing
Quick Details
-
Usage:
-
Detecting Liquid Level in Water Tank
-
Series:
-
Float Switch/Liquid Level Sensor
-
Features:
-
Detecting Liquid Levels
-
Mounting Type:
-
Top Mount
-
Description:
-
Detecting Liquid Level for high Level or Low level
-
Manufacturing Date Code:
-
By Actual Production Date
-
Model Number:
-
FAST-70LP~400LPP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Theory:
-
Magnetic Reed Contact
-
Output:
-
Switching Signal ON/OFF
-
Materials:
-
Plastic PP/Stainless Steel SUS304/316
-
Rod Length:
-
25~700mm
-
Length:
-
Vertical M8/M10/M12
-
Switching Type:
-
NO/NC
-
Liquid Level/Float Ball Number:
-
1/2/3/4 float balls
-
Switched Power:
-
10 / 70W
-
Switched Vdc/Vac:
-
(200/140) / (200/250)
-
Switched Current:
-
0.5 / 1.0A
-
Temp. Range:
-
-40 ~ +125°C
-
Other Options:
-
wires length, terminals and customization as your drawing
Why Choose Us
We are switch and sensor manufacturing factory for 20 years.
We specialize in high quality switches and sensors.
Our professional technique can solve your problems.
-----------------------------------------------------
Shenzhen Fast Sensor Co., Ltd
Tel.: +86 755 3393 6919 Fax: +86 755 3393 6682
Contact: Sophy DENG Wechat/WhatsApp: +86 134 8061 4936
E-mail: sophy@faster.hk
http://www.szfast.com
We specialize in high quality switches and sensors.
Our professional technique can solve your problems.
-----------------------------------------------------
Shenzhen Fast Sensor Co., Ltd
Tel.: +86 755 3393 6919 Fax: +86 755 3393 6682
Contact: Sophy DENG Wechat/WhatsApp: +86 134 8061 4936
E-mail: sophy@faster.hk
http://www.szfast.com
All Products
|
Glass Reed Switch
↓↓↓
|
Plastic Housed Reed Switch
↓↓↓
|
Reed Relay
↓↓↓
|
|
Reed Proximity Switch
↓↓↓
|
Metal Door Sensor
↓↓↓
|
Hall Proximity Sensor
↓↓↓
|
|
Flow Switch
↓↓↓
|
Turbine Flow Meter Sensor
↓↓↓
|
Liquid Level Float Switch
↓↓↓
|
|
Optical Level Sensor
↓↓↓
|
Water Leak Sensor
↓↓↓
|
Tilt Switch
↓↓↓
|
Recommend Products
Product Description
Option 1-Low power ↓↓↓
Max. switch power: 10W
Max. switching voltage: 180Vdc / 140Vac
Max. switch current: 0.5A
Max. carry current: 0.5A
Min. breakdown voltage: 250V
Max.Contact Resistance: 150mΩ
Max. switch power: 10W
Max. switching voltage: 180Vdc / 140Vac
Max. switch current: 0.5A
Max. carry current: 0.5A
Min. breakdown voltage: 250V
Max.Contact Resistance: 150mΩ
Option 2-High power ↓↓↓
Max. switch power: 70W
Max. switching voltage: 200Vdc / 250Vac
Max. switch current: 0.5A
Max. carry current: 1.0A
Min. breakdown voltage: 400V
Max.Contact Resistance: 90mΩ
Max. switch power: 70W
Max. switching voltage: 200Vdc / 250Vac
Max. switch current: 0.5A
Max. carry current: 1.0A
Min. breakdown voltage: 400V
Max.Contact Resistance: 90mΩ
Option 3 ↓↓↓
Packing & Delivery
300PCS/CARTON
