Quick Details
-
Weight (T):
-
5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
CNC or not:
-
CNC
-
Name:
-
punch press J23-25T
-
Product name:
-
power press machine
-
power:
-
2.2kw 7.5 KW
-
Application:
-
Metal Sheet Stamping
-
Keyword:
-
Mechanical Metal Punching Machine
-
Nominal pressure:
-
630 KN
-
Function:
-
Steel Metal Punching
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MC
-
Voltage:
-
110/220, 380V /220V
-
Weight (T):
-
5
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
CNC or not:
-
CNC
-
Name:
-
punch press J23-25T
-
Product name:
-
power press machine
-
power:
-
2.2kw 7.5 KW
-
Application:
-
Metal Sheet Stamping
-
Keyword:
-
Mechanical Metal Punching Machine
-
Nominal pressure:
-
630 KN
-
Function:
-
Steel Metal Punching
Contacts: Lucy
Tel: +86-411-82766928
Fax: +86-411-39015062
Email: elva@mingchenggroup.com
Mob/Whatsapp: +86 156 9411 2636
Products Description

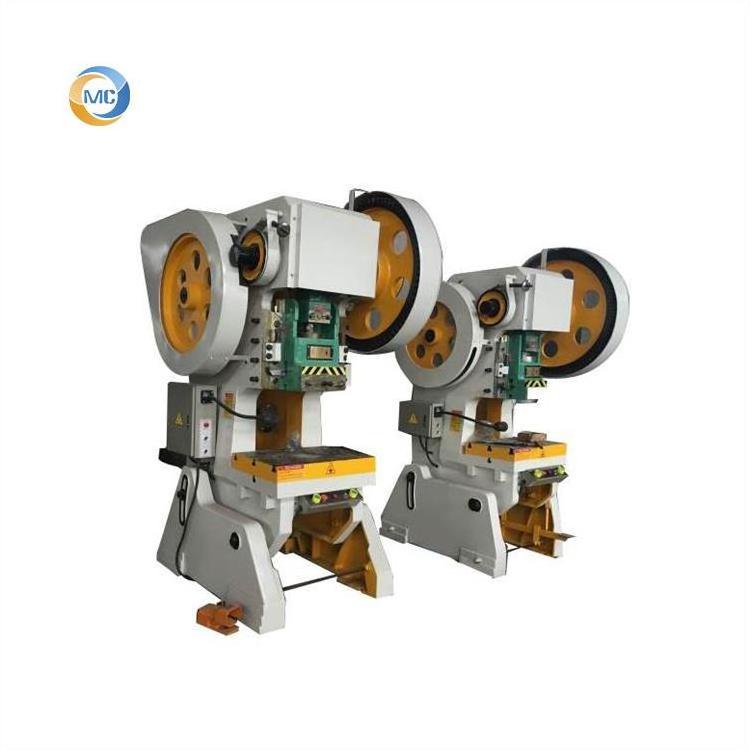

Flywheel punch iso hydraulic punch press with amada tools
Power press machine suitable for blanking, punching, forming, bending, stretching and other cold stamping process to
achieve. Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacture and other industrial areas.
Flywheel punch iso hydraulic punch press with amada tools
Features
1. Steel plate welding machine, good rigidity, more stable accuracy.
2. Crankshaft longitudinal, compact structure, beautiful appearance.
3. Electric adjustment of the height of the mould, digital display control height.
4. Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5. Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6. Collapse type safety device, to ensure the safety of the whole machine.
7. Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8. The slider can be moved with a small movement, emergency stop motion, more secure operation.
9. The circuit uses double valve control, the action is nimble, accord with the safety standard of press.
Machine Part
Name: Machine Body
Brand: MC
Original: China
Name: Machine Body
Brand: MC
Original: China
Use rod tightening combination frame structure, with sufficient strength and rigidity;The slider uses rail guide; machine and slider are welded steel, the material is Q235-A, using carbon dioxide gas shielded arc welding, the weld should be ground smooth, no weld slag and streaming scars, remove inner stress after weld.
Machine Part
Name: Oil Cylinder
Brand: MC
Original: China
Solo cylinder structure which is disposed on the upper beam hole, cylinder block uses 45 # forged steel.
Plunger rod surface hardening hardness is HRC45-50. The cylinder finishing by high-precision machine tools, cylinder bore after refining process to increase surface hardness and wear resistance.
Machine Part
Name: Bliwing Cylinder
Brand: MC
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Machine Part
Name: Oil Cylinder
Brand: MC
Original: China
Solo cylinder structure which is disposed on the upper beam hole, cylinder block uses 45 # forged steel.
Plunger rod surface hardening hardness is HRC45-50. The cylinder finishing by high-precision machine tools, cylinder bore after refining process to increase surface hardness and wear resistance.
Punches can be made into finished products
Product Paramenters
|
SPECIFICATIONS FOR OPEN-TYPE TILTING POWER PRESS MACHINE
|
|
|
|
|||
|
J23-10T
J23-80T |
Nominal Pressure
|
Min. 100 KN
|
Max. 800 KN
|
|||
|
|
Nominal Pressure Stroke
|
Min. 4 mm
|
Max. 8 mm
|
|||
|
|
Slipper Stroke Times
|
Min. 50 t/min
|
Max. 130 t/min
|
|||
|
J21-100T J21S-125T |
Nominal Pressure
|
Min. 100KN
|
Max. 1250 KN
|
|||
|
|
Nominal Pressure Stroke
|
Min. 4 mm
|
Max. 10 mm
|
|||
|
|
Slipper Stroke Times
|
Min. 45 t/min
|
Max. 130 t/min
|
|||
|
Diameter of Blank-holding hole |
Front and Back
|
Min. 100 mm
|
Max. 260 mm
|
|||
|
|
Left and Right
|
Min. 180 mm
|
Max. 400 mm
|
|||
|
|
Diameter
|
Min. 95 mm
|
Max. 210 mm
|
|||
