Quick Details
-
Measuring range:
-
0-1250 μm
-
Power supply:
-
2 * AA batteries
-
Ambient temperature:
-
0-40 ℃
-
Relative humidity:
-
≤85%
-
Minimum substrate:
-
10 * 10mm
-
Minimum curvature:
-
5mm convex; 5mm concave
-
Thinnest substrate:
-
0.4mm
-
Weight:
-
99g (with battery)
-
Size:
-
102mm * 66mm * 24mm
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Portable Paint Film Coating Thickness Gauge Meter Film Thickness Meter
-
Measuring range:
-
0-1250 μm
-
Power supply:
-
2 * AA batteries
-
Ambient temperature:
-
0-40 ℃
-
Relative humidity:
-
≤85%
-
Minimum substrate:
-
10 * 10mm
-
Minimum curvature:
-
5mm convex; 5mm concave
-
Thinnest substrate:
-
0.4mm
-
Weight:
-
99g (with battery)
-
Size:
-
102mm * 66mm * 24mm

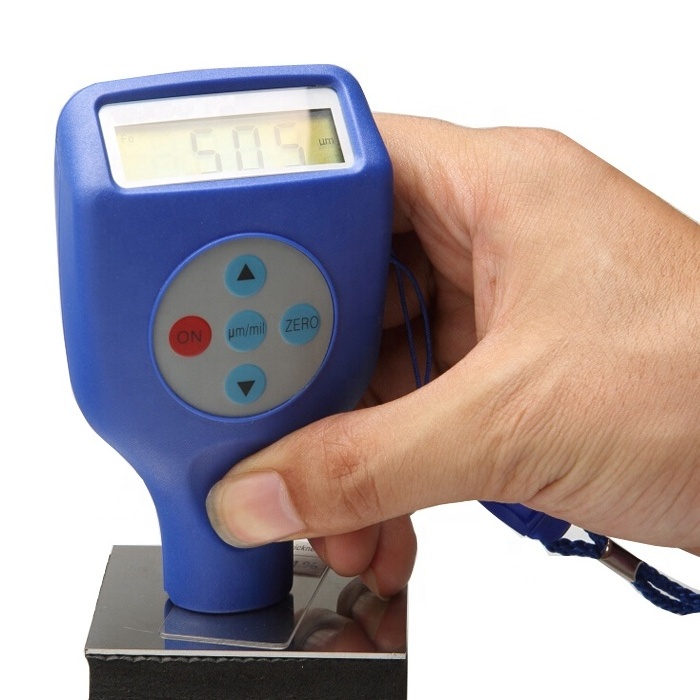

Portable Paint Film Coating Thickness Gauge Meter Film Thickness Meter Equipment Painting Thickness Tester
Description:
This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for material protection major.
This device meets the following criteria:
GB/T 4956 - 1985 non-magnetic coating thickness measurement on magnetic metal substrate, Magnetic Method
JJG 889 - 95 "Reluctance thickness "
Features:
1. Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.
2. Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
3. Power voltage indicator.
4. Speaker beep while operating.
5. Power-off automatically when idle; manually power-off available.
6. Negative display function to ensure the accuracy of zero point calibration.
7. Ultra-low power consumption, less than 10 μA in standby mode.
Technical Parameters:
|
Measuring range: |
0-1250 μm |
|
Power supply: |
2 * AA batteries |
|
Measurement deviation: |
zero calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5 |
|
Ambient temperature: |
0-40 ℃ |
|
Relative humidity: |
≤85% |
|
Minimum substrate: |
10 * 10mm |
|
Minimum curvature: |
5mm convex; 5mm concave |
|
Thinnest substrate: |
0.4mm |
|
Weight: |
99g (with battery) |
|
Size: |
102mm * 66mm * 24mm |
Item Checklist:
|
Name |
Quantity |
|
Meter device |
1 |
|
Standard films |
5 |
|
Base substrate |
1 |
|
Packing box |
1 |
|
User Manual |
1 |
Services:
This instrument has one-year quality guarantee, maintenance for all life. If there are any problem of this product, please contact the dealer in time.
Each set protected with strong carton case with English operation manual. It would be best to be delivered by Courier Ecpress because of small weight and packing size.
Customer: What about the transportation?
Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.
Customer: What about the after-sale service?
Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.
Customer: What about the delivery date?
Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.
