Quick Details
-
Model Number:
-
RK1-23
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000cycles
-
Color:
-
Black,red,grey,yellow etc. optional
-
Operating temperature:
-
-25℃~85℃
-
Function:
-
SPST or SPDT
-
Push button material:
-
PC
-
Circuit function:
-
on-on/on-off with lamp or without lamp
-
Electrical life:
-
10000 cycles
-
Certificate:
-
CQC TUV UL VDE ENEC KEMA KTL
-
Rating:
-
250VAC 16A or 125VAC 16A
-
Housing material:
-
PA66(nylon 66)
-
Pad printing:
-
"O-","ON OFF" etc.optional
-
Certification:
-
UL VDE TUV CB ENEC KEMA
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
RK1-23
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000cycles
-
Color:
-
Black,red,grey,yellow etc. optional
-
Operating temperature:
-
-25℃~85℃
-
Function:
-
SPST or SPDT
-
Push button material:
-
PC
-
Circuit function:
-
on-on/on-off with lamp or without lamp
-
Electrical life:
-
10000 cycles
-
Certificate:
-
CQC TUV UL VDE ENEC KEMA KTL
-
Rating:
-
250VAC 16A or 125VAC 16A
-
Housing material:
-
PA66(nylon 66)
-
Pad printing:
-
"O-","ON OFF" etc.optional
-
Certification:
-
UL VDE TUV CB ENEC KEMA
Recommend Products
Exhibition

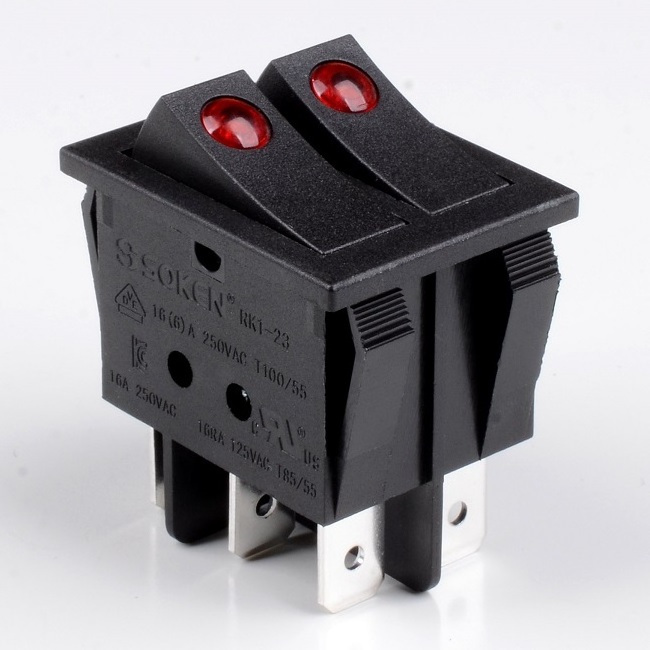

rocker switches master soken spst spdt rocker switch t85 rk1-23 outlets
|
Model
|
RK1-23
|
|
Function
|
ON OFF /4pin (01)
ON ON /6pin (08) ON OFF with lamp /6pin (04) |
Products Description
|
Rating
|
250VAC 16A T100/55
|
|
Contact Resistance
|
100MΩ Max
|
|
Dielectric Strength
|
1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
|
|
Operating Temperature
|
-25~85°C
|
|
Insulated Resistance
|
500VDC, 100MΩ Min
|
|
Electrical Life
|
≥10,000 cycles
|
|
Pins (Terminals)
|
6 pins
|
|
Housing Material
|
PA666
|
|
Button Material
|
PC
|
|
Base plastic
|
Nylon 66
|
|
Button plastic
|
PC
|
|
Copper parts such as terminal
|
Copper
|
|
Terminal surface treatment
|
Silver plating
|
|
Contact
|
Ag or Composite silver
|
|
Spring
|
Steel Wire
|
|
Waterproof Material
|
PVC
|
