Parameters of ZLP
Series Hanging Scaffolding
|
|
|
|
|||
|
Type
|
ZLP500
|
ZLP630
|
ZLP800
|
|||
|
1. Rated Load
|
500kg
|
630kg
|
800kg
|
|||
|
2. Lifting speed
|
9.3m/min
|
9.3m/min
|
9.3m/min
|
|||
|
3. Lifting height
|
100m
|
100m
|
100m
|
|||
|
4. Hoist
|
LTD6.3
|
LTD6.3
|
LTD8.0
|
|||
|
4.1 Voltage-3 Phase
|
380V(415V/220V)
|
380V(415V/220V)
|
380V(415V/220V)
|
|||
|
4.2 Frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|||
|
4.3 Power
|
1.5kwx2
|
1.5kwx2
|
1.8kwx2
|
|||
|
5. Safety Lock
|
LSG20
|
LSG20
|
LSG30
|
|||
|
6. Electric Cabinet Parts
|
Schneider or CHNT
|
Schneider or CHNT
|
Schneider or CHNT
|
|||
|
7. Platform Sise (LxWxH)
|
(2.5+2.5)x0.69x1.42m
|
(2+2+2)x0.69x1.42m
|
(2.5+2.5+2.5)x0.69x1.45m
|
|||
|
8. Steel Wire Rope
|
4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC
|
4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC |
4pcs; 100m/pcs
D=9.1mm; 4x31SW+FC |
|||
|
9. Electric Cable
|
(3x2.0+2x1.0mm2) 100m
|
(3x2.0+2x1.0mm2 ) 100m
|
(3x2.5+2x1.5mm2) 100m
|
|||
|
10. Suspended Jibs
|
340kg
|
340kg
|
340kg
|
|||
|
Lifting Parts Weight
|
410kg(Steel)
290kg(Aluminum) |
480kg(Steel)
340kg(Aluminum) |
530kg(Steel)
380kg(Aluminum) |
|||
|
Counterweight (Optional)
|
Cement, 750kg
|
Cement, 900kg
|
Cement, 1000kg
|
|||
|
Qty of 20" Container
|
13 sets
|
13 sets
|
10 sets
|
|||

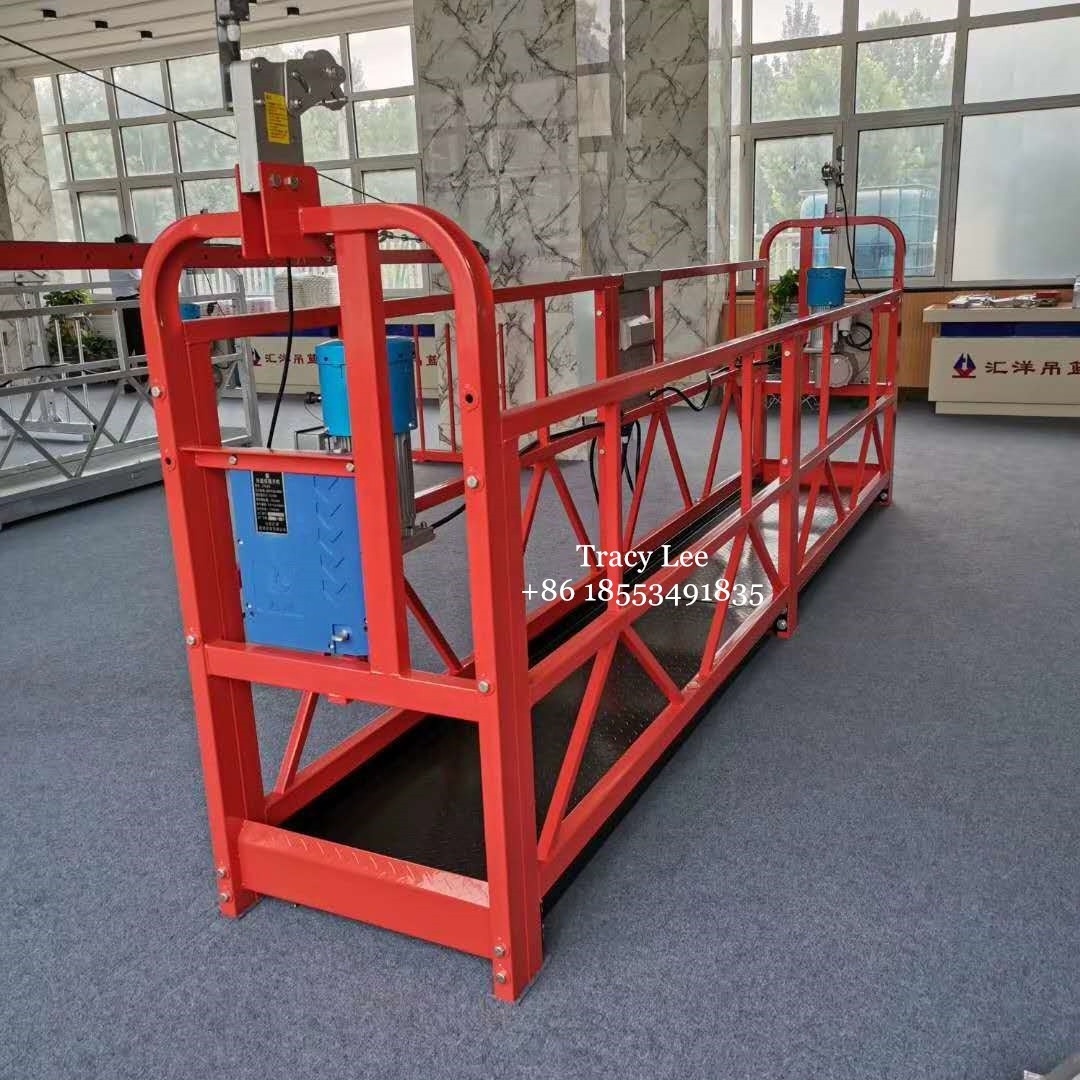

1. Working Platform: Steel + Painting; ( Steel+Galvanised or Aluminum Alloy+Painting is available also)
1.1 Working Platform is the workplace at heights for the workers.
1.2 L=6.0m (2.0+2.0+2.0) or (1.5+2+2.5) W=0.69m; H=1.42m;
1.3 With 4pcs of Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting;
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD6.3 Hoist, 1.5kw, 2 sets;
LSG20 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=8.3mm;
Electric Cable: 1pcs, 100m/pcs, Rubber, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
Name: Hoist Brand: HUIYANG
Model: LTD8.0 Quantity: 2 sets
Lifting Speed 9.3±0.5m/min Lifting Force: 8.0KN
Name
: Motor
Brand
: Tianjin YONGHENG
Power: 1.8kw*2 Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed 1420rpm Weight:52kgx2
Name:
Safety Lock
Brand:
HUIYANG
Model: LSG30 Quantity: 2 sets
Locking Rope Angle 3°~8° Allow impulsive force 20KN
Steel Wire Diameter 9.1mm Weight:5.5kgx2
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.
Name:
Electrlic Controll Cabinet
Brand:
HUIYANG
Surface: Galvanised With manual Switch
Components Brand: Schneider or CHNT
On Electric Control Cabinet, there are 4 buttons and a 220V
50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )
Name: Steel Rope Brand: Fasten
Quantity: 4pcs Length=100m/pcs
Diameter=9.1mm Weight:30kgx4
4x31SW+FC
Safety Rope
: 1Pcs=100m
Electric Cable
: 1Pcs=100m, Rubber, (3x2.5+2x1.5mm2)
Counterweight
(Optional) : Cement or Cast Iron
