- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
1.45kg
-
Product name:
-
Plastic Solar Storage Battery Box
-
Color:
-
Black
-
Material:
-
PP
-
Customization:
-
Available
-
Thickness:
-
1-2mm
-
Protection Level:
-
IP67
-
Sealed Type::
-
Sealed
-
Keyword:
-
Plastic Solar Storage Battery Box
-
Usage:
-
protect battery
Quick Details
-
Brand Name:
-
zhongming solar
-
Certification:
-
ISO
-
Model Number:
-
12v 100ah
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
1.45kg
-
Product name:
-
Plastic Solar Storage Battery Box
-
Color:
-
Black
-
Material:
-
PP
-
Customization:
-
Available
-
Thickness:
-
1-2mm
-
Protection Level:
-
IP67
-
Sealed Type::
-
Sealed
-
Keyword:
-
Plastic Solar Storage Battery Box
-
Usage:
-
protect battery

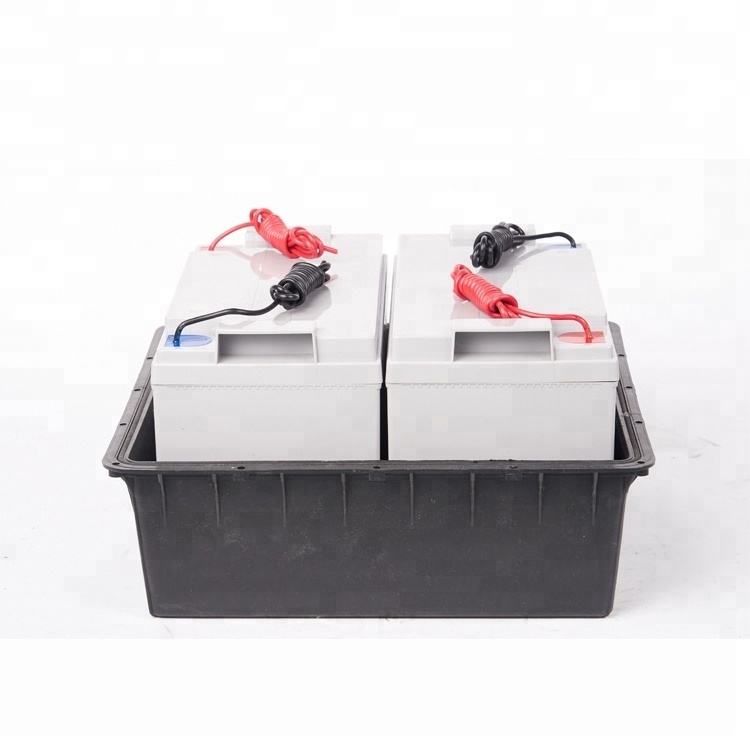

Good Quality Waterproof Underground Plastic Solar Storage Battery 12v 24v 100ah Battery Box
Advantages:
1.IP 67
2.Waterproof
3.Anti-corrosion
4.Pressure resistant
5.Heat protection
6.Life span: 20years
Instruction:
1.Connect the cable to the battery terminals -- seal the connection with glue -- take
out the cable out of the box through the hole in the box - fasten the box with ss screw - put the box into the Base -- put on the cover
2.Directly buried under the ground, no cement pool.
| Material | engineering plastics | Packing Information | |||
| Sealing | Sealing strips, screws fasteners and nuts | ||||
| Strength | reinforcement, capable of sustaining high pressure | ||||
| Specifications |
Inner Dimension (mm ) |
Outside Dimension (mm) |
Set/carton | Dimension of carton |
Gross Weight: KG/carton |
| 12V-38AH | 205×170×180 | 260×235×220 | 10 | size:60*30*40 cm | G.W:8 |
| 12V-80AH | 340×180×250 | 400×238×285 | 10 | size:48*41*55 cm | G.W:12.6 |
| 12V-120AH | 415×180×270 | 478×242×295 | 10 | size:50*50*53 cm | G.W.:15.45 |
| 12V/150AH | 480×180×270 | 552×250×300 | 10 | size:56*51*56 cm | G.W.:17.25 |
| 12V200AH-250AH | 550×250×270 | 613×310×315 | 5 | size:63*33*53 cm | G.W.:16.8 |
| 24V/80AH | 340×335×260 | 410×400×290 | 5 | size:42*42*55 cm | G.W:10 |
| 24V/120AH | 420×370×260 | 485×435×285 | 5 | size:49*45*50 cm | G.W.:12.25 |
| 24V/150AH | 490×390×270 | 555*450*310 | 5 | size:56*46*49 cm | G.W.:19.25 |
| 24V/200AH-250AH | 550×550×270 | 615×615×310 | 4 | size:63*63*44 cm | G.W.:23.85 |
|
