Quick Details
-
Theoretical Shot Volume(cm³):
-
201 cm³
-
Injection Rate (g/s):
-
158 g/s
-
Injection Weight (g):
-
187 g
-
Screw Speed (rpm):
-
0 - 280 rpm
-
Screw diameter (mm):
-
40 mm
-
Weight (KG):
-
7000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
280 mm
-
Model Number:
-
TFV3-120R2
-
Power (kW):
-
20.2 kW
-
Product name:
-
120 Ton Plastic Injection Molding Machine Auto Parts Making Machine
-
Keyword:
-
High Precision
-
Function:
-
making plastic products
-
Application:
-
air filter
-
Color:
-
white&yellow
-
Oil tank capacity:
-
380
-
After-sales Service Provided:
-
Provided
-
Warranty Service:
-
1 year
Quick Details
-
Mold Height(mm):
-
280 - 560 mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
45 kN
-
Theoretical Shot Volume(cm³):
-
201 cm³
-
Injection Rate (g/s):
-
158 g/s
-
Injection Weight (g):
-
187 g
-
Screw Speed (rpm):
-
0 - 280 rpm
-
Screw diameter (mm):
-
40 mm
-
Weight (KG):
-
7000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
280 mm
-
Model Number:
-
TFV3-120R2
-
Power (kW):
-
20.2 kW
-
Product name:
-
120 Ton Plastic Injection Molding Machine Auto Parts Making Machine
-
Keyword:
-
High Precision
-
Function:
-
making plastic products
-
Application:
-
air filter
-
Color:
-
white&yellow
-
Oil tank capacity:
-
380
-
After-sales Service Provided:
-
Provided
-
Warranty Service:
-
1 year
Product Description

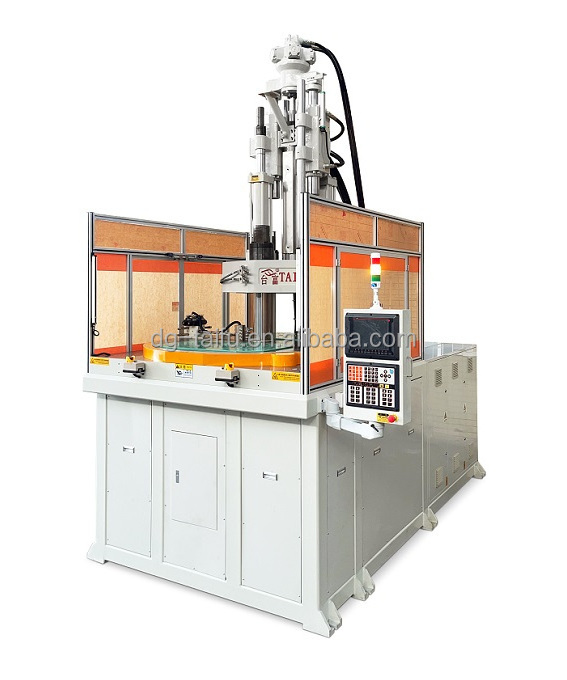

Rotoary Table Vertical injection Molding Machine Series
The diameter of the roatry table is
810mm-2300mm
. The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique design, the rotary vertical injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in
auto parts and new energy industry.
We can customize according to customer needs!
Please don't hesitate to contact us if you are interested.
