Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Color:
-
Green or customized
-
Product name:
-
screw production machine
-
Application:
-
screws
-
Type:
-
cold heading machine
-
Voltage:
-
380V or customized
-
Brand:
-
Huarui
-
MOQ:
-
1 set
-
Package:
-
wooden case package or customized
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huarui
-
Weight (KG):
-
800
-
Marketing Type:
-
Hot Product 2022
-
Color:
-
Green or customized
-
Product name:
-
screw production machine
-
Application:
-
screws
-
Type:
-
cold heading machine
-
Voltage:
-
380V or customized
-
Brand:
-
Huarui
-
MOQ:
-
1 set
-
Package:
-
wooden case package or customized
Factory Sale Screw Making Machine High Speed Drywall Screw Production Line Chipboard Screw Manufacturing Machine
Product Introduction

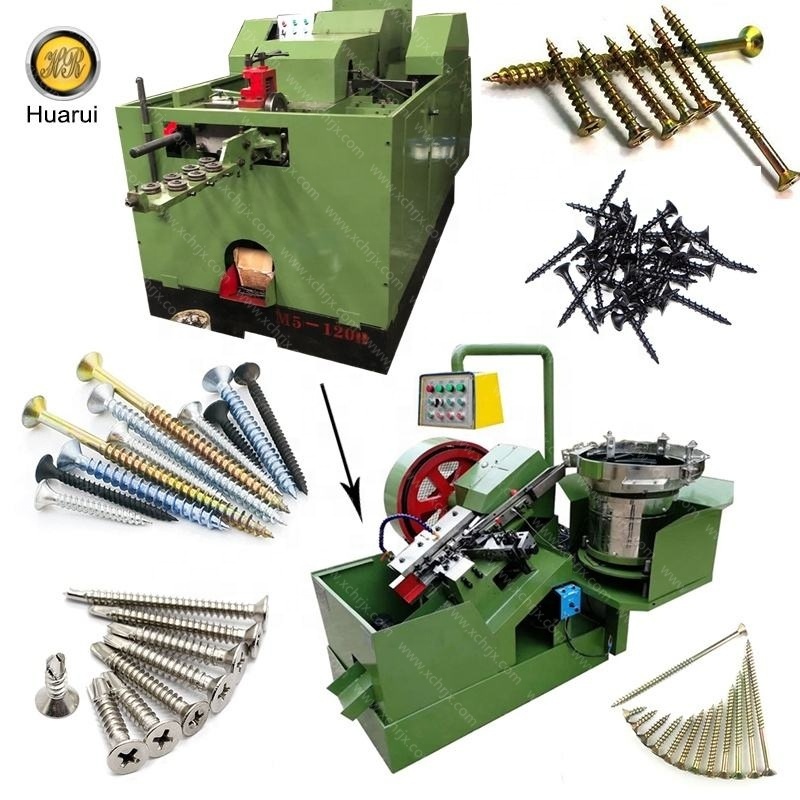

Screw producing process flows:
Steel Wire---Making screw head by cold heading machine---- making thread by thread rolling machine---finished screws
Specification of Each Machine
1. ZM series cold heading machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Main technical parameters:
|
Model
|
Max. Screw Dia. (mm)
|
Max. Screw length(mm)
|
Capacity (pcs/min)
|
Motor (kw)
|
Weight (Ton)
|
Overall size (m)
|
|
ZM3-18A
|
3
|
18
|
160-180
|
0.75/0.37
|
0.6
|
1.3*0.75*0.9
|
|
ZM3-18B
|
3
|
18
|
160-180
|
0.75/0.37
|
0.6
|
1.3*0.75*0.9
|
|
ZM3-28A
|
3
|
28
|
160-180
|
0.75/0.37
|
0.6
|
1.3*0.75*0.9
|
|
ZM3-28B
|
3
|
28
|
160-180
|
0.75/0.37
|
0.6
|
1.3*0.75*0.9
|
|
ZM4-28B
|
4
|
28
|
120-160
|
1.5/0.37
|
0.97
|
1.5*0.9*0.9
|
|
ZM4-28D
|
4
|
28
|
180-200
|
1.5/0.37
|
1.2
|
1.6*1*1.2
|
|
ZM4-40B
|
4
|
40
|
120-150
|
1.5/0.37
|
1.08
|
1.6*1*1.2
|
|
ZM4-40D
|
4
|
40
|
180-200
|
1.5/0.37
|
1.4
|
1.6*1.1*1.1
|
|
ZM4-60D
|
4
|
60
|
110-160
|
1.5/0.37
|
1.5
|
2*1*1.2
|
|
ZM5-40B
|
6
|
40
|
120-150
|
2.2/0.37
|
1.8
|
1.8*1.1*1.1
|
|
ZM5-60B
|
6
|
60
|
110-140
|
2.2/0.37
|
1.8
|
1.8*1.1*1.1
|
|
ZM5-80B
|
6
|
80
|
80-100
|
2.2/0.37
|
1.9
|
2*1.1*1.2
|
|
ZM5-100B
|
6
|
100
|
60-80
|
3/0.18
|
2.1
|
2.4*1.2*1.2
|
|
ZM5-120B
|
6
|
120
|
50-70
|
3/0.37
|
2.3
|
2.8*1.3*1.3
|
|
ZM6-60B
|
8
|
60
|
80-110
|
4/0.37
|
2.8
|
2.3*1.3*1.3
|
|
ZM6-100B
|
8
|
100
|
60-90
|
4/0.37
|
2.7
|
2.3*1.3*1.3
|
|
ZM6-120B
|
8
|
120
|
60-70
|
4/0.37
|
3
|
2.4*1.3*1.4
|
|
ZM6-170B
|
8
|
170
|
40-70
|
4/0.37
|
3.7
|
3*1.3*1.5
|
|
ZM6-200B
|
8
|
200
|
40-55
|
4/0.37
|
3.7
|
3*1.3*1.5
|
|
ZM6-320C
|
8
|
320
|
25-30
|
7.5/0.37
|
4.5
|
5.2*1.8*2.1
|
|
ZM8-90B
|
10
|
90
|
70-90
|
5.5/0.37
|
4.2
|
3.4*1.5*1.5
|
|
ZM8-90C
|
10
|
90
|
70-90
|
5.5/0.37
|
4.2
|
3.4*1.5*1.5
|
|
ZM8-130B
|
10
|
130
|
50-90
|
5.5/0.37
|
4.6
|
3.4*1.5*1.5
|
|
ZM8-130C
|
10
|
130
|
50-90
|
5.5/0.37
|
4.6
|
3.4*1.5*1.5
|
|
ZM8-150C
|
10
|
150
|
40-50
|
5.5/0.37
|
5
|
3.5*1.7*1.7
|
|
ZM8-200C
|
10
|
200
|
25-60
|
7.5/0.37
|
6
|
3.8*1.6*1.7
|
|
ZM10-120B
|
12
|
120
|
40-70
|
11/0.75
|
7
|
3.3*1.71.7
|
|
ZM10-170C
|
12
|
170
|
40-60
|
11/0.75
|
7.5
|
4.2*1.81.7
|
|
ZM10-220C
|
12
|
220
|
35-60
|
11/0.75
|
7.5
|
4.2*1.81.7
|
|
ZM10-250C
|
12
|
250
|
30-45
|
11/0.75
|
8.5
|
5*1.8*1.7
|
|
ZM10-300C
|
12
|
300
|
25-35
|
15/0.75
|
9
|
5*1.9*2.1
|
|
ZM10-360C
|
12
|
360
|
20-30
|
15/0.75
|
12
|
6.7*2*2.6
|
|
ZM12-150C
|
14
|
150
|
40-50
|
15/0.75
|
10
|
3.9*1.9*1.8
|
|
ZM12-250C
|
14
|
250
|
35-50
|
15/0.75
|
11
|
5.3*2.2*1.9
|
|
ZM14-150C
|
16
|
150
|
40-50
|
11/0.75
|
10
|
4.5*2.2*2.15
|
|
ZM14-250C
|
16
|
250
|
35-45
|
15/0.75
|
11
|
5*2.2*2.15
|
|
ZM16-160C
|
18
|
160
|
45
|
18.5
|
15
|
4.2*2.6*1.8
|
2. HR Series Automatic Thread Rolling Machine
Function: This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.
The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
Main technical parameters:
|
Model
|
Max. Screw Dia (mm)
|
Max. Screw length(mm)
|
Motor (kw)
|
Capacity (pcs/min)
|
Weight (Ton)
|
Overall size (m)
|
|
HR3-20A
|
M2.6
|
20
|
1.1
|
350
|
0.3
|
1.1*0.53*1.2
|
|
HR3-20B
|
M2.6
|
20
|
1.1
|
350
|
0.3
|
1.1*0.53*1.2
|
|
HR4-25A
|
M4
|
25
|
1.5
|
320
|
0.45
|
1.3*0.63*1.32
|
|
HR4-25B
|
M4
|
25
|
1.5
|
320
|
0.45
|
1.3*0.63*1.32
|
|
HR4-40A
|
M4
|
40
|
2.2/0.37
|
280
|
0.97
|
1.5*1.15*1.35
|
|
HR4-40B
|
M4
|
40
|
2.2/0.37
|
280
|
0.97
|
1.5*1.15*1.35
|
|
HR5-55A
|
M5
|
55
|
3+0.37
|
170
|
1.2
|
1.6*1.35*1.7
|
|
HR5-55B
|
M5
|
55
|
3+0.37
|
170
|
1.2
|
1.6*1.35*1.7
|
|
HR5-65A
|
M5
|
65
|
3+0.37
|
130
|
1.3
|
1.75*1.4*1.65
|
|
HR5-65B
|
M5
|
65
|
3+0.37
|
130
|
1.3
|
1.75*1.4*1.65
|
|
HR6-60A
|
M6
|
60
|
4/0.37
|
180
|
1.5
|
1.7*1.65*1.3
|
|
HR6-60B
|
M6
|
60
|
4/0.37
|
180
|
1.5
|
1.7*1.65*1.3
|
|
HR6-100B
|
M6
|
100
|
5.5+0.37
|
110
|
1.9
|
2.7*1.3*1.3
|
|
HR8-80B
|
M8
|
80
|
5.5/0.37
|
110
|
1.8
|
2.1*1.55*1.3
|
|
HR8-100B
|
M8
|
100
|
7.5+0.37
|
100
|
2.1
|
2.4*1.7*1.3
|
|
HR8-120B
|
M8
|
120
|
7.5
|
100
|
2.1
|
2.4*1.7*1.3
|
|
HR10-120B
|
M10
|
120
|
7.5
|
80
|
2.35
|
2.4*1.95*1.4
|
|
HR12-120B
|
M12
|
120
|
11
|
60
|
3
|
2.45*2*1.45
|
|
HR12-160B
|
M12
|
160
|
13
|
60
|
3
|
2.45*2*1.45
|
|
HR12-220B
|
M12
|
220
|
15
|
50
|
3.5
|
2.5*2*1.45
|
|
HR16-120B
|
M16
|
120
|
15
|
50
|
3.8
|
2.5*2.1*1.45
|
|
HR16-160B
|
M16
|
160
|
15
|
50
|
4
|
2.5*2.1*1.45
|
|
HR16-220B
|
M16
|
220
|
15
|
45
|
4.8
|
3.7*1.9*1.7
|
