Quick Details
-
Brand:
-
DIJIN
-
Model:
-
BS0-4
-
three jaw chuck size:
-
100mm
-
size:
-
4 inch
-
divided head:
-
milling machine accessory
-
Product name:
-
Universal Dividing Head
-
Application:
-
Rotary Indexing Application
-
Keywords:
-
BS0 dividing head
Quick Details
-
Brand Name:
-
DIJIN
-
Material:
-
cast iron
-
Weight (KG):
-
21
-
Brand:
-
DIJIN
-
Model:
-
BS0-4
-
three jaw chuck size:
-
100mm
-
size:
-
4 inch
-
divided head:
-
milling machine accessory
-
Product name:
-
Universal Dividing Head
-
Application:
-
Rotary Indexing Application
-
Keywords:
-
BS0 dividing head

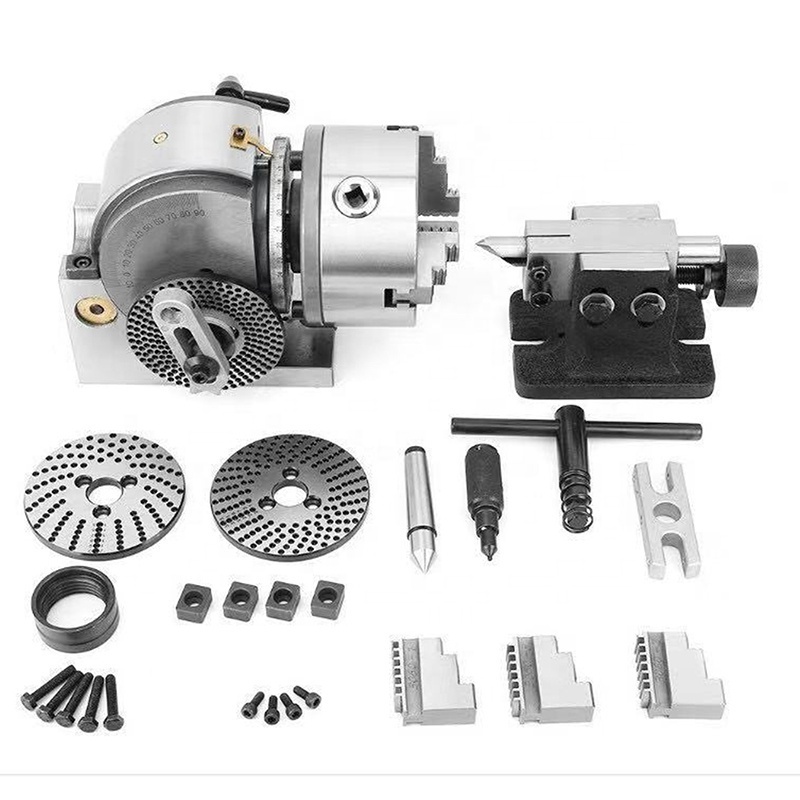

Semi-universal dividing head BS0-4 inch three jaw chuck 100mm
SEMI-UNIVERSAL INDEX CENTER B&S TYPE NO.0,NO.1(TAIL-STOCK) Unit: mm/in |
|
Model |
A1 |
B1 |
H1 |
h |
a1 |
b1 |
g1 |
Mueasurement m3 |
|
BS-0 |
175 |
87 |
107 |
100 |
130 |
92 |
16 |
Packed with the Dividing head |
|
6.89 |
3.42 |
4.21 |
3.93 |
5.12 |
3.62 |
0.63 |
||
|
BS-1 |
183 |
87 |
137 |
128 |
158 |
110 |
16 |
Packed with the Dividing head |
|
7.20 |
3.42 |
5.39 |
5.04 |
6.22 |
4.33 |
0.63 |
STANDARD ACCESSORIES
Dividing plate A,B,C
Numbers of holes of dividing plate (worm gear reduction ratio 1:40
Unit: mm/in
|
Numbers of hole |
Plate A |
15 |
16 |
17 |
18 |
19 |
20 |
|
Plate B |
21 |
23 |
27 |
29 |
31 |
33 |
|
|
Plate C |
37 |
39 |
41 |
43 |
47 |
49 |
