Quick Details
-
Number of Row:
-
Double row
-
Bore Size:
-
1 - 65 mm
-
Brand Name:
-
As request
-
Model Number:
-
ZARF65155-TV
-
Place of Origin:
-
Shandong, China
-
Structure:
-
needle
-
Width:
-
17.5mm
-
Weight:
-
51kg
-
Certificate:
-
ISO9001:2000,BV
-
H.S code:
-
8482012000
-
d:
-
65MM
-
D:
-
155MM
-
H:
-
82MM
-
B:
-
17.5MM
Quick Details
-
Applicable Industries:
-
Construction works , Energy & Mining
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Seals Type:
-
OPEN
-
Number of Row:
-
Double row
-
Bore Size:
-
1 - 65 mm
-
Brand Name:
-
As request
-
Model Number:
-
ZARF65155-TV
-
Place of Origin:
-
Shandong, China
-
Structure:
-
needle
-
Width:
-
17.5mm
-
Weight:
-
51kg
-
Certificate:
-
ISO9001:2000,BV
-
H.S code:
-
8482012000
-
d:
-
65MM
-
D:
-
155MM
-
H:
-
82MM
-
B:
-
17.5MM
Product Description

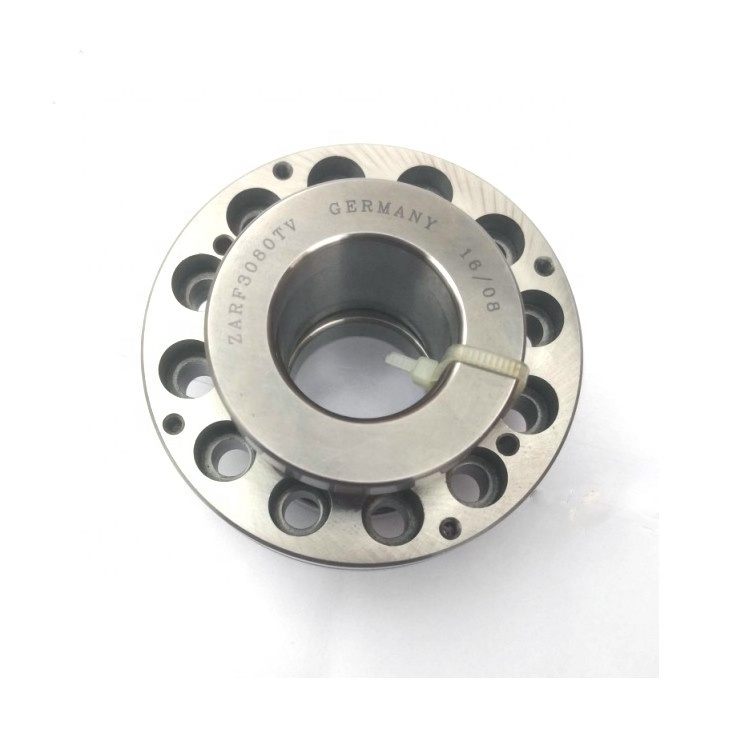

Type: needle roller / axial cylindrical roller bearings, double direction, for screw mounting
Dimension: 65 mm x 155mm x 82 mm
Axial dynamic load: 172000 N
Axial static load: 500000 N
Radial dynamic load: 54000 N
Radial static load: 104000 N
Limiting speed for oil lubrication: 2600 r/min
Limiting speed for grease lubrication: 900 r/min
Weight: 5.1 KG/PC
Origin: made in Germany
INA combined axial / Radial roller bearings:
ZARN...-L: double direction, long shaft locating washer
ZARN...: double direction
ZARF...-L: double direction, for screw mounting, long shaft locating washer
ZARF...: double direction, for screw mounting
Dimension: 65 mm x 155mm x 82 mm
Axial dynamic load: 172000 N
Axial static load: 500000 N
Radial dynamic load: 54000 N
Radial static load: 104000 N
Limiting speed for oil lubrication: 2600 r/min
Limiting speed for grease lubrication: 900 r/min
Weight: 5.1 KG/PC
Origin: made in Germany
INA combined axial / Radial roller bearings:
ZARN...-L: double direction, long shaft locating washer
ZARN...: double direction
ZARF...-L: double direction, for screw mounting, long shaft locating washer
ZARF...: double direction, for screw mounting
Specification
|
item
|
ZARF65155-TV combined roller bearings for screw mounting
|
|
Bore Size
|
1mm - 65mm
|
|
Applicable Industries
|
Construction works , Energy & Mining
|
|
Type
|
Needle
|
|
Brand Name
|
As request
|
|
Model Number
|
ZARF65155-TV
|
|
Precision Rating
|
P0 P6 P5 P4 P2
|
|
Seals Type
|
OPEN
|
|
Number of Row
|
Double row
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Structure
|
needle
|
|
Type
|
roller
|
|
Width
|
17.5mm
|
|
Weight
|
51kg
|
|
Certificate
|
ISO9001:2000,BV
|
|
H.S code
|
8482012000
|
|
d
|
65MM
|
|
D
|
155MM
|
|
H
|
82MM
|
|
B
|
17.5MM
|
