Name: firebox
Brand: inno fire
Original:China
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inno@fire
-
Model Number:
-
ILFPIN -60 inch 2024 02 23-002
-
color:
-
stainless steel color or black
-
Burner Capacity:
-
12.5 liter
-
Dimension of firebox:
-
1524mm L x 381mm W X 736mm H
-
Payment Term:
-
T/T or L/C at sight
-
MOQ:
-
1 pcs
-
Material::
-
Body: Steel, burner: Stainless steel
-
Burner size:
-
1220mm L *193mm W *168mm H
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Free spare parts, Other
-
Project Solution Capability:
-
graphic design, Cross Categories Consolidation
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inno@fire
-
Model Number:
-
ILFPIN -60 inch 2024 02 23-002
-
color:
-
stainless steel color or black
-
Burner Capacity:
-
12.5 liter
-
Dimension of firebox:
-
1524mm L x 381mm W X 736mm H
-
Payment Term:
-
T/T or L/C at sight
-
MOQ:
-
1 pcs
-
Material::
-
Body: Steel, burner: Stainless steel
-
Burner size:
-
1220mm L *193mm W *168mm H
Product Description
Details of burner
Auto add fuel function
Adjusting flame tool and auto ON/OFF for burner as follow:
Button of burner , remote controller , smart phone that is wifi function , RS485 home system
Product Application

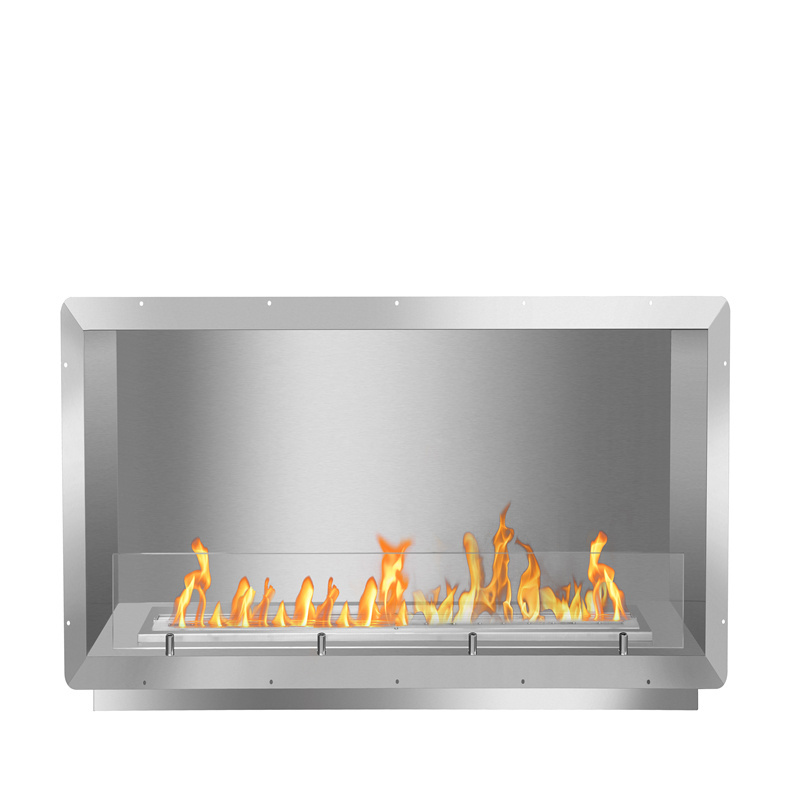

60 inch firebox with 48 inch intelligent ethanol burner
|
SPECIFICATIONS FOR 60 INCH FIREBOX WITH 48 INCH INTELLIGENT ETHANOL BURNER
|
|
|
|
|||
|
Firebox size :
|
1524 mm L *381mm W *736mm H
|
Function
|
Automatic ignition/extinction
|
|||
|
Burner size:
|
1220mm x 193mm W x 168mm H
|
|
Electronic heat detectors
|
|||
|
Flame length
|
1092mm
|
|
Heavy shake sensor
|
|||
|
Capacity
|
12.5 liters
|
|
Auto-filling fuel
|
|||
|
Fuel Consumption
|
0.6~1.6 L/H
|
|
Flame adjustment
|
|||
|
Heat output
|
4000W ~ 10600W
|
|
CO2 density alarm
|
|||
|
Packaging size
|
170cm L *58cm W *94cm H
|
|
Anti-interference
|
|||
|
Technical data as follow:
|
|
|
Optional WIFI control function
|
|||
|
Voltage:
|
100V~240V
|
|
Option smart home dry contact
|
|||
|
Inside burner
|
DC 24V/2A
|
|
Option Children lock
|
|||
|
Frequentie:
|
50HZ/60HZ
|
|
Option Linkage function
|
|||
|
Electrical consumption
|
50W
|
|
|
|||
Physical picture as follow:
Main Features
Fireplace insert, double side open, unit price of single side open same to double side open firebox
Material: 1.5 thickness 201# stainless steel frame, tempered glass firescreen, one side with full screen and another side with part screen with 48 inch intelligent ethanol burner
2. Along with instruction manual Include hardware screws Vent hole in front and back.
Vent hole in front and back.
Material: 1.5 thickness 201# stainless steel frame, tempered glass firescreen, one side with full screen and another side with part screen with 48 inch intelligent ethanol burner
2. Along with instruction manual Include hardware screws Vent hole in front and back.
Vent hole in front and back.
4 inch spacer .
Fireplace insert, double side open, unit price of single side open same to double side open firebox
Size can be customized
Certifications
Detailed Images
Machine Parts
Main Features
Name:
intelligent ethanol burner
Brand:
inno fire
Original:
China
Machine Parts
Name:
part of fireplace
Brand:
inno fire
Original:
China
Main Features
Name:
filling mouth
Brand:
inno fire
Original:
China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 3 years warranty and life long after sale service .
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
170cm L *58CM w *94cm H
|
|
|
Weight
|
185 KGS
|
|
|
Packaging Details
|
Using foam to packaging firebox in case Scratching
|
|
|
Packaging
|
|
|
|
Size
|
170cm L *58CM w *94cm H
|
|
|
Weight
|
185 KGS
|
|
|
Packaging Details
|
WIth instruction , pipe ,adaptor , remote controller
|
|
Related Products
FAQ
Q:
Are you trading company or manufacturer ?
A: We are factory.
Q:
How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample , extra
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
