Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LeadWorld
-
Dimension(L*W*H):
-
L3120*W1250*H1740mm
-
Weight:
-
100 KG
-
Product name:
-
Automatic Carton Box Case Erector Erecting Machine
-
Function:
-
Industry Packaging Line Carton Erector
-
Material:
-
Stainless Steel/Carbon steel paint(customized)
-
Application fields:
-
Production Line Secondary Packaging Line
-
After Warranty Service:
-
Video technical support/ Online support/Spare parts
-
Technical Support:
-
Field maintenance and repair service
-
Certification:
-
CE and according to your market
-
ODM&OEM:
-
Yes
-
Speed:
-
50 pcs/min can be customized
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LeadWorld
-
Dimension(L*W*H):
-
L3120*W1250*H1740mm
-
Weight:
-
100 KG
-
Product name:
-
Automatic Carton Box Case Erector Erecting Machine
-
Function:
-
Industry Packaging Line Carton Erector
-
Material:
-
Stainless Steel/Carbon steel paint(customized)
-
Application fields:
-
Production Line Secondary Packaging Line
-
After Warranty Service:
-
Video technical support/ Online support/Spare parts
-
Technical Support:
-
Field maintenance and repair service
-
Certification:
-
CE and according to your market
-
ODM&OEM:
-
Yes
-
Speed:
-
50 pcs/min can be customized
Main Features:
1.Vertical storage,cartons can be added at any time without stopping the machine.
2. Suitable for forming and sealing cartons of the same size.
3.Manually adjust to change the carton sizes(finishing in 2-3minutes).
4. Advanced photo electricity induction control system.
5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.
6.Cutter Safety system to prevent hands form stabbed by the cutter
7.Heavy duty built,both steel and stainless steel types.
2. Suitable for forming and sealing cartons of the same size.
3.Manually adjust to change the carton sizes(finishing in 2-3minutes).
4. Advanced photo electricity induction control system.
5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.
6.Cutter Safety system to prevent hands form stabbed by the cutter
7.Heavy duty built,both steel and stainless steel types.

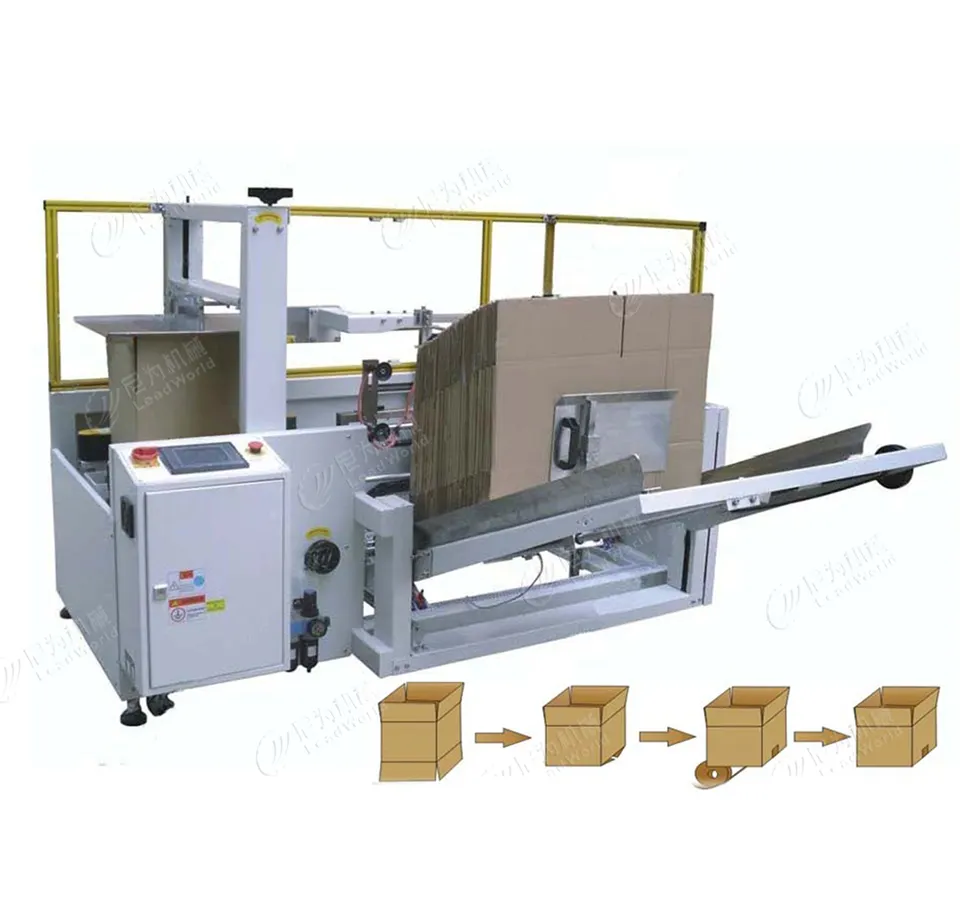

Leadworld Carton Erector Let cartons placed in the machine's storage board manually, the machine will automatically pull the carton shape, automatically folded the bottom of the page, and automatically sealed.
The carton erector is a Semi-auto carton sealing machine that can fold the bottom cover of a carton and seal it; it can be operated separately, economical and high-efficiency, which is an ideal packaging machine
below please check the leadworld Carton erecting machine more Main Technical Parameters:
|
Model
|
LW-EV18
|
LW-EH30
|
LW-EH50
|
|
Capacity
|
18pcs/min
|
30pcs/min
|
50pcs/min
|
|
Carton collecting
|
100pcs(1000mm)
|
80pcs(800mm)
|
80pcs(1000mm)
|
|
Carton size
|
L:250-400mm
W:150-350mm H:100-350mm |
L:240-510mm
W:190-400mm H:120-400mm |
L:250-450mm
W:150-400mm H:100-300mm |
|
Power
|
220V 1Φ 200W
|
380V 3Φ 746W
|
380V 3Φ 746W
|
|
Air Consumption
|
0.6Mpa 450NL/min
|
0.5Mpa 300NL/min
|
0.5Mpa 300NL/min
|
|
Machine Size
|
L2400*W1200*H1450mm
|
L2372*W1210*H1820mm
|
L3120*W1250*H1740mm
|
|
Belt Size
|
48,60,75mm
|
2'',2.5''
|
2'',2.5''
|
Replace The Tape Quickly
Automatic Buckle Design
Folding Front And Rear Board
Siemens PLC
Endurable Conveyor Belt
Leadworld vertical carton erector machine uses an endurable conveyor belt with strong friction that can transport steadily.
Automatic Alarm
When the tape is broken or used up, the alarm will make sounds automatically. it convenient for users to change and adjust in time.
Customizable Trough
Leadworld provides customizable horizontal or vertical cartons trough according to your packaging type.
Multiple-Size Cartons
Customize your carton erector machine according to your carton packing size and packer method
Leadworld Conventional Carton Erector Machine:
Vertical Carton Erector Machine
Horizontal Carton Erector Machine
Leadworld is committed to the R&D, design, and production of packaging line machinery at the back end of the production line. Do you need other packaging line machinery? For more information please contact us.
Carton Palletizer
Leadworld Global can supply solutions for the whole set of automatic production filling, packing, and logistics systems. Contact us to get complete Back End Of packaging line solutions:
Packaging Shipping
FAQ
Q. Are you a manufacturer or trading company?
A: Yes, We are a manufacturer verified by ALIBABA, and our R&D and Production team have 30 years of a customized experience
Q: What are your company’s main products?
A: focusing on automated canning and filling, The research and development, production, sales, and service of packaging production line equipment. E.g Bottle Washer, Filling Machine, Case Packer, case erecter, Palletizer(De-palletizer), Sealing Machine, Labeling Machine, Vacuum Packaging Machine, conveyors, etc.
Q: Where are you located? Is it convenient to visit you?
A: Yes, We are located in Shanghai, and traffic is very convenient. Welcome to our factory anytime
Q: Can you design the machine according to our requirements?
A: Of course. We not only can customize the machine according to your technical drawing but also can the new machine according to your requirements.
Q: Can you offer overseas technical support?
A: Yes. We can send the engineer to your company to set up the machine and train your worker if needed.
If you have more questions about our product, please send us an inquiry below. Commonly, you will get a reply in 6 hours. Thank you
