Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JB
-
Dimension(L*W*H):
-
2400*1500*1900MM
-
Weight:
-
650 KG
-
Model:
-
JB-YG6
-
Filling head number:
-
6
-
Capping head number:
-
1
-
Filling volume:
-
50-500ML
-
Capacity:
-
20-60 bottles/min
-
Control:
-
PLC+ Touch Screen
-
Power supply:
-
AC220V 50/60HZ
-
Total power:
-
1.6kw
-
Net weight:
-
650kg
-
Dimension:
-
2400*1500*1900
Quick Details
-
Machinery Capacity:
-
1200-3600BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Milk, Water, Oil, Juice, liquid
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JB
-
Dimension(L*W*H):
-
2400*1500*1900MM
-
Weight:
-
650 KG
-
Model:
-
JB-YG6
-
Filling head number:
-
6
-
Capping head number:
-
1
-
Filling volume:
-
50-500ML
-
Capacity:
-
20-60 bottles/min
-
Control:
-
PLC+ Touch Screen
-
Power supply:
-
AC220V 50/60HZ
-
Total power:
-
1.6kw
-
Net weight:
-
650kg
-
Dimension:
-
2400*1500*1900

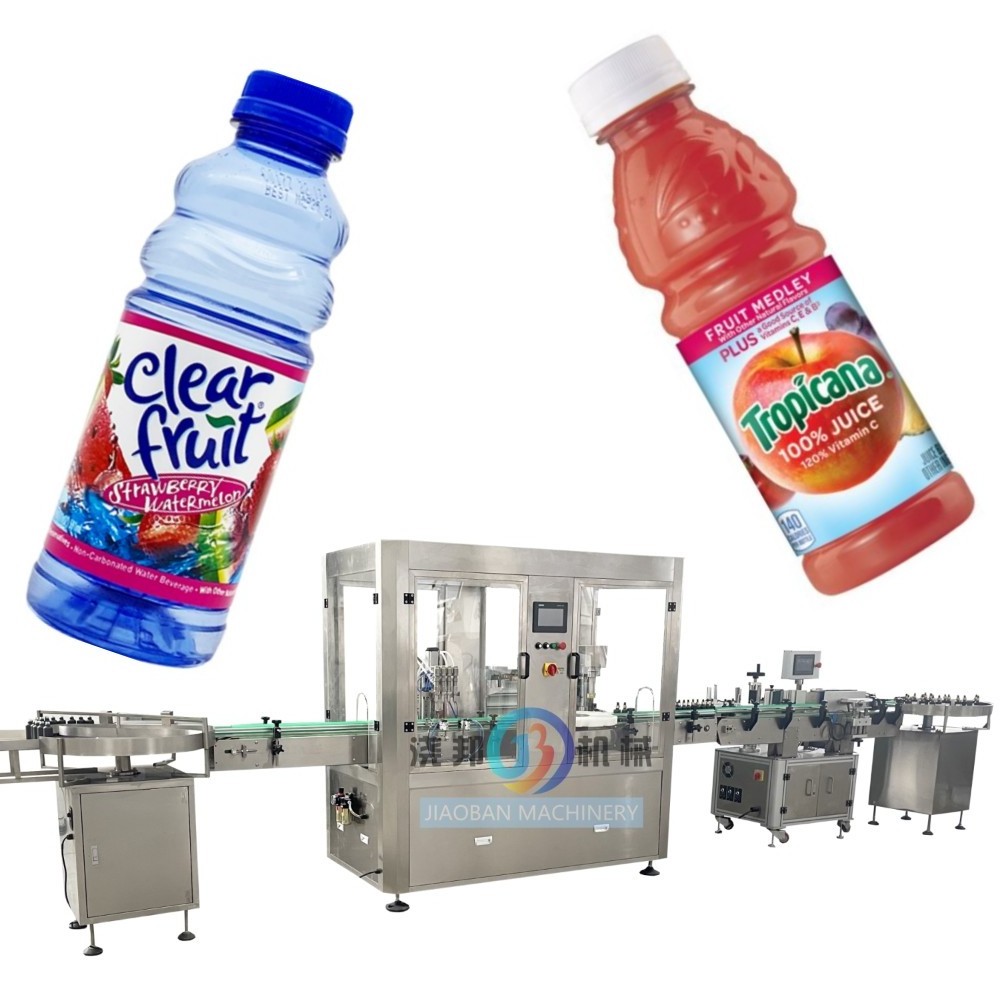

JB-YG6 Automatic PET bottle Fruit Beverage Liquid Water Vodka Vinegar Soy Sauce Wine Lemonade Grape Juice Drink Filling Machine
Products Description
|
Model
|
JB-YG4
|
JB-YG6
|
JB-YG8
|
|
Filing head number
|
4
|
6
|
8
|
|
Adding plug/dropper head
|
1
|
2
|
2
|
|
Capping head number
|
1
|
2
|
2
|
|
Filling volume
|
50-1000ml
|
50-1000ml
|
50-1000ml
|
|
Capacity
|
5-35 bottles/min
|
10-60 bottles/min
|
15-70 bottles/min
|
|
Filling accuracy
|
≤ ±1%(depend on product)
|
≤ ±1%(depend on product)
|
≤ ±1%(depend on product)
|
|
Pass rate
|
≥ 98%
|
≥ 98%
|
≥ 98%
|
|
Power supply
|
1 Ph. AC220V/3Ph AC380V 50/60Hz
|
1 Ph. AC220V/3Ph AC380V 50/60Hz
|
1 Ph. AC220V/3Ph AC380V 50/60Hz
|
|
Total power
|
2.8 KW
|
3.0 KW
|
3.5KW
|
|
Net weight
|
About 850kg
|
About 1000 kg
|
About 1200 kg
|
|
Overall Dimension
|
L4600x W1800x H1900mm
|
L6500x W4800x H1900mm
|
L7000x W5200x H1900mm
|
Sample Bottles
Details Images
1.Machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to
be replaced),high precision;The structure of pump adopts fast disassmbled machanism,easy to clean and disinfect.
2. PLC control system,color touch screen display,machine has function of counting automatically.
3.The filling nozzle was equipped with drip-proof device.
4.When filling liquid,the filling nozzle dive into the bottom of bottles,rising slowly,can effectively prevent the generation of troubles,
5.Machine shell is made of 304 stainless steel,meets GMP standard.
Siemens touch screen
6 filling heads
Piston pump for controlling filling
Vibrating plate for cap
Track for conveying cap
Add cap on top of the bottle
Finished bottle display
Optional Machine
Tank
It can add mixing and heating function. We have 100L, 200L, 500L, 1000L etc
JB-ZX100 Bottle washing machine
It can clean square or round bottle inside and outside
JB-TB200 Bottle shrink sleeve labeling machine
We have steam heating or electric heating
