Quick Details
-
Dimension(L*W*H):
-
8870*4400*22800mm
-
Weight:
-
82000 KG
-
Drilling Diameter:
-
2200mm
-
Drilling Depth:
-
Max.70m
-
Product name:
-
Rotary Drilling Rig
-
Max.drilling diameter:
-
2.2m
-
Max.drilling depth:
-
70m
-
Working dimensions:
-
8870*4400*22800mm
-
Transport dimensions:
-
17525*3250*3594mm
-
Overall weight:
-
82Ton
-
Rated power:
-
270KW
-
Max.torque of rotary drive:
-
240kN.m
-
Max.travel speed:
-
1.8km/h
-
Track shoe width:
-
800mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Top Brand
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
8870*4400*22800mm
-
Weight:
-
82000 KG
-
Drilling Diameter:
-
2200mm
-
Drilling Depth:
-
Max.70m
-
Product name:
-
Rotary Drilling Rig
-
Max.drilling diameter:
-
2.2m
-
Max.drilling depth:
-
70m
-
Working dimensions:
-
8870*4400*22800mm
-
Transport dimensions:
-
17525*3250*3594mm
-
Overall weight:
-
82Ton
-
Rated power:
-
270KW
-
Max.torque of rotary drive:
-
240kN.m
-
Max.travel speed:
-
1.8km/h
-
Track shoe width:
-
800mm
Xr240e Rotary Drilling Rig 70m Drill Depth Piling Machine XR240E For Sale
Contact Way
Rita Li -
Sales Manager
Tel:
+86-158-2177-7011
Whatsapp/Wechat/Mobile:
+86-158-2177-7011
Email:
rita@richmchn.com
Product Overview

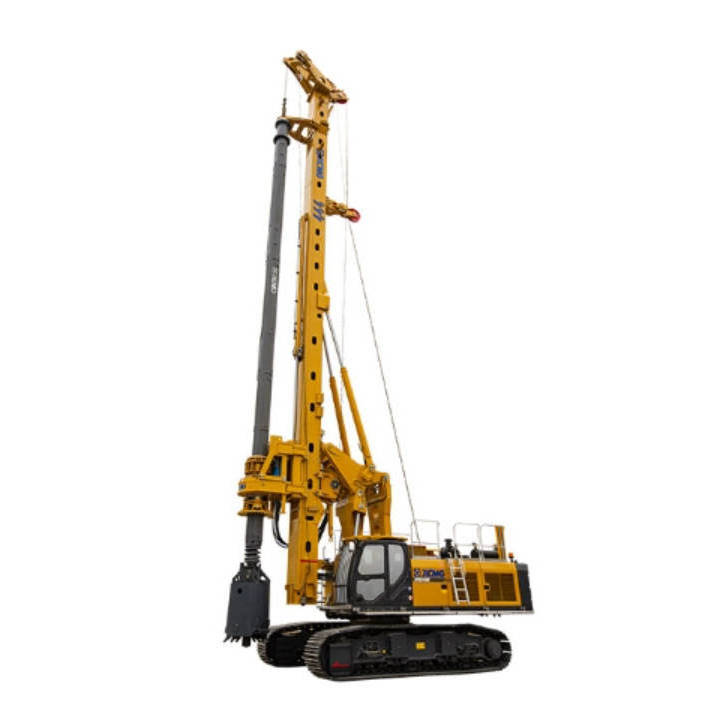

Xr240e Rotary Drilling Rig 70m Drill Depth
- Max. drilling diameter: 2200mm
- Max. drilling depth: 70m
crowd winch to meet more different construction needs.
Performance Characteristic:
* It adopts japan electronically controlled turbocharged engine with lower fuel consumption and convenient service.
* The rotary drive and main winch performance is increased by 20%, so the work efficiency is much higher.
* The main and auxiliary winches both adopt the single-row rope technology, the service life of wire rope is 2~4 times longer than that of multi-layer rope, which makes the cost lower.
* The double jib parallelogram luffing mechanism has a large support angle and al6% increase in support range, which makes the operation more stable.
* The hydraulic system adopts negative flow control technology which has a fast response and good handling performance.
* High-power temperature-controlled independent hydraulic oil cooler can meet the construction requirements of high temperature areas and adjust the fan speed according to temperature changes to achieve energy saving.
Product Parameters
|
Item
|
|
Unit
|
XR240E
|
|
|
Engine
|
Model
|
-
|
6UZ1X-270
|
|
|
|
Rated Power
|
kW
|
270
|
|
|
Rotary Drive
|
Max.output torque
|
kN﹒m
|
240
|
|
|
|
Rotary Speed
|
r/min
|
7-30
|
|
|
|
Max.Drilling Diameter
|
mm
|
φ2200/φ2000*
|
|
|
|
Max.Drilling Depth
|
m
|
70
|
|
|
Crowd cylinder
|
Max.pull-down piston push
|
kN
|
210
|
|
|
|
Max.pull-down piston pull
|
kN
|
220
|
|
|
|
Max.pull-down piston stroke
|
m
|
5
|
|
|
Crowd Winch
|
Max.pull-down piston push
|
kN
|
250
|
|
|
|
Max.pull-down piston pull
|
kN
|
250
|
|
|
|
Max.pull-down piston stroke
|
m
|
13
|
|
|
Main Winch
|
Max.pulling force
|
kN
|
240
|
|
|
|
Max.line speed
|
m/min
|
70
|
|
|
Auxiliary Winch
|
Max.pulling force
|
kN
|
80
|
|
|
|
Max.line speed
|
m/min
|
70
|
|
|
|
Mast Rake（Slide/forwards/backwards）
|
°
|
±4/5/15
|
|
|
Undercarrige
|
Max.traveling speed
|
km/h
|
1.8
|
|
|
|
Max.grade ability
|
%
|
35
|
|
|
|
Min.clearance
|
mm
|
450
|
|
|
|
Track shoe width
|
mm
|
800
|
|
|
|
Distance between tracks
|
mm
|
3250-4400
|
|
|
Hydraulic system
|
Working pressure
|
MPa
|
35
|
|
|
|
Overall Drilling Weight
|
t
|
84
|
|
|
Dimension
|
Working condition
|
mm
|
8870×4400×22800
|
|
|
|
Transporation condition
|
mm
|
17525×3250×3594
|
|
