Quick Details
-
Print Dimension:
-
Widest 2.5
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Blueprint
-
Dimensions(L*W*H):
-
4732*1785*1602(MM)
-
Weight:
-
2600KG
-
Ink Type:
-
UV Ink
-
Type:
-
Digital Printer
-
Name:
-
UV flatbed printer bulk ink supply wall paper ceramic decal printer
-
Printhead:
-
Ricoh Gen5
-
Print size:
-
Widest 2.5
-
Print thickness:
-
50mm
-
Print resolution:
-
720*2400 dpi
-
Color:
-
CMYK or CMYK Lc Lm
-
Media type:
-
Flex, Vinyl, Acrylic, Aluminous board etc
-
Print speed:
-
40~80sqm/h
-
Image data format:
-
Tiff, JPEG, EPS
-
Certification:
-
CE/MSDS Certification
Quick Details
-
Plate Type:
-
Hybird
-
Color & Page:
-
Multicolor
-
Voltage:
-
AC220V
-
Print Dimension:
-
Widest 2.5
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Blueprint
-
Dimensions(L*W*H):
-
4732*1785*1602(MM)
-
Weight:
-
2600KG
-
Ink Type:
-
UV Ink
-
Type:
-
Digital Printer
-
Name:
-
UV flatbed printer bulk ink supply wall paper ceramic decal printer
-
Printhead:
-
Ricoh Gen5
-
Print size:
-
Widest 2.5
-
Print thickness:
-
50mm
-
Print resolution:
-
720*2400 dpi
-
Color:
-
CMYK or CMYK Lc Lm
-
Media type:
-
Flex, Vinyl, Acrylic, Aluminous board etc
-
Print speed:
-
40~80sqm/h
-
Image data format:
-
Tiff, JPEG, EPS
-
Certification:
-
CE/MSDS Certification

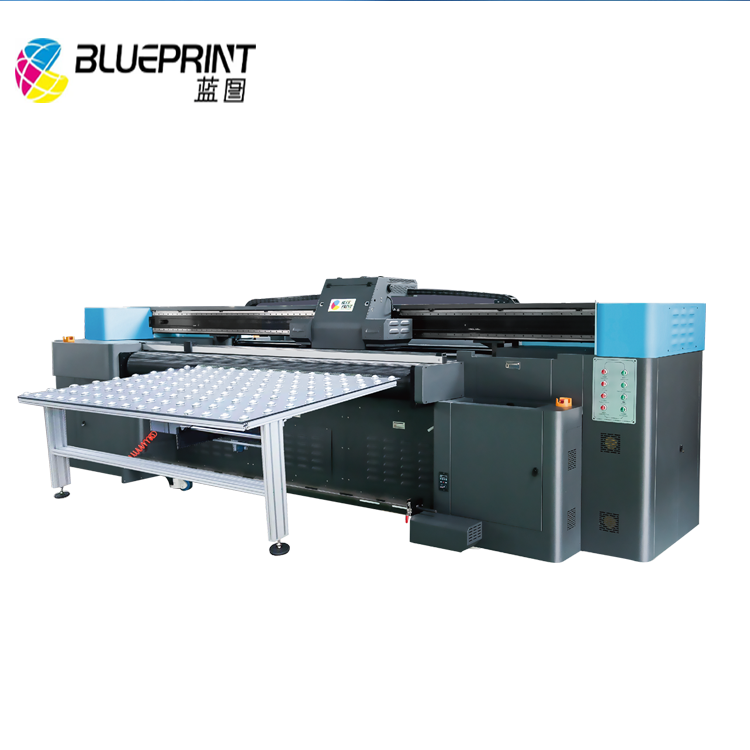

UV flatbed printer manufacture bulk ink supply wall paper ceramic decal printer
| Mode Type | Blueprint-JBK2500 Hybird 2.5M Industrial UV Printer | |
| Print head | 2/3/4 /5/6/7/8/9/10/11/12Ricoh Gen5 | |
| Number Of Nozzles | 1280 Nozzles *8 Heads | |
| Color |
6 Colors:Cyan, Magenta, Yellow, Black,Light Cyan,Light Megenta,White,varish
(CM |
|
| Resolution | 2880dpi (Max)/720dpi | |
| Max. Print Width | 24400mm | |
| Max Media Thickness | Panel:≤ 50mm | |
| Print speed | Standard Output Mode: 60qm/hr, | |
| Production Mode:80sqm/hr, | ||
| High Precision Output Mode: 40sqm/hr, | ||
| Print Resolution | 600,900,1200,1800,2400dpi | |
| Technology | Piezoelectric Inkjet,UV-curable inkjet,grayscale printing | |
| Color Configuration | C M Y K or C M Y K Lc Lm | |
| (white color and varnish are optional) | ||
| Ink types | Environmental protective UV ink | |
| Ink reservoir | 2.5L drums, automatic ink control, non-stop and ink | |
| RIP software | PhotoPrint/Print factory (ONYX /Caldera optional) | |
| Color management | ICC based color management, | |
| adjustable curbe and density | ||
| File formats | TIFF,JPEG,Postscript,EPS,PDF,ect | |
| Rigid Media | Wood panel, Aluminum panel, door plank, | |
| paperboard, PVC expansion sheet, | ||
| ceiling panel, glass, ceramics, | ||
| acrylic, PVC, etc.Flex,Banner,Knife Coated Substrate,Double Side Printing Banner PV | ||
| Data interface | High speed USB transmission | |
| Temperature | Temperature 15-30°C(59-86℉), Humidity 40%-80% RH(No-refrigerated) | |
| Maximum power | 7500 watts | |
| Pequirements | AC220-240V 50-60HZ Or AC110-120V 50-60HZ | |
| Printer Demension | L4732*W1785*H1602mm | |
| Packing Demension | L4950*W2100*H1825mm | |
| Net Weight | 2600kg | |
| Gross Weight | 2700kg | |
