Quick Details
-
Brand Name:
-
kaiyang
-
Model Number:
-
KYQB40LF
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
/
-
Outlet Size:
-
1-1/2 INCH
-
Power:
-
/
-
Pump Material:
-
Fluoroplastic (PVDF)
-
Diaphragm Material:
-
PTFE
-
Fuid inlet size:
-
1 1/2 INCH
-
Max Flow Rate:
-
40 GPM
-
Max Working Pressure:
-
109PSI
-
Max. Particle Diameter:
-
4.5mm
-
Max. Suction Lift:
-
5m(dry)/8m(wet)
-
Product name:
-

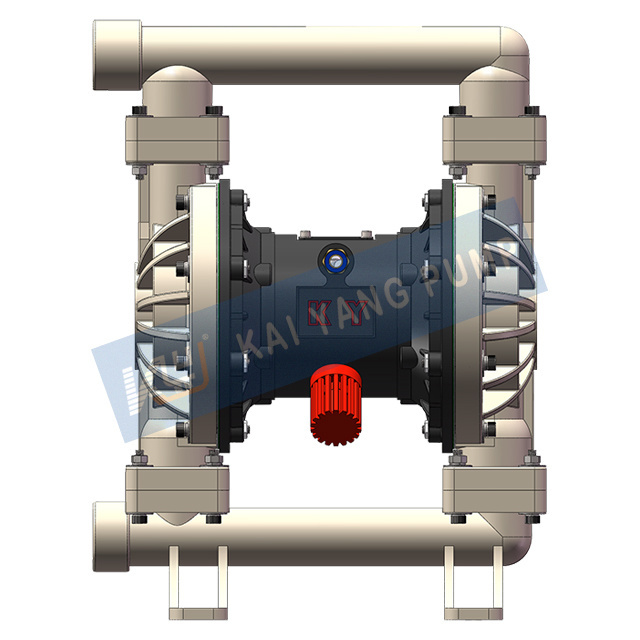

chemical resistant diaphragm pump
-
Certificate:
-
ISO9001:2015
-
Fuel:
-
Air operated
Quick Details
-
Application:
-
Automotive Industry, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
/
-
Brand Name:
-
kaiyang
-
Model Number:
-
KYQB40LF
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
/
-
Outlet Size:
-
1-1/2 INCH
-
Power:
-
/
-
Pump Material:
-
Fluoroplastic (PVDF)
-
Diaphragm Material:
-
PTFE
-
Fuid inlet size:
-
1 1/2 INCH
-
Max Flow Rate:
-
40 GPM
-
Max Working Pressure:
-
109PSI
-
Max. Particle Diameter:
-
4.5mm
-
Max. Suction Lift:
-
5m(dry)/8m(wet)
-
Product name:
-
chemical resistant diaphragm pump
-
Certificate:
-
ISO9001:2015
-
Fuel:
-
Air operated
| KYQB40LF Pump Parameters |
| Pump Body Material: | Pvdf |
|
| Air Motor Material: | Aluminum Alloy | |
| Pump Weight: | About 35.2 lbs | |
| Air Inlet Size: | 1/2 in BSP | |
| Fluid Inlet/Outlet Size: | 1½ in BSP | |
| Max.Suction Height: | Dry:5m Wet:8m | |
| Max.Flow: | 43.8GPM | |
| Max.Working Pressure: | 109PSI | |
| Max.Permitted Grain: | 3/16 in |
| Performance Curves And Dimensions |
| The Meaning Of Pump Model |
| Model Selection Table |
| Installation Instruction Diagram |
Q1: what is the packaging of your product?
Answer: standard exports plywood box or carton to be decided according to specific product.
Q2: how about the quality and service of your company?
Answer: we are a professional manufacturer of diaphragm pump, to quality survival, welcome your use and inspection; We are China Great Wall quality system certification enterprise, please feel free to use.
Q3: what kind of diaphragm pumps do you produce?
Answer: my company is an experienced diaphragm pump manufacturer, materials have cast steel, aluminum alloy, stainless steel, polypropylene, fluorine plastics, lining teflon; Diaphragm pump caliber is 1/2 "3/4" 1 "1.5" 2 "2.5" 3 "4", the power mode is divided into pneumatic and electric.
Q4: can your company guarantee our healthy cooperation?
Answer :1. Our company guarantees our good long-term cooperation with the guarantee of product quality and the assistance of professional receiving services.
2. We hope to establish good cooperative relations with friends around the world. The process of cooperation is not only business, but also the process of making friends.
Q5: when is your delivery time?
A: most of our products are in stock, depending on type and quantity. We'll deliver the goods as soon as possible.
