buildings outside insulated wall panels sandwich panel cold room panels

buildings outside insulated wall panels sandwich panel cold room panels

FOB Reference Price: Get Latest Price

≥100 Square meters

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: CRYO SYSTEMS

Model Number:: PIR Sandwich Panel

Compressor brand:: Original world famous compressors

Standard air cooler:: Using SS cover

Refrigerant:: R22, R404Q

Pu panels:: 75, 100, 120, 150mm

PU panels cover:: Steel, stainless steel

Temp range:: =5~-35 degree

Volume:: 2~300 cubit meters

MOQ:: 1 set

Brand:: Cryo Systems

Quick Details

Project Solution Capability:: graphic design, 3D model design, total solution for projects

Application:: Warehouse

Design Style:: Modern

Place of Origin:: China

Brand Name:: CRYO SYSTEMS

Model Number:: PIR Sandwich Panel

Compressor brand:: Original world famous compressors

Standard air cooler:: Using SS cover

Refrigerant:: R22, R404Q

Pu panels:: 75, 100, 120, 150mm

PU panels cover:: Steel, stainless steel

Temp range:: =5~-35 degree

Volume:: 2~300 cubit meters

MOQ:: 1 set

Brand:: Cryo Systems

Products Description

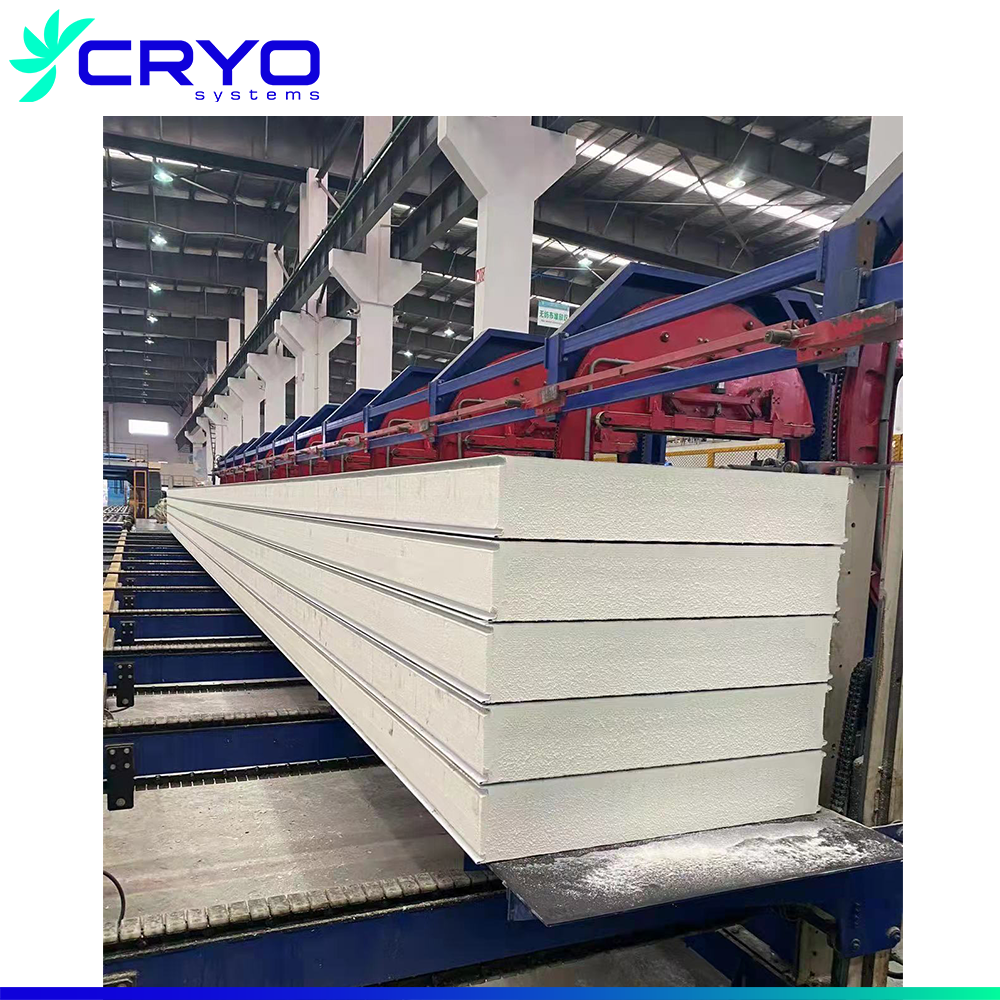

Cold storage panels

There have two popular types of cold room panels. One is PU panel, another is PIR panel.

The differences of these two types are fireproofing grade, cam lock, and installation cost and lifetime. Our PU panel can reach B2 fireproofing grade, with durable zinc-coated cam lock, and 42 kg/m3 high density PU foam, and very easy to install. It can keep cold room lifetime to 20 years at least.

Details

1. Panels thickness

Panels thickness	heat transfer coefficient (w/m2·k) PU/PIR	Temperature difference inside and outside cold room	Suitable temperature for cold room
75mm	0.267/0.3	40°C	-5~25°C
100mm	0.2/0.23	50°C	-15~25°C
150mm	0.133/0.15	70°C	-25~25°C
180mm	0.11/0.125	80°C	-35~25°C
200mm	0.1/0.113	90°C	-50~25°C

2. Panels surface steel

Types	Color plate	Baosteeel color plate	Galvanized steel	Aluminum steel	Salinization steel	Stainless Steel 304
Steel thickness(mm)	0.426, 0.476	0.5, 0.6 0.8	0.8, 1	0.7, 0.8	0.6	0.5, 0.6, 0.7 0.8,1
Features	Widely use	Famous brand	More durable	Looks nicer	For seafood	For seafood, medicine

3. Panels density

Our panel’s density is 42kg per CBM. You can cut a panel to measure. For example:

Density calculation
Density
=Weight/Volume
=0.252/(0.2×0.25×0.12)
=42kg/m3

Product packaging

1. Production for sandwich panel for cold storage

2. Plastic or Air bubble film package

3. Polywood package

For LCL shipment, protect panel better.

FAQ

1. What is the thickness of the color plate?
Answer: Bao-steel brand color plate: 0.5mm, 0.6mm, 0.8mm. The Bao-steel brand is the best in China.
Other suppliers may use 0.326mm, and 0.426mm, not the Bao-steel brand, which is too weak.

2. For PU panels, the higher density the better insulation, right?
Answer: No. The best density is 42kg/m3. We can do the 42kg/m3 to ensure the best insulation.

3. If PU panel adds flame retardant, what will cause?
Answer: Flame retardant is bad material. It will cause dense smoke and poor insulation.

4. What is the warranty for the PU panels?
Answer: We can guarantee you 3 years warranty and design the PU panels used for 20 years. Compared with suppliers, some give 1 year warranty, some even have no warranty grantee.
