Quick Details
-
Condition:
-
New
-
Weight:
-
55 kg
-
Suitable Excavator(ton):
-
1-30 Ton
-
After-sales Service:
-
6 months free replacement
-
Quality Control:
-
ISO & 100% inspection bef
-
Materials:
-
Hardened steel
-
Type:
-
mechanical screw WITH C
-
Pins:
-
heat treatment
-
color::
-
Black,Yellow,Red,Blue,optional
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JT
-
Model Number:
-
Customized
-
Condition:
-
New
-
Weight:
-
55 kg
-
Suitable Excavator(ton):
-
1-30 Ton
-
After-sales Service:
-
6 months free replacement
-
Quality Control:
-
ISO & 100% inspection bef
-
Materials:
-
Hardened steel
-
Type:
-
mechanical screw WITH C
-
Pins:
-
heat treatment
-
color::
-
Black,Yellow,Red,Blue,optional

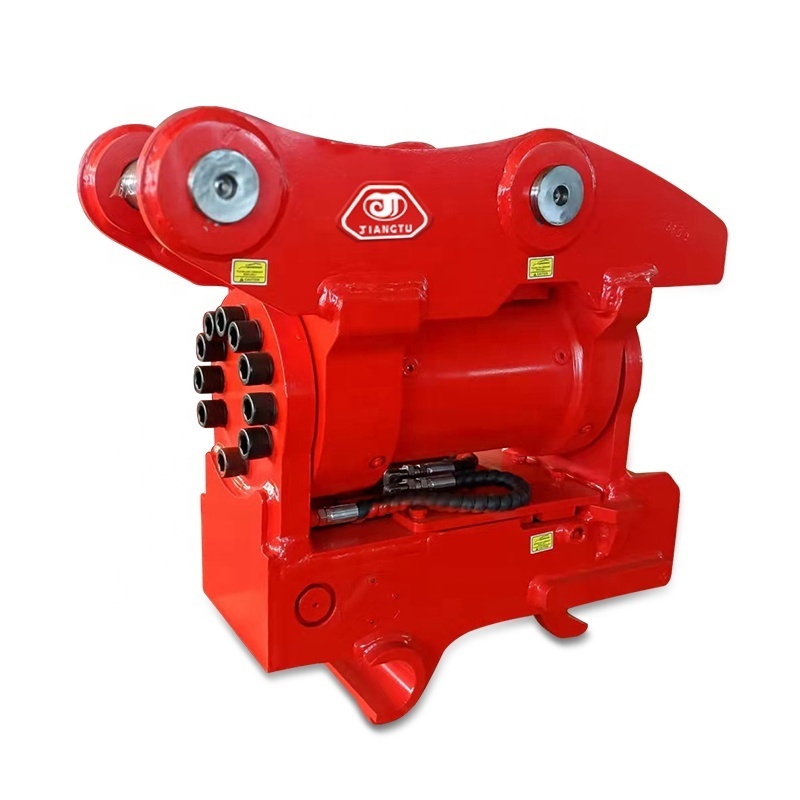

Tilt quick coupler to suit for 1-25 Ton excavator
Product Application
Tilt Quick Coupler Parameter Sheet
|
Category/Model
|
JT-00
|
JT-01
|
JT-02A
|
JT-02B
|
JT-04A
|
JT-04B
|
JT-06
|
JT-08
|
|
Tilt Degree
|
180°
|
180°
|
180°
|
180°
|
180°
|
180°
|
140°
|
140°
|
|
Drive Torque
|
930 NM
|
2870 NM
|
4400 NM
|
4400 NM
|
4400 NM
|
7490 NM
|
10623 NM
|
18600 NM
|
|
Tilt Displacement
|
0.627 L/MN
|
0.627 L/MN
|
1.016 L/MN
|
1.016 L/MN
|
1.016 L/MN
|
1.896 L/MN
|
2.3 L/MN
|
3.62 L/MN
|
|
Tilt Working Pressure
|
210 bar
|
210 bar
|
210 bar
|
210 bar
|
210 bar
|
210 bar
|
210 bar
|
210 bar
|
|
Tilt Necessary Flow
|
2-4 Lpm
|
5-16 Lpm
|
5-16 Lpm
|
5-16 Lpm
|
5-16 Lpm
|
15-44 Lpm
|
19-58 Lpm
|
35-105 Lpm
|
|
Working Pressure
|
25-300 bar
|
25-300 bar
|
25-300 bar
|
25-300 bar
|
25-300 bar
|
25-300 bar
|
25-300 bar
|
25-300 bar
|
|
Necessary Flow
|
15-25 Lpm
|
15-25 Lpm
|
15-25 Lpm
|
15-25 Lpm
|
15-25 Lpm
|
15-25 Lpm
|
15-25 Lpm
|
15-25 Lpm
|
|
Excavator
|
0.8-1.5 Ton
|
2-3.5 Ton
|
4-6 Ton
|
4-6 Ton
|
7-9 Ton
|
7-9 Ton
|
10-16 Ton
|
16-22Ton
|
|
Overall Dimension
(L2*W1*H1) mm |
477*280*567
|
477*280*567
|
518*310*585
|
545*310*585
|
541*350*608
|
582*350*649
|
720*450*784
|
858*500*911
|
|
Weight
|
55 Kg
|
112 Kg
|
156 Kg
|
156 Kg
|
170 Kg
|
208 Kg
|
413 Kg
|
655 Kg
|
Application
