Quick Details
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G606 Series
-
Max. Current:
-
0.5A~6A
-
Operating Temperature:
-
-45℃~+125℃
-
Protection Level:
-
0
-
Rating:
-
0.5/6A 125/250VAC VDC
-
Application:
-
Float Sewage Pump
-
Product Name:
-
Double Pole Double Throw DPDT DPST NO NC Microswitch
-
Color:
-
Black
-
Mechanical Life:
-
500,000 cycles
-
Electrical life:
-
100,000 cycles
-
Storage Temperature:
-
-45℃~+125℃
-
Storage Humidity:
-
85%RH Max
-
Dielectric strength:
-
AC ,1,000 RMS (50-60HZ)
-
Insulation Resistance:
-
30~100mΩ Min
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250VAC VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G606 Series
-
Max. Current:
-
0.5A~6A
-
Operating Temperature:
-
-45℃~+125℃
-
Protection Level:
-
0
-
Rating:
-
0.5/6A 125/250VAC VDC
-
Application:
-
Float Sewage Pump
-
Product Name:
-
Double Pole Double Throw DPDT DPST NO NC Microswitch
-
Color:
-
Black
-
Mechanical Life:
-
500,000 cycles
-
Electrical life:
-
100,000 cycles
-
Storage Temperature:
-
-45℃~+125℃
-
Storage Humidity:
-
85%RH Max
-
Dielectric strength:
-
AC ,1,000 RMS (50-60HZ)
-
Insulation Resistance:
-
30~100mΩ Min
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description
G6 Miniature Micro Switch
|
Rating
|
0.5A 125/250VDC
0.5A /6A 125/250VAC 1/4HP 250VAC 5E4 u 40T125
|
|
Operating Frequency - Electrical
|
10-30 cycles/minute
|
|
Operating Frequency - Mechanical
|
120 cycles/minute
|
|
Contact Resistance(Initiative)
|
30~100mΩ Max
|
|
Insulation Resistance (at500VDC)
|
100mΩ Min
|
|
Dielectric strength
|
AC , 750V RMS (50-60HZ)
|
|
Storage Temperature
|
-40℃~+125℃
|
|
Storage Humidity
|
85%RH Max
|
|
Service Life - Electrical
|
50,000~100, 000 cycles(Depend on part No.)
|
|
Service Life - Mechanical
|
1,000,000 cycles
|

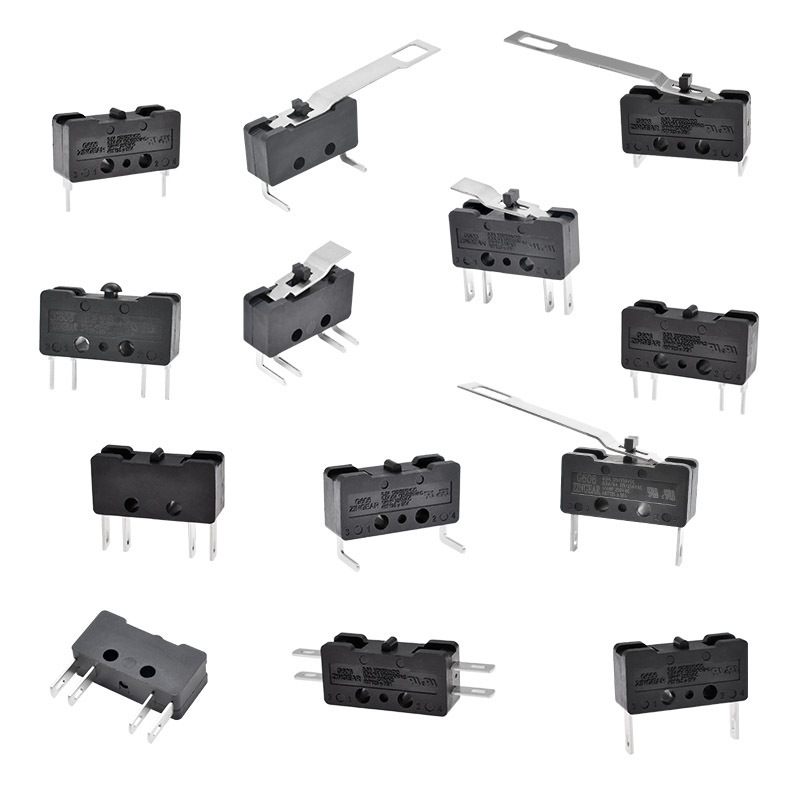

G606
Micro Switch Features
1. Small compact size and long service more than 1000000 cycles;
2. Global safety approvals, such as ENEC, CQC, UL, CUL, etc.
2. Global safety approvals, such as ENEC, CQC, UL, CUL, etc.
3. DPDT design
4. Variety of actuator and terminals, like straight, roller, simulated roller levers.
5. Custom service for you
6. Widely used in industrial control
5. Custom service for you
6. Widely used in industrial control
G606
Item
G606
DPDT Microswitch
Drawing
