Quick Details
-
Main Circuit Rating Voltage:
-
220v 380v
-
Main Circuit Rating Current:
-
12a
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SENHENG
-
Model Number:
-

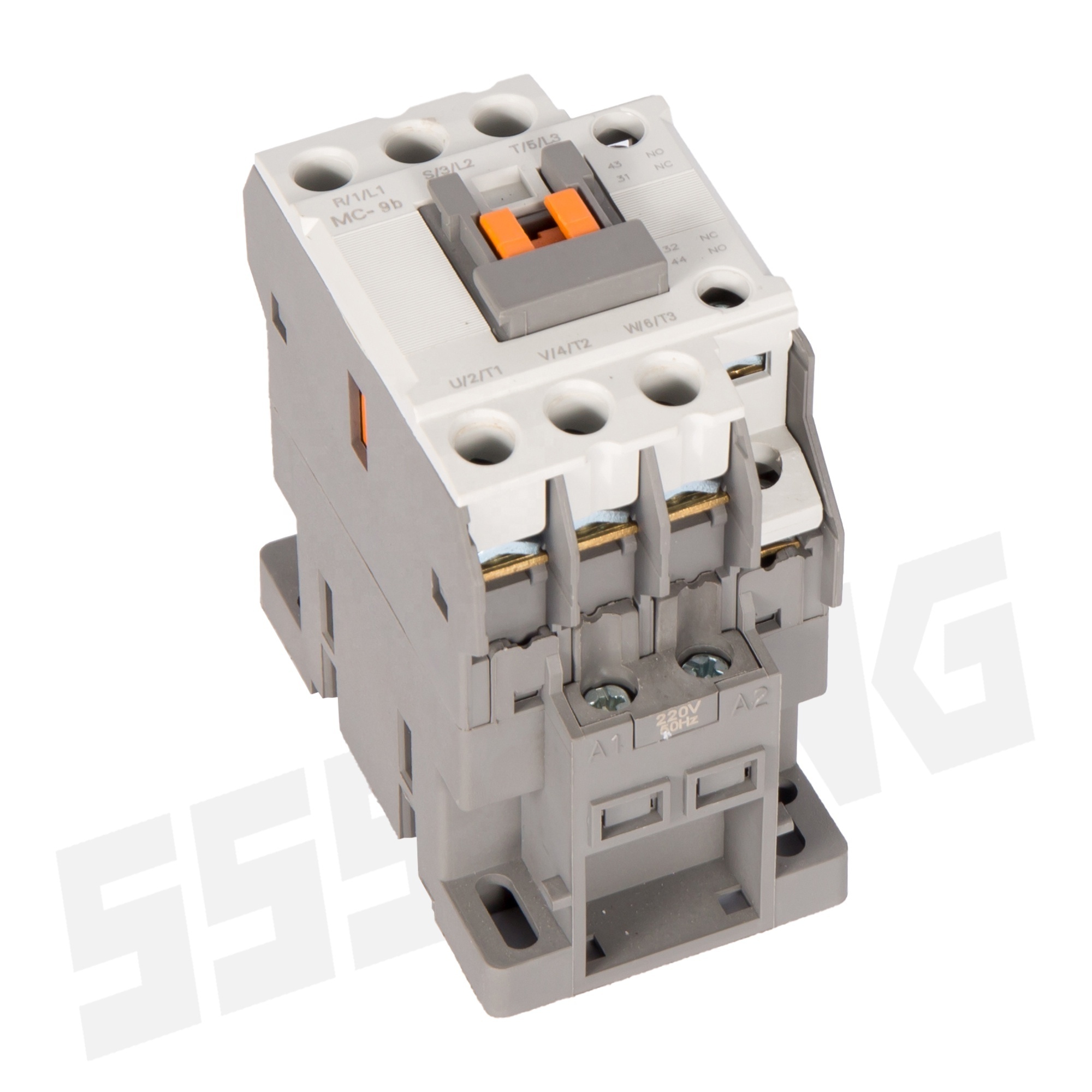

SMC ac contactor
-
Product Name:
-
SMC ac contactor
-
Coil Voltage:
-
220v 440v
-
Rated Current:
-
12a
-
Frequency:
-
50Hz/60Hz
-
Rated operation current of main circuit:
-
12a
-
Degree of protection:
-
IP00
-
Certificate:
-
CE IEC
-
mechanical life time:
-
15000000
-
Electrical life:
-
2500000
-
usage:
-
AC-3 AC-1
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
220v 380v
-
Main Circuit Rating Current:
-
12a
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SENHENG
-
Model Number:
-
SMC ac contactor
-
Product Name:
-
SMC ac contactor
-
Coil Voltage:
-
220v 440v
-
Rated Current:
-
12a
-
Frequency:
-
50Hz/60Hz
-
Rated operation current of main circuit:
-
12a
-
Degree of protection:
-
IP00
-
Certificate:
-
CE IEC
-
mechanical life time:
-
15000000
-
Electrical life:
-
2500000
-
usage:
-
AC-3 AC-1
Product Description
|
Type
|
SMC-12
|
|
Rated operating voltage,Ue,V
|
AC 690V
|
|
Rated insulation voltage Ui, V
|
690V
|
|
Rated impulse withstand voltage
|
6KV
|
|
Rated operating current In, AC-3 380/440V
|
12A
|
|
Rated operating current In, AC-1
|
25A
|
|
Short-time withstand current Icw 1s
|
280a
|
|
Short-time withstand current Icw 10s
|
120a
|
|
Short-time withstand current Icw 30s
|
80a
|
|
Short-time withstand current Icw 1 min
|
61a
|
|
Short-time withstand current Icw 3min
|
45a
|
|
Short-time withstand current Icw 10min
|
30a
|
|
Short-time withstand current Icw ≧15min
|
26a
|
|
On-off time AC coil ( operating)
|
15-30ms
|
|
On-off time AC coil (breaking)
|
4-9ms
|
|
Electrical life (times)
|
2500000
|
|
Mechanical life (times)
|
15000000
|
|
Maximum operating frequency (time / hour)
|
1800
|
|
Relay type
|
MT-32
|
|
Maximum working altitude
|
3000m
|
Our company
Yueqing Senheng Electric Co., Ltd
is located in Liushi town Wenzhou, the capital of electrical apparatus of China. As a
manufacturer, we takes the advantage of latest production technology, various product line, complete testing system and sound
management.
Our products range from low voltage switchgear components to circuit control elements, products as follows :
Contactor КТ-5000, КТ-6000, КТ-6600, КТП6000, КТПВ-600, КТК1-20, КПД121, CZO, ПМЛ, ПМE-200, ПМA-3000, ПМA-4000, ПМ12, KM, MK, ПKЛ,
ПKБ, ПВЛ, КМ12, КВТ, CJ20, CJ40, CJX2-D, CJX2-F, LC1-D, LC1-F.
Limit switch КУ-700, HB-700, ВУ-700, ВУ-150, ВУ-250, ВУ-22, ВК-200, ВК-300, ВПК, ВП15, ВП16, ВП19, ККT60.
Switch КУ-90, ПКE, ПКТ, ПК12.
Relay РЭО-401, PTT12, РТТ36, PTT-2, PTT-3, PTT-5, PTT5, ЕЛ, РТЛ, РТЛ-2, PT1.
Knife switch PПБ, PПЦ, РПС, PБ, НВА, РВ3.
Circuit breaker BA77, BA63, BA57, AE2046, AE2056, BAMУ, AП50, AП60, DZ47, DZ47LE. Electromagnetic brake ТКТ, МО, ТЭ, ИЖМВ, MQ1.
Transformer BK, JBK.
Voltage regulator TDGC2, TSGC2.etc.
Up to now, we have already got certificates like ISO9001, CE, etc. And we have get at least 10 patents at Russian and Kazakhstan
market. The annual export value has exceed 10 million USD. We sincerely hope we can help you to solve any electrical issues and
build good business relationship with you for long time.
manufacturer, we takes the advantage of latest production technology, various product line, complete testing system and sound
management.
Our products range from low voltage switchgear components to circuit control elements, products as follows :
Contactor КТ-5000, КТ-6000, КТ-6600, КТП6000, КТПВ-600, КТК1-20, КПД121, CZO, ПМЛ, ПМE-200, ПМA-3000, ПМA-4000, ПМ12, KM, MK, ПKЛ,
ПKБ, ПВЛ, КМ12, КВТ, CJ20, CJ40, CJX2-D, CJX2-F, LC1-D, LC1-F.
Limit switch КУ-700, HB-700, ВУ-700, ВУ-150, ВУ-250, ВУ-22, ВК-200, ВК-300, ВПК, ВП15, ВП16, ВП19, ККT60.
Switch КУ-90, ПКE, ПКТ, ПК12.
Relay РЭО-401, PTT12, РТТ36, PTT-2, PTT-3, PTT-5, PTT5, ЕЛ, РТЛ, РТЛ-2, PT1.
Knife switch PПБ, PПЦ, РПС, PБ, НВА, РВ3.
Circuit breaker BA77, BA63, BA57, AE2046, AE2056, BAMУ, AП50, AП60, DZ47, DZ47LE. Electromagnetic brake ТКТ, МО, ТЭ, ИЖМВ, MQ1.
Transformer BK, JBK.
Voltage regulator TDGC2, TSGC2.etc.
Up to now, we have already got certificates like ISO9001, CE, etc. And we have get at least 10 patents at Russian and Kazakhstan
market. The annual export value has exceed 10 million USD. We sincerely hope we can help you to solve any electrical issues and
build good business relationship with you for long time.
