Quick Details
-
Model Number:
-
RK-005
-
Max. Current:
-
6A
-
Mechanical Life:
-
5E4, 5E4
-
Color:
-
Red or Black
-
Light:
-
LED or Genneral one
-
base shape:
-
square or round rocker switch
-
Degrees of temperature:
-
T90
-
Markings:
-
can be optional "0 --" or "on off" etc
-
Certificates:
-
many countries certificate
-
Rating:
-
As per individual specification
-
Insulation resistance:
-
>100MΩ
-
Contact resistance:
-
≤20mΩ
-
Certification:
-
none
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NONE
-
Model Number:
-
RK-005
-
Max. Current:
-
6A
-
Mechanical Life:
-
5E4, 5E4
-
Color:
-
Red or Black
-
Light:
-
LED or Genneral one
-
base shape:
-
square or round rocker switch
-
Degrees of temperature:
-
T90
-
Markings:
-
can be optional "0 --" or "on off" etc
-
Certificates:
-
many countries certificate
-
Rating:
-
As per individual specification
-
Insulation resistance:
-
>100MΩ
-
Contact resistance:
-
≤20mΩ
-
Certification:
-
none

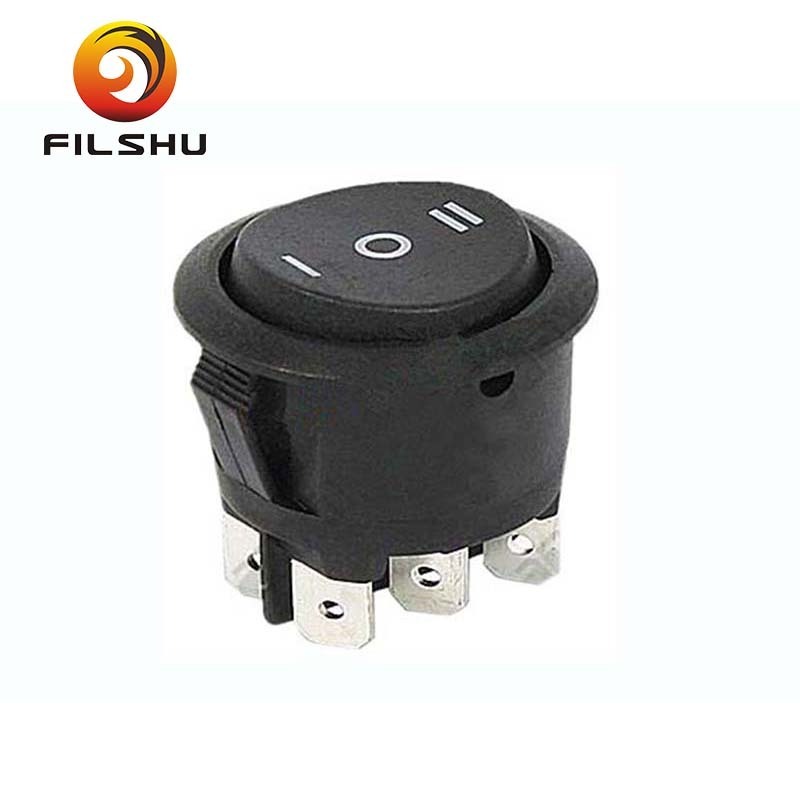

Momentary Round Rocker switch 6 Pin (ON)-OFF-(ON)
Specifications
ON-OFF rocker switch,
1.VDE, RoHS approved..ISO9001:2008;
2. 12(4)A,250/125Vac ; with UL certificate;
3. 12(4)A,250Vac;T90 1E4 with VDE,D;
4.Can be On-off Function.2 or 3 PINS; Dia 20MM,square base;
5.Material:Base plastic---Nylon 66;Button plastic---PC or Nylon 66;
Copper parts such as terminal----Copper H62;
Terminal surface treatment----- tin plating;
Contact----silver on copper ;
Spring----Tungsten steel;
Waterproof cap----PVC (It has waterproof cap if required. )
6. Material:Silver Contact,PC,PA66;
7.Used for home appliances and electronic equipments.Especially for electrical kettle;
| Electrical life 1E4 |
| Mechanical life 5E4 |
| Contact resistance ≤20mΩ |
| Insulation resistance >100MΩ |
| High voltage resistance 1500 VAC |
| Resistance to tracking PTI 175 |
| Contact gap DT with centre-OFF >3mm |
| Protection type IP20 |
| Ambient temperature -25°C...+85°C |
| Flammability UL94V-0 |
| Heat and fire resistance 850°C |
| Material of housing and rocker PA/PC |
1. Packaging : Cartons and plastic bags,depends on the customer's demand
2. Shipment : Shipping worldwidely by sea, air or Express (small quantity) like EMS,UPS,FedEx,DHL
1. Quality guaranteed : Special supervision team control quality.
2. After service guaranteed : Assure you the best services at all times.
3. Delivery time: Your shipment will be loaded in 10-30 days,depends on quantity.
4. Payment terms : T/T,PayPal,Credit card
5. OEM & ODM are available.
