Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1500x1800mm
-
Weight:
-
600 KG
-
Machine name:
-
dropper bottle filling capping machine
-
Speed:
-
20-40 bottles/min
-
Filling volume:
-
5-120ml
-
Filling nozzle number:
-
2
-
capping head:
-
1
-
certificate:
-
CE
-
controller:
-
PLC
-
warranty:
-
1-2 years
-
Service time:
-
Lifelong
-
operate panel:
-
Touch screen
Quick Details
-
Machinery Capacity:
-
12000BPH
-
Packaging Material:
-
Wood, glass drop bottle filling machine
-
Filling Material:
-
Oil, essential oil bottle filling machine
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
2500x1500x1800mm
-
Weight:
-
600 KG
-
Machine name:
-
dropper bottle filling capping machine
-
Speed:
-
20-40 bottles/min
-
Filling volume:
-
5-120ml
-
Filling nozzle number:
-
2
-
capping head:
-
1
-
certificate:
-
CE
-
controller:
-
PLC
-
warranty:
-
1-2 years
-
Service time:
-
Lifelong
-
operate panel:
-
Touch screen
Hot Sale YB-YX2
Automatic 10ml 30ml 60ml Small Bottle Liquid Spray Eye Drop Vial Dropper Essential Oil Filling Machine
Products Description
|
Model
|
YB-YX2
|
YB-YX4
|
YB-YX8
|
|
Filing head number
|
2
|
4
|
8
|
|
Capping head number
|
1
|
2
|
2
|
|
Filling volume
|
2-120ml
|
2-120ml
|
2-120ml
|
|
Capacity
|
15-35 bottles/min
|
20-60 bottles/min
|
30-70 bottles/min
|
|
Filling accuracy
|
≤ ±1%
|
≤ ±1%
|
≤ ±1%
|
|
Pass rate
|
≥ 98%
|
≥ 98%
|
≥ 98%
|
|
Power supply
|
1 Ph. AC220V/ 50/60Hz
|
1 Ph. AC220V/50/60Hz
|
1 Ph. AC220V/ 50/60Hz
|
|
Total power
|
1.9 KW
|
2.1 KW
|
2.5 KW
|
|
Net weight
|
About 600kg
|
About 700 kg
|
About 750 kg
|
|
Overall Dimension
|
L2400x W1500x H1800mm
|
L2800x W2000x H1900mm
|
L3200x W1500x H1900mm
|
Machine features:
1. Workflow: bottle feeding→filling→adding dropper cap→screw capping→self adhesive labeling→ribbon printing (optional)→inkjet printing (optional)→bottle collecting→cartoning (optional).
2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.
3. Peristaltic pump measuring, accurate measurement, easy to control.
4. Filling system has suction / anti-drip device.
5. Color touch screen display, PLC control system, no bottle no filling/ no adding plug/ no capping.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. This machine can work with shrink sleeve labeling machine, cartoning machine, etc.
Samples
Details Images
Hot Sale!
YB-YX2 Automatic 10ml 30ml 60ml Small Bottle Liquid Spray Eye Drop Vial Dropper Essential Oil Filling Machine
Machine work for 2-120ml bottles

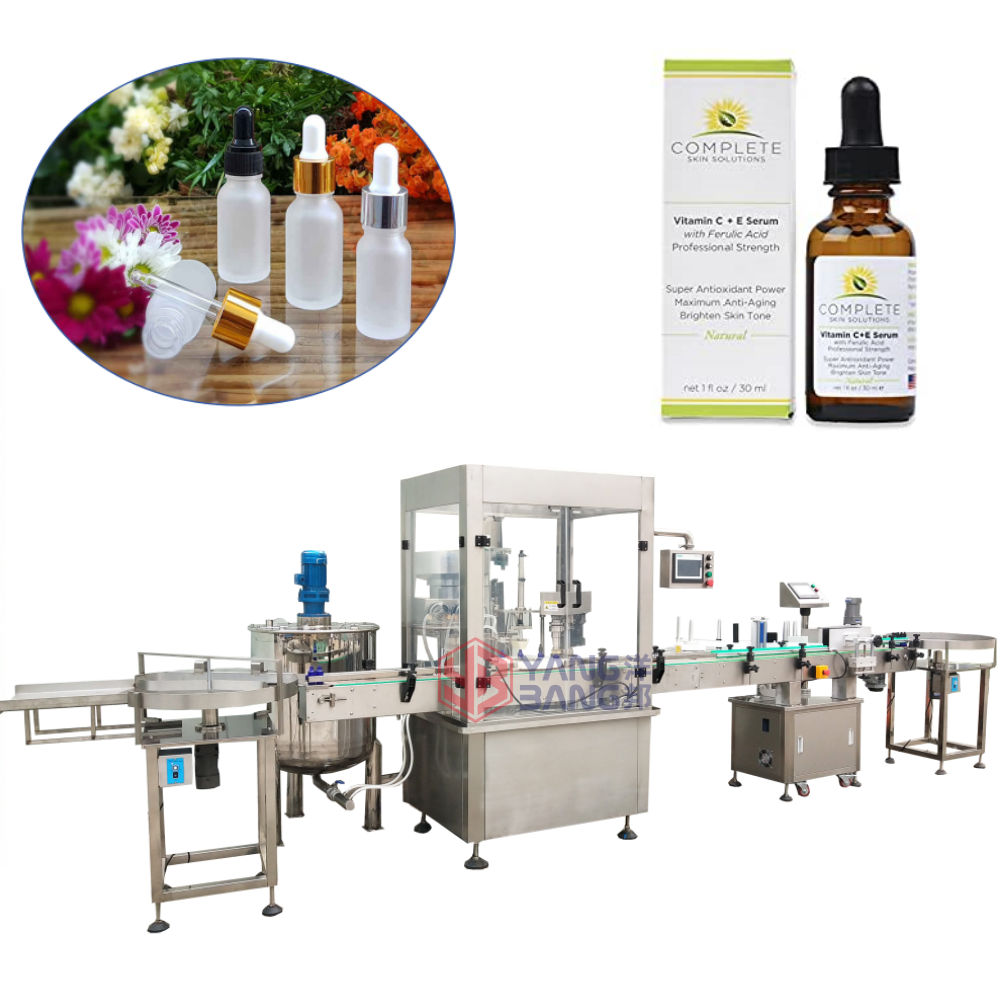

Fully automatic glass dropper bottle filling line in our factory
Complete filling line with mixing tank, shrink sleeve labeling machine
Automatic cartoning machine/ box packing machine
