- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOFON
-
Model Number:
-
ML600
-
Material:
-
fiberglass wool panels
-
fireproof:
-
A2 -s1d0
-
Size:
-
600*600,1200*600mm
-
Tickness:
-
15mm 20mm
-
Sound absorption:
-
NRC0.85
-
Install:
-
Grid ,spring
-
Edge:
-
Square
-
Clour:
-
White RAL
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOFON
-
Model Number:
-
ML600
-
Material:
-
fiberglass wool panels
-
fireproof:
-
A2 -s1d0
-
Size:
-
600*600,1200*600mm
-
Tickness:
-
15mm 20mm
-
Sound absorption:
-
NRC0.85
-
Install:
-
Grid ,spring
-
Edge:
-
Square
-
Clour:
-
White RAL

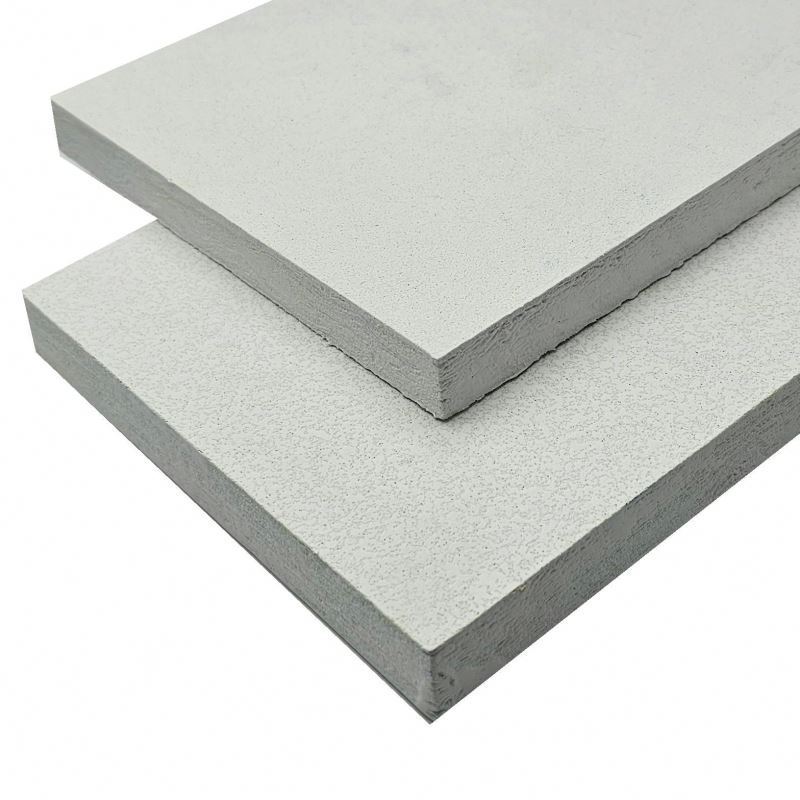

DEGOFON Stonewool Acousticl Ceilings
600X600mm 1200X600mm
Product Description
The Production process
The base material of Degofon ceiling products is stone wool (resin bonded mineral wool) produced according to the principles of a volcanic eruption. By means of patented technology, stone is melted and transformed into wool with binders being added. In the following processes, the wool is shaped and cut according to specification and turned into ceiling tiles of various sizes, thicknesses and densities. Finally, a finishing treatment is applied giving the tiles an elegant and attractive surface finish.
High performance ceiling tiles
DEGOFON stonewool ceiling products have resin bonded mineral wool core and consists of at least %98 rockwool. With its patented technology, solid rock is melted and being converted to wool. Then the wools are cut with different shapes, sizes and densities and applied with asurface finish and finally turned into different .
DEGOFON ceiling
s – being made from unadulterated resin bonded mineral wool – are between 40-80% lighter than traditional wet felted mineral fibre & gypsum ceiling tiles. Besides; this pure structure of the material makes DEGOFON ceiling unique in terms of 4 main properties:
class A1 Fire Resistance
100 % Relative Humidity
Excellent Acoustic Performance NRC0.85
class A1 Fire Resistance
100 % Relative Humidity
Excellent Acoustic Performance NRC0.85
Antibacterial properties
As stone wool is non hygroscopic, the tiles withstand up to 100% relative humidity and maintain dimensional stability. The stone wool does not contain organic nutrients and so is not attacked by rot, fungi or bacteria. Thanks to DEGOFON stonewool ceiling excellent humidityresistance and extremely low susceptibility to microorganisms, the brown stains those occurred because of bacteria pukes are never seen on DEGOFON stonewool ceiling surface.
As stone wool is non hygroscopic, the tiles withstand up to 100% relative humidity and maintain dimensional stability. The stone wool does not contain organic nutrients and so is not attacked by rot, fungi or bacteria. Thanks to DEGOFON stonewool ceiling excellent humidityresistance and extremely low susceptibility to microorganisms, the brown stains those occurred because of bacteria pukes are never seen on DEGOFON stonewool ceiling surface.
Acoustic Rockwool ceiling tiles 600*(600mm/1200mm)
Product description
·Material: 160K Stone wool panels
·Surface：white(WH) Black RAL
·Back：60K Sound absorption fiberglass mat
·Edge：Spraying
Features & Benefits:
- Elegant lightly textured white surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.83)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.83)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.
PHYSICAL DATA
|
MATERIAL
|
Stone wool &rockwoo with acoustically transparent membrane
|
|
|
|
|||
|
SURFACE FINISHE
D
|
DEGOACOUSTIC factory applied acrylic latex paint,
|
|
|
|
|||
|
COLOR
|
White .black ，Custom
|
|
|
|
|||
|
SOUND ABSORPTION
|
NRC：0.85-0.9
|
|
|
|
|||
|
SIZE(s）
|
Item606012(600mm×600mm×15mm),Item606015(600mm×600mm×12mm),
|
|
|
|
|||
|
|
Item 606025(600mm×600mm×25mmItem6012015(600mm×1200mm×15mm)
|
|
|
|
|||
|
|
Item6012020(600mm×1200mm×20mm),Item6012025(600mm×1200mm×25mm)
|
|
|
|
|||
|
|
Item6024025(600mm×2400mm×25mm),tem6018025(1200mm×1800mm×25mm),
|
|
|
|
|||
|
EDGE
|
·A15/24 Square Lay-in
|
·E 15/24 Tegular
|
|
·D24 Concealed
|
|||
|
WEIGHT
|
2.25kgs/m2Items606015
|
·3.2kgs/m2 (Items606020)
|
|
4.5kgs/m2(Item12024025
|
|||
|
LIGHT REFLECTANCE
|
LR 0.85
|
|
|
|
|||
|
MOISTURERESISTANCE
|
RH99
|
|
|
|
|||
|
FIRE CLASS
|
(ASTM E1264) Class A1 per CN，lame Spread: 25 or less Smoke Developed: 50 or less
|
|
|
|
|||
|
MILDEW RESISTANC
|
Fiberglass substrate is inherently resistantto the growth of mold and mildew.
|
|
|
|
|||
|
RECOVERABLE
|
71%
|
|
|
|
|||
|
WARRANTY
|
15Year ，
|
Useful life 50Y
|
|
|
|||
Edge deltails
Square edge Lay-in A24
A lay-in grid system provides the room with a simple and structured expression that highlights the shape of the room. Lay-in grid ceilings have a SQ edge. SQ (square lay-in) - SQ tiles are a cost-effective solution that provides easy access
The grid system is less dominant with the narrower T24 profile. SQ edge tiles are demountable.
Tegular edge E15
Tegular grid ceilings use light and shadow to create a distinctive appearance. Combine the shape of the ceiling tile edges with the width and color of the suspension system to create a unique ceiling that contributes to the overall architectural expression of the space.
C oncealed edge D24
A concealed grid ceiling system can be suspended, directly fastened or glued to the ceiling. With little or no visible grid,they provide a concealed appearance and can integrate service installations such as lighting, ventilation and smoke
detectors.
Clour
Elegant white 600#
high acoustic Dego ceiling tile that is suitable for a variety of commercial applications. It offers a tegular edge design with sealed edges.
Smooth white 100#
acoustic rockwool ceiling tile that achieves essential demands of a commercial ceiling. Each tile is individually demountable and
is available with either natural or primed edges.
Smooth Black 100#
black
rockwool
ceiling tile that provides high sound absorption properties. It is ideal for commercial applications such as
movie theatres or lecture theatres
movie theatres or lecture theatres
Design
Lay in Ceiling tile
The suspension system is made from 15/24mm wide galvanised steel with a smooth white* visible surface. The system comprises main
runners, cross tees, perimeter trims and a variety of accessories
runners, cross tees, perimeter trims and a variety of accessories
Degoacoustic Shapes
Cloud is a sophisticated sound absorbing free hanging feature for commercial ceiling spaces. Perfect for areas where a traditional
suspended ceiling is not required but solid acoustic properties are. The Ambience cloud range is available in eight different
shapes and sizes.
suspended ceiling is not required but solid acoustic properties are. The Ambience cloud range is available in eight different
shapes and sizes.
Baffle Ceiling
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Acoustic clouds
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
WALL PANELS
Acoustic Shapes
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Dego Factory
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.
18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，
High quality products to serve many customers
