Quick Details
-
Production Capacity:
-
High
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TIANJUN
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
5870*4700*2720mm
-
Weight:
-
6000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
edge cutting
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Uzbekistan
-
Certification:
-
CE ISO9001
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
18.5kw
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
High
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TIANJUN
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
5870*4700*2720mm
-
Weight:
-
6000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
edge cutting
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Uzbekistan
-
Certification:
-
CE ISO9001

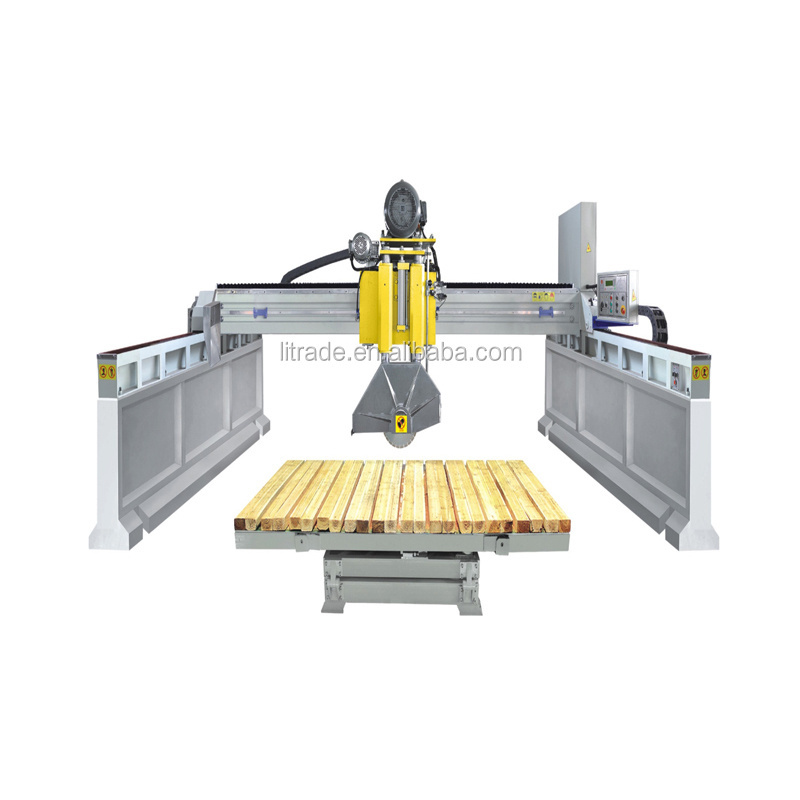

TJQH-600(90 degree) Infrared Fully Automatic Bridge Cutting Machine
| Modle | TJQH-600 | |
| Blade diameter | mm | 400~600 |
| Blade up/down stroke | mm | 380 |
| Main motor power | KW | 18.5 |
| Feeding motor | KW | 1.5 |
| Slicing motor | KW | 1.1 |
| Worktable size(Max. cutting size) | mm | 3200*3200 |
| Worktable rotation degree(by hydraulic) | ° | 90 |
| Dimension(L*w*H) | mm | 5870*4700*2720 |
| Worktable upturing angle | ° | 0-85 |
| Weight | kg | 6000 |
| Notes: | ||
| output:150m²/set 12hours | ||
Electric system
--Laser collimator as for facilitate the position of the blade on the cutting line.
--Reading the data is by magnetic ruler which is imported from German.
--Contemporaneousness possibility of vertical and horizontal disk holder head movement for productivity increase.
--The electric parts of this bridge saw we adopt famous brand, like Schneider inverter, Omron PLC.
