Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hongle
-
Dimension(L*W*H):
-
3000*850*1600mm
-
Weight:
-
700 KG
-
Product name:
-
Plastic Water Cup Sealer Packing Machine
-
Name:
-
115mm PP Semi Sutomatic Instant Noodle Sauce Cup Sealing Machine
-
Function:
-
Filling Sealing Date Printing
-
Machine name:
-
Automatic Soft Drink Filling Machine
-
Production capacity:
-
1800-4200 Pcs/h
-
Filling volume:
-
25-250ML. 50-500ML.100-1000ML.250-2500ML
-
Keywords:
-
cup juice filling and sealing machine automatic
-
Suitable for:
-
Food Powder Granule Filling Packing Machine
-
Usage:
-
120mm pet cup sealing machine
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Glass, Metal, Paper, Plastic
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
99%
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hongle
-
Dimension(L*W*H):
-
3000*850*1600mm
-
Weight:
-
700 KG
-
Product name:
-
Plastic Water Cup Sealer Packing Machine
-
Name:
-
115mm PP Semi Sutomatic Instant Noodle Sauce Cup Sealing Machine
-
Function:
-
Filling Sealing Date Printing
-
Machine name:
-
Automatic Soft Drink Filling Machine
-
Production capacity:
-
1800-4200 Pcs/h
-
Filling volume:
-
25-250ML. 50-500ML.100-1000ML.250-2500ML
-
Keywords:
-
cup juice filling and sealing machine automatic
-
Suitable for:
-
Food Powder Granule Filling Packing Machine
-
Usage:
-
120mm pet cup sealing machine

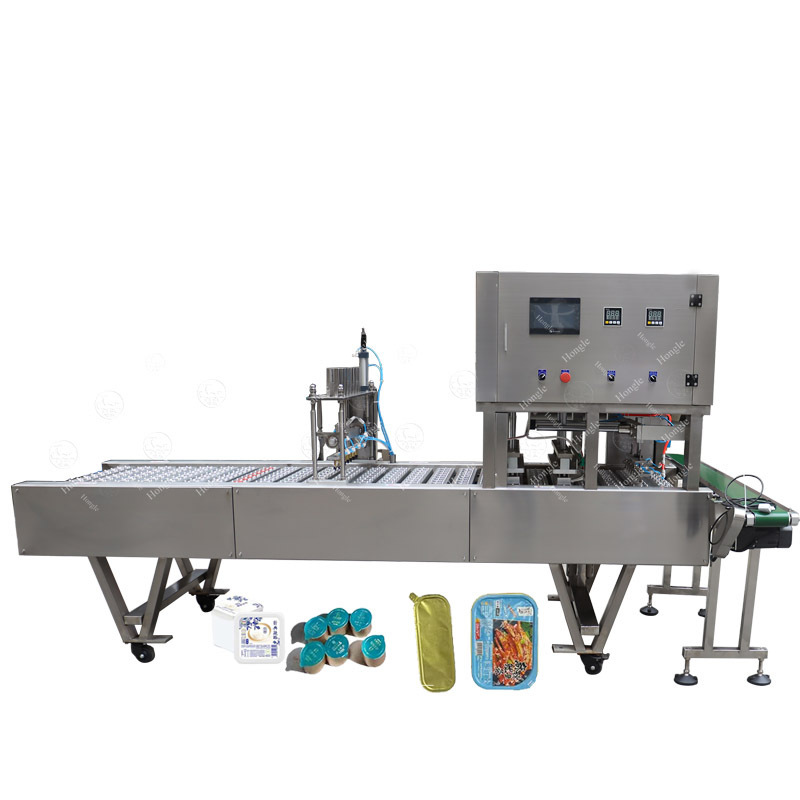

Continuous Automatic Cup Filling Sealing Machine With Nitrogen Gas Deli Cup Sealing Machine
Product Description
Introduction ：
The HLBG series cup filling and sealing machine have different specification sealing pump. We can design different machines as per client’s requirements.It is suitable for filling and sealing any level drink and pasty products in different shapes and capability vessels. For example drink, water, milk, yogurt and so on.
The HLBG series cup filling and sealing machine have different specification sealing pump. We can design different machines as per client’s requirements.It is suitable for filling and sealing any level drink and pasty products in different shapes and capability vessels. For example drink, water, milk, yogurt and so on.
Conventional configuration of cup filling sealing machine
Pneumatic components (Asia off)
PLC (Omron)
Screen (Taiwan Wei Lun)
Contactor (Schneider)
Acid resistance Aluminum molds
PLC (Omron)
Screen (Taiwan Wei Lun)
Contactor (Schneider)
Acid resistance Aluminum molds
|
Model
|
Voltage
|
Power
|
Capacity
|
Size
|
|
HLBG-2
|
220V/50HZ
|
1KW
|
1200-1500cups/h
|
3000*500*1600mm
|
|
HLBG-3
|
380V/50HZ
|
4KW
|
2000-2500pcs/h
|
3000*700*1600mm
|
|
HLBG-4
|
380V/50HZ
|
5kw
|
3500-4000cups/h
|
3000*850*1600mm
|
|
HLBG-6
|
380V/50HZ
|
7.5KW
|
5000-5500cups/h
|
3000*1050*1600mm
|
|
HLBG-8
|
380V/50HZ
|
9KW
|
6500-7000cups/h
|
3000*1250*1600mm
|
|
HLBG-10
|
380V/50HZ
|
12kw
|
9000-9500cups/h
|
3000*1400*1600mm
|
TECHNICAL SPECIFICATIONS of cup filling sealing machine
Model:HLBG-4
Voltage:380V/50HZ
Power:5KW
Capacity:3750 cups/hour
Air consumption:0.6m³/s
Air pressure:0.5-0.8mpa
Size:3000*850*1600mm
Material:SUS304
Conveyor belt(white)
Including the feeding for powder(4 lines)
Suitable for cup specifications:
Height:99mm, Upper diameter:95mm, Bottom diameter:66mm
Height:99mm, Upper diameter:96mm, Bottom diameter:75mm
Voltage:380V/50HZ
Power:5KW
Capacity:3750 cups/hour
Air consumption:0.6m³/s
Air pressure:0.5-0.8mpa
Size:3000*850*1600mm
Material:SUS304
Conveyor belt(white)
Including the feeding for powder(4 lines)
Suitable for cup specifications:
Height:99mm, Upper diameter:95mm, Bottom diameter:66mm
Height:99mm, Upper diameter:96mm, Bottom diameter:75mm
Feature of the cup filling sealing machine:
The machine is made with beautiful stainless aluminum molding and with near bright outlook. All the contacting part which can touch the product of the machine is made by stainless steel; it can completely meet the hygienic standard.
All the functions are worked on by machine. It is fully automatic from dropping the plastic vessel, filling, coding, sealing film,cutting film, producing the product to getting the scrap.
The machine is highly efficiency and let you have more economic benefit.
It has long life to use, simple adjustment, easily maintenance.
All the functions are worked on by machine. It is fully automatic from dropping the plastic vessel, filling, coding, sealing film,cutting film, producing the product to getting the scrap.
The machine is highly efficiency and let you have more economic benefit.
It has long life to use, simple adjustment, easily maintenance.
Production show
Recommend Products
*If you can not open the links above on Alibaba APP on mobile phone, please use IE browser to visit our website:
https://chinafoodmachine.en.alibaba.com
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
