Quick Details
-
Output relay capacity:
-
220Vac 3A
-
Power supply:
-
24V DC
-
The sampling rate:
-
10 times per second
-
Long-term stability:
-
- / + 0.25% FS/year
-
Medium temperature:
-
- 20 ~ + 85 ℃
-
Ambient temperature:
-
- 20 ~ + 85 ℃
-
Pressure Connection:
-
G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable)
-
Protection Grade:
-
IP65
-
Overload capacity:
-
150%
Quick Details
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Pressure range:
-
1 bar ~ 0...10 the bar...100 bar...1000 bar
-
Output relay capacity:
-
220Vac 3A
-
Power supply:
-
24V DC
-
The sampling rate:
-
10 times per second
-
Long-term stability:
-
- / + 0.25% FS/year
-
Medium temperature:
-
- 20 ~ + 85 ℃
-
Ambient temperature:
-
- 20 ~ + 85 ℃
-
Pressure Connection:
-
G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable)
-
Protection Grade:
-
IP65
-
Overload capacity:
-
150%

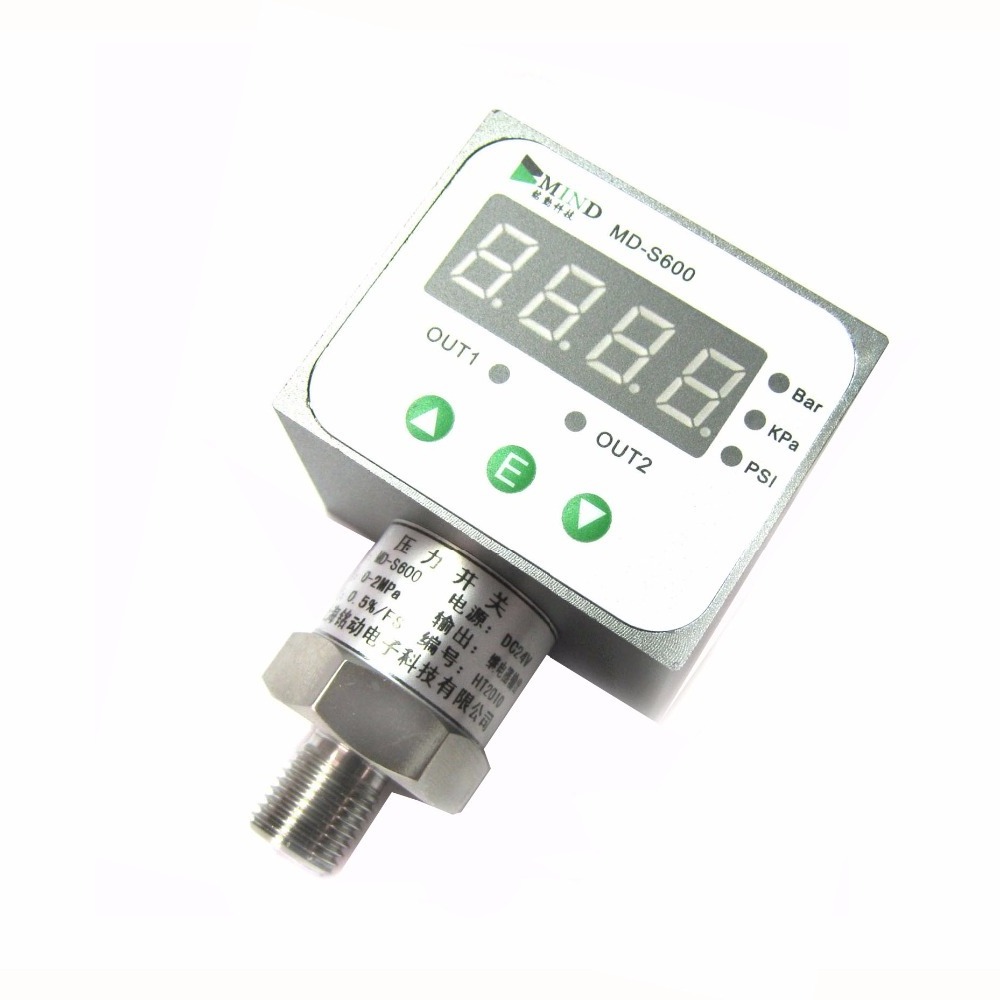

The product description MD - S600 pressure switch is electronic pressure switch, intelligent digital pressure gauge, high-precision display, control, suitable for as a hydraulic pressure switch, hydraulic pressure switch, digital display pressure controller. Md-s600 intelligent pressure switch is easy to adjust and easy to install. There are two sets of relays, which can realize the requirements of high and low point control of various gases and liquids. At the same time, it can realize the functions of zero, calibration, change display unit, and return difference. The intelligent pressure switch is equipped with high-precision instrumentation amplifier amplified signal, the built-in temperature sensor temperature compensation, is testing pressure, liquid level signal, pressure, liquid level monitoring of high precision equipment. MD - S600 intelligent pressure switch shell adopts full metal structure, pressure diaphragm using 316 l stainless steel body, stable performance and can be widely used in mechanical chemical industry, automation control system and other automation system of measuring pressure.
|
Measuring range (FS) |
P ressure range (md-s600) 1 bar ~ 0...10 the bar...100 bar...1000 bar Pressure range (MD -s600l) -20kpa...- 10 kpa...- 5 kpa...-1kpa ~ 0 ~ 1kpa...5 kpa...10 kpa...20 kpa |
|
Overload capacity |
150% |
|
Accuracy grade |
±0.5%FS ± 0.2%FS |
|
Output relay capacity |
220Vac 3A |
|
Power supply |
24V DC |
|
Signal output |
4-20 ma / 0 to 5 VDC |
|
The sampling rate |
10 times per second (which can be customized according to the customer's needs) |
|
Measuring the dielectric |
With 316 stainless steel compatible fluid (special optional preservative) |
|
Medium temperature |
- 20 ~ + 85 ℃ |
|
Ambient temperature |
- 20 ~ + 85 ℃ |
|
Long term stability |
Typical: - / + 0. 25 % FS/year |
|
Storage temperature |
- 20 ~ + 100 ℃ |
|
Protection Grade |
protection class IP6 5 |
|
Pressure Connection |
G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable) |
|
Shell material |
304 l and 316 l stainless steel |
|
S hort circuit protection |
The wiring protects against polarity and short circuit protection |
