Quick Details
-
Product name:
-
Tension Clamp
-
Material:
-
Aluminum Alloy
-
Applicable stranded wire diameter:
-
8.0~24.0(mm)
-
Nominal failure load:
-
40-90KN
-
Application:
-
Overhead Line Accessories
-
Color:
-
Silver
-
OEM:
-
Accept
-
Quality:
-
High Quaity
-
Port:
-
Ningbo, Shanghai
Quick Details
-
Brand Name:
-
YIKA
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
NLL Series
-
Product name:
-
Tension Clamp
-
Material:
-
Aluminum Alloy
-
Applicable stranded wire diameter:
-
8.0~24.0(mm)
-
Nominal failure load:
-
40-90KN
-
Application:
-
Overhead Line Accessories
-
Color:
-
Silver
-
OEM:
-
Accept
-
Quality:
-
High Quaity
-
Port:
-
Ningbo, Shanghai

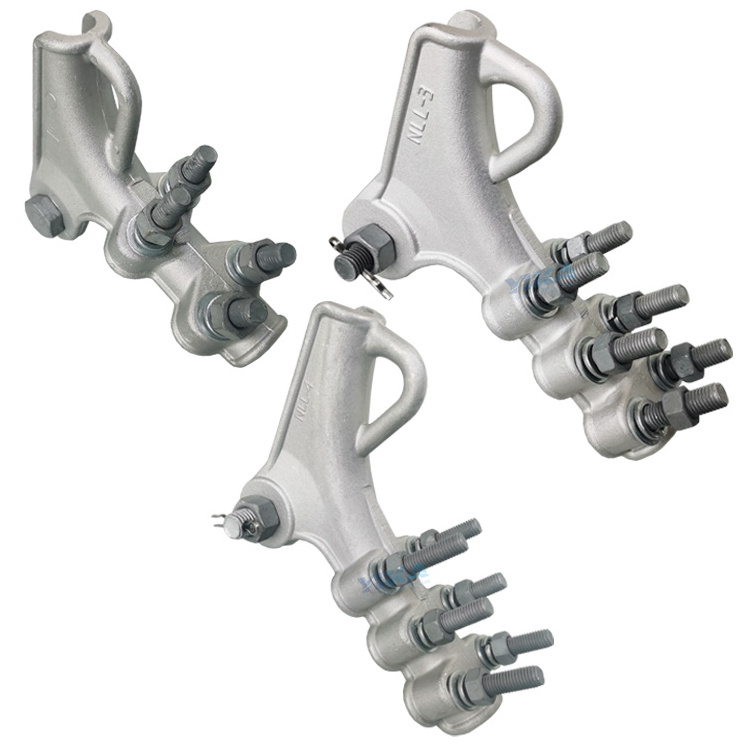

NLL Series Aluminum Strain Tension Clamp Alloy Wedge Bolt Type Dead End Strain Clamp For Overhead Power Line Cable Attachment
Detailed Images
Product Description
NLL series bolt-type aluminum alloy tension clamps are suitable for overhead lines of 10KV and below. They are used to fix
aluminum stranded wires or steel-core aluminum stranded wires on the tension rods. They are used in conjunction with overhead
insulated aluminum conductors and insulating covers to provide insulation protection.
Structural features:
1. The clamp body is made of high-strength aluminum alloy
2. Smooth shell and long service life
3. Easy to install and use
4. No power loss, energy-saving certified product
2. Smooth shell and long service life
3. Easy to install and use
4. No power loss, energy-saving certified product
Specification
The main parameters
|
Model
|
Applicable stranded wire diameter
(including aluminum tape, mm)
|
Main dimensions (mm)
|
|
|
|
|
Number
of U-shaped screws
|
Nominal failure load
(KN)
|
Weight
(Kg)
|
||||
|
|
|
L
|
L1
|
R
|
M
|
C
|
|
|
|
||||
|
NLL-1
|
8.0~12.0
|
90
|
40
|
85
|
16
|
18
|
2
|
40
|
1.5
|
||||
|
NLL-2
|
11.0~16.0
|
100
|
40
|
115
|
16
|
18
|
2
|
60
|
1.8
|
||||
|
NLL-3
|
15.0~20.0
|
155
|
45
|
150
|
16
|
27
|
3
|
80
|
2.5
|
||||
|
NLL-4
|
19.0~24.0
|
170
|
50
|
175
|
16
|
30
|
3
|
90
|
3.5
|
||||
Insulation cover performance characteristics:
1. Power frequency withstand voltage: ≥18KV, maintain voltage for 1 minute without breakdown
2. Insulation resistance: >1.0 x 10 14 Ω
3. Ambient temperature: -30℃~90℃
4. Weather resistance: good performance after 1008 hours of artificial climate aging test
2. Insulation resistance: >1.0 x 10 14 Ω
3. Ambient temperature: -30℃~90℃
4. Weather resistance: good performance after 1008 hours of artificial climate aging test
