iron sheet square round water tube making cold roll forming machine

iron sheet square round water tube making cold roll forming machine

1. specification of the roll forming machine

1.Weight capacity of decoiler	4.5 T
2.Appearance Size(L*W*H)	8000*800*1200
3.Raw material /feeding sheet material	colored steel & galvanized steel
4.Roller material	45# high grade steel
5.Shaft material	45# high grade steel
6.Kind of drive	chain drive
7.Cutting system	automatic hydyaulic cutting
8.Cutting blade material	Cr 12  high grade steel
9.Frame material	300 H-high grade steel
10. Control system	totally automatic PLC control system
11.Main power	3 kw 5.5kw
12. Thickness of Plate	0.2-1.0 mm
13.Speed of production	1 m/min
14.Thickness of colored steel	0.2-0.8mm
15.Frame material	300 H-steel

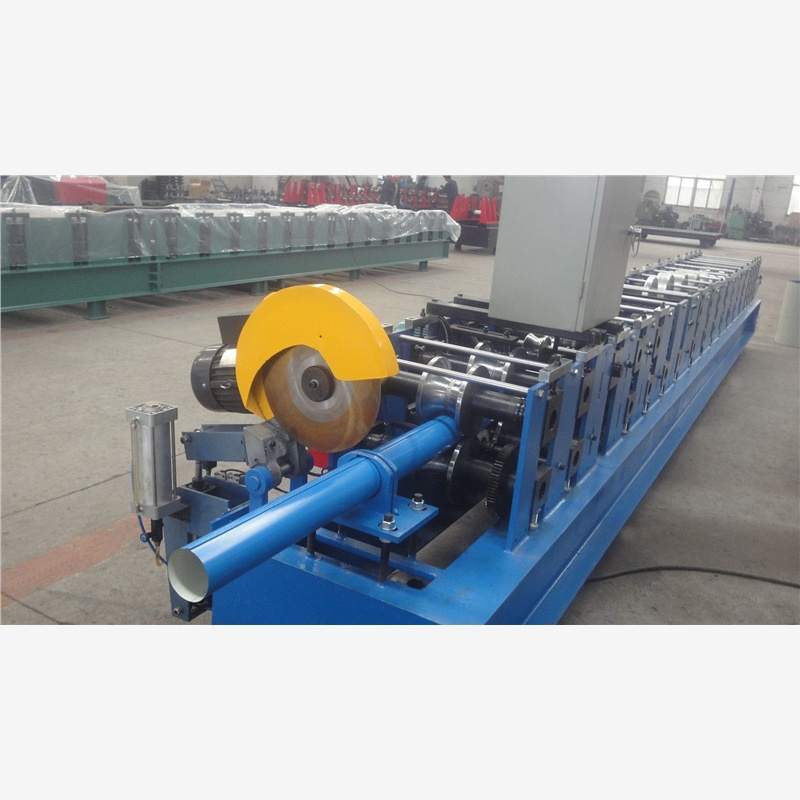

2. Pictures iron sheet square round water tube making cold roll forming machine

Machine and Tile

Components of machine in this line

1.	Uncoiler	It support to material uncoil
2.	Feeding platform	It support to feed material to molding machine
3.	Main molding parts	It support roll forming the products according your requirement
4.	Control system	It control the machine's operation , such as cutting , speed ,ect.
5.	Hydraulic system	It offer the power for cutting system
6.	Receiving table	It used to receive the finished products

The machine is bare packing. Usually one machine can be put into one 20 -40 feet container.

We use steel wire to fix the machine in the container.

5.Packing and delivery roll forming machine

The machine is bare packing.

Usually one machine can be put into one 20 -40 feet container.

We use steel wire to fix the machine in the container.

6.Our guests

	Main Markets:	South Asia Southern Europe Mid East Oceania Africa Southeast Asia Eastern Europe North America
	Total Annual Sales Volume:	US$1 Million - US$2.5 Million
	Export Percentage:	31% - 40%

7. Other productions

With the policy of client-oriented business at Tianyu Machinery Factory,We put highly  emphasis on not only outstanding quality but also excellent and efficient after sales

service with specialfocus on a wide range of roofing roll forming machines.In addition to

installation,operation training, regular maintenance and spear parts provided, we will keep

offering our best service even overdue the period of guarantee. Always we sincerely welcome

suggestions and feedbacks from our customers regardless of good or even negative on comments

so as to keep on improving and innovating our production line.Sticking to the principle to

provide all clients with an excellent after sales service, we satisfy customers' needs in

compliance their requirements at all costs. Over the past 18 years, therefore, we have grown

our business on roll formers gradually, which we believe firmly it's just the proven of our good

performance on QC, after sales service and machines manufacturing.The more you learn about

us, the more you will understand that we are reliable and trustworthy. Just give a try to send

your inquiry to us and you'll see!
