Quick Details
-
Voltage:
-
380V 220V
-
Rated Power:
-
63A 100A 120A 160A 200A
-
Dimension(L*W*H):
-
1500*3000*2000mm
-
Weight (KG):
-
1850 KG
-
Year:
-
2000
-
Product name:
-
cnc plasma cutting machine table kit for metal stainless steel
-
Working area:
-
1500*3000mm( customized)
-
Control system:
-
starfire control system
-
Plasma power:
-
Hypertherm plasma power
-
Power:
-
63A 100A 120A 200A(optional)
-
Material:
-
copper aluminum stainless steel carbon iron aluminum galvanized sheet
-
Cutting thickness:
-
0-30mm
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
Quick Details
-
Dimensions:
-
1500*3000mm
-
Place of Origin:
-
China
-
Brand Name:
-
GoodCut cnc
-
Voltage:
-
380V 220V
-
Rated Power:
-
63A 100A 120A 160A 200A
-
Dimension(L*W*H):
-
1500*3000*2000mm
-
Weight (KG):
-
1850 KG
-
Year:
-
2000
-
Product name:
-
cnc plasma cutting machine table kit for metal stainless steel
-
Working area:
-
1500*3000mm( customized)
-
Control system:
-
starfire control system
-
Plasma power:
-
Hypertherm plasma power
-
Power:
-
63A 100A 120A 200A(optional)
-
Material:
-
copper aluminum stainless steel carbon iron aluminum galvanized sheet
-
Cutting thickness:
-
0-30mm
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE

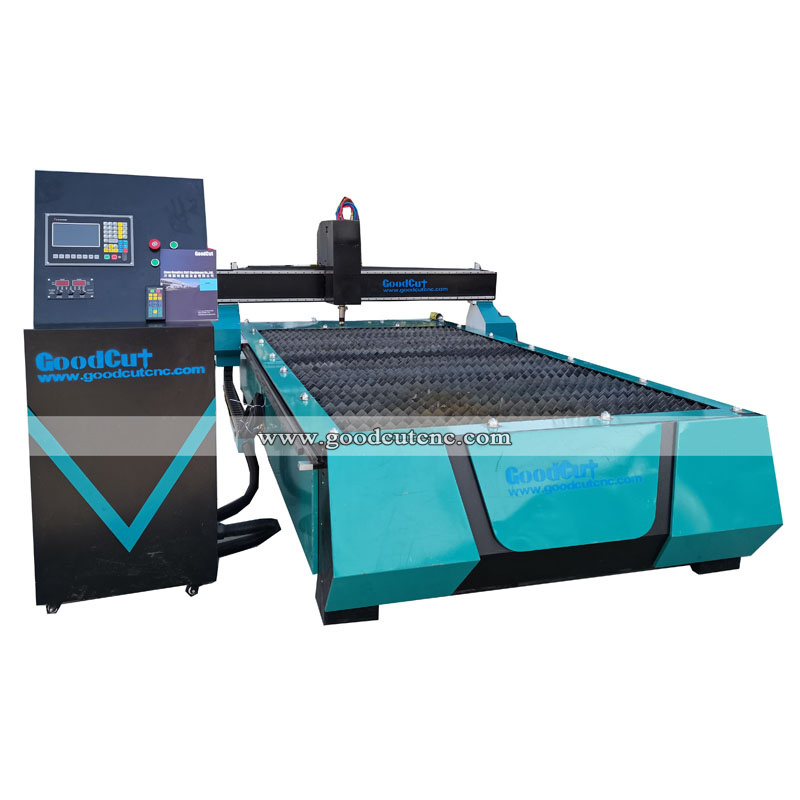

cnc plasma cutting machine table kit for metal stainless steel carbon steel iron aluminum
1. Feature:
1).The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.
2.Parameter:
|
Model |
GC1530 |
|
Working area (X-Y) |
1500mmx3000mm |
|
Working material |
Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates |
|
Working Thickness |
0.5-40mm |
|
Cutting Speed |
0-8000mm/min |
|
Power |
15kw |
|
Input Voltage |
380V 50HZ (or according to your need) |
|
Plasma Current |
63A/100A/120A/160A/200A/300A |
|
Connecting Way |
USB |
|
Working Mode |
Untouched arc striking |
|
Cooling method |
With water pump and tank provide circulating water cooling |
|
Z axis travel |
0-70mm |
|
The automatic elastic raise |
0-5mm |
|
Rail guide |
Precision work round |
|
Transmit way |
Taiwan imported ball screw |
|
Operation language |
English (Option) |
|
Command |
G code, *uoo, *mmg, *plt |
|
Optional power source |
USA brand Hypertherm powermax 45 65 85 105 125 200 |
|
Spare parts |
Electrode ,Electricity nozzle and Water jacket |
3.Advantage:
* High cutting technology.
* Minimum operating cost
* EDGE® Connect System (Hypertherm/USA)
* Arc Glide™ THC automatic height control system
* HyDefinition® technology
* PowerPierce™ technology
* LongLife™ technology
* HyPerformance® HPR-800XD® plasma source
* TurboNest® nesting software.
* The best choice for plasma with its high productivity and accurate cutting quality.
4.Application:
Applicatable industries:
Metal Cutting Materials:
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so n like the sheet metal.
