Quick Details
-
OS:
-
Android 7.0 or above
-
Processor:
-
Quad-Core 1.1GHz or above
-
Memory:
-
1GB DDR, 8GB eMMC
-
Display:
-
5-inch, 1280*720
-
Contactless card reader:
-
ISO14443 Type A/B, Mifare, ISO18092 compliant
-
Peripheral Ports:
-
1 USB-A, 1 Micro USB, 1 RS232, 1 RS485, 1 DC Charge
-
Communications:
-
WCDMA/GPRS/WIFI/BT
-
GPS (Optional):
-
Built-in
-
Built-in 1D/2D Barcode Reader:
-
Soft Decoding
-
Power Supply:
-
DC 9V~40V
Quick Details
-
Model Number:
-
TPS530
-
Brand Name:
-
Telpo
-
Place of Origin:
-
Guangdong, China
-
OS:
-
Android 7.0 or above
-
Processor:
-
Quad-Core 1.1GHz or above
-
Memory:
-
1GB DDR, 8GB eMMC
-
Display:
-
5-inch, 1280*720
-
Contactless card reader:
-
ISO14443 Type A/B, Mifare, ISO18092 compliant
-
Peripheral Ports:
-
1 USB-A, 1 Micro USB, 1 RS232, 1 RS485, 1 DC Charge
-
Communications:
-
WCDMA/GPRS/WIFI/BT
-
GPS (Optional):
-
Built-in
-
Built-in 1D/2D Barcode Reader:
-
Soft Decoding
-
Power Supply:
-
DC 9V~40V
New Arrival
Products Description

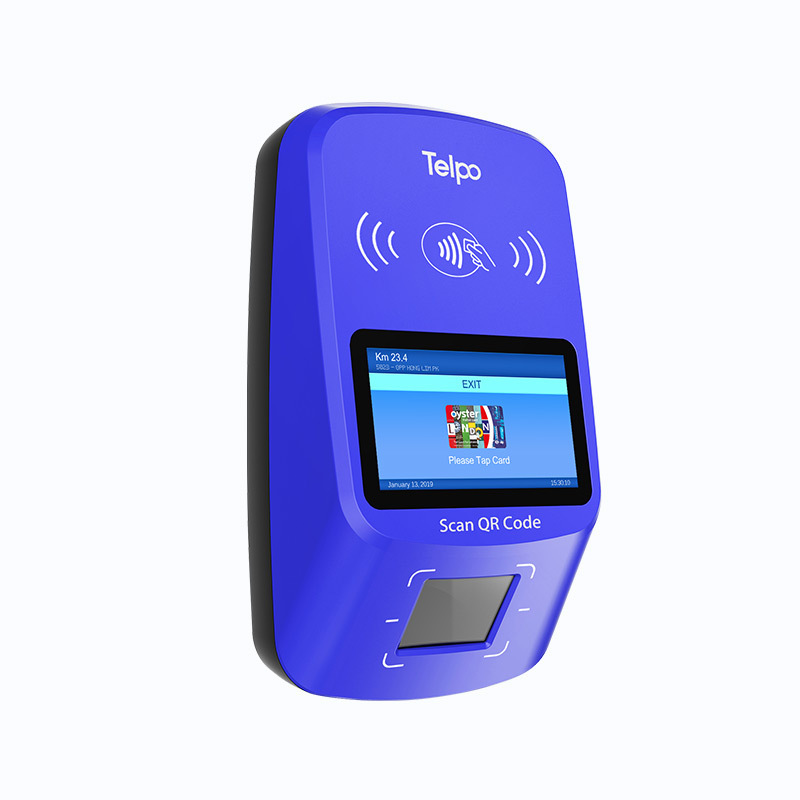

TPS530 Bus Validator Introduction
Public Transportation Fare Collection machine (FCM) TPS530 features:
1. 5-inch display (touch/ original display),
2. Rich port (DC\RS485\RS232、USB、Micro USB)
3. QR code hard decoding or OCR camera
4. 2SIM 2PSAM, with maximum 8PSAM , 64GB TF card
5. GPS function
Payments:
1. NFC payment, financial NFC is certificated. Calyso/HID is optional
2. QR code payment
Service:
1. Support ODM
2. Support free SDK to develop software
3. Support MDM (Mobile Device Management) service
4. Samples in stock , fast shipment after payment succeeded
1. 5-inch display (touch/ original display),
2. Rich port (DC\RS485\RS232、USB、Micro USB)
3. QR code hard decoding or OCR camera
4. 2SIM 2PSAM, with maximum 8PSAM , 64GB TF card
5. GPS function
Payments:
1. NFC payment, financial NFC is certificated. Calyso/HID is optional
2. QR code payment
Service:
1. Support ODM
2. Support free SDK to develop software
3. Support MDM (Mobile Device Management) service
4. Samples in stock , fast shipment after payment succeeded
|
OS
|
Android 7.1 or 8.1
|
|
Processor
|
Quad-Core 1.1GHz
|
|
Memory
|
1GB RAM, 8GB ROM
2GB RAM, 16GB ROM (Optional) |
|
Display
|
5-inch, 1280*720
|
|
Contactless Card Reader
|
ISO14443 Type A/B, Mifare
EMV Contactless L1, Paywave, Paypass (Optional) Calyso(Optional) HID(Optional) |
|
Peripheral Ports
|
Circular Connector:1 DC Charge (2 PINs)
Circular Connector:1 Relay+1 RS485 (6 PINs) 1 Ethernet Active POE:12V/24V (Optional) 1 USB 1 Micro USB 2 SIM, 2 SAMs 2 SAMs, up to 8 SAMs (Optional) |
|
Communications
|
LTE/WCDMA/GPRS/WIFI/BT
|
|
GPS
|
Built-in
|
|
Built-in 1D/2D
Barcode Reader
|
Soft Decoding
Hard Decoding(Optional) |
|
Audio
|
Digital Audio Speaker
|
|
Power Supply
|
DC 9V~40V
|
|
Dimensions (mm)
|
285 (L)*168 (W)*95 (H)
|
|
Environmental
|
Operating temperature: -20℃ ~ 50℃
Storage temperature: -25℃ ~ 70℃ |
|
MDM (Optional)
|
Mobile Device Management
|
|
Certification
|
CE, FCC, BIS
|
