Quick Details
-
Screw Speed (rpm):
-
36 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FAYGO
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
based on models
-
Power (kW):
-
65
-
Weight:
-
KG
-
Screw type:
-
Single Srew
-
Final product:
-
HDPE pipe
-
heating power:
-
13.5
-
Total length:
-
2.5m
-
Main motor power:
-
18.5/22
-
Motor:
-
SIEMENS Brand
-
Extruder:
-
SJ65/30 Single Screw Extruder
-
Raw material:
-
HDPE
-
L / D:
-
30:1
-
Capacity:
-
30-60
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
65 mm
-
Screw Speed (rpm):
-
36 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FAYGO
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
based on models
-
Power (kW):
-
65
-
Weight:
-
KG
-
Screw type:
-
Single Srew
-
Final product:
-
HDPE pipe
-
heating power:
-
13.5
-
Total length:
-
2.5m
-
Main motor power:
-
18.5/22
-
Motor:
-
SIEMENS Brand
-
Extruder:
-
SJ65/30 Single Screw Extruder
-
Raw material:
-
HDPE
-
L / D:
-
30:1
-
Capacity:
-
30-60
Product Description

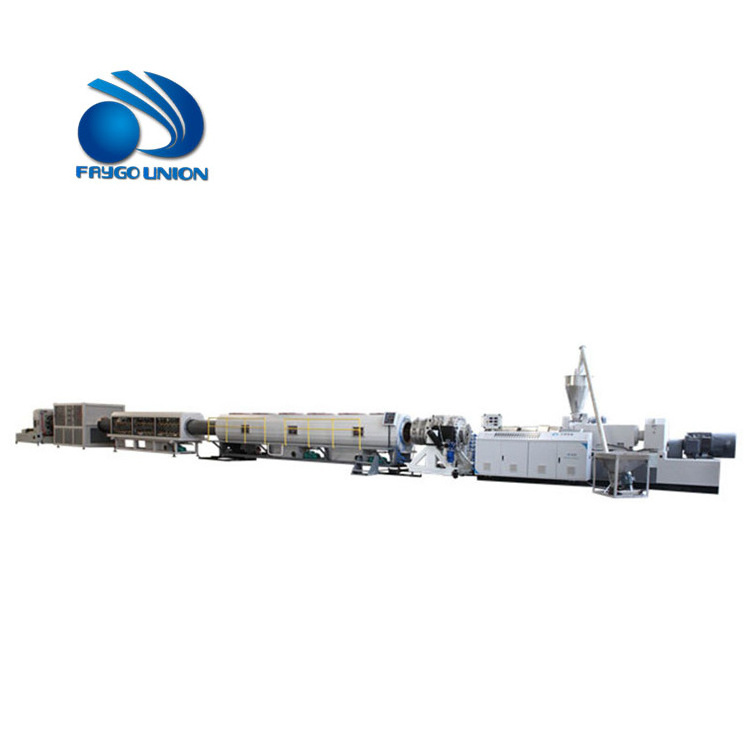

HDPE PIPE PRODUCTION LINE
This HDPE pipe line is mainly used for producing HDPE water supply pipe, gas supply pipe. It is composed by SJ series single screw extruder, mold, vacuum tanks, spraying cooling tank, haul- off, no-dust cutting machine, stacker. It could also apply to high speed extrusionof PE PP ABS material. The production line has advantage of compact structure, high automation and stable performance.
Size Information
Size Chart of This Design
|
model
|
SJ65/30
|
SJSZ75/33
|
SJ90/33
|
SJ120/33
|
SJ150/33
|
|
pipe diameter range(mm)
|
75
|
160
|
250
|
315
|
630
|
|
installation power
|
65
|
150
|
200
|
280
|
420
|
|
Output (kg/h)
|
80-120
|
80-150
|
180-260
|
300-400
|
450-600
|
|
Drawing speed (m/min)
|
0-12
|
0-8
|
0-6
|
0-4
|
0-2
|
Related Products
Extruder
Die
Vacuum tank
Our Advantages
1. Reduce the production cost.
Die with spiral mandrel, it ensures no delay in the flow channel which can save resources.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe
toughness.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe
toughness.
3. High output.
Particular disc design on calibration sleeves which ensures high speed extrusion.
Packing&Shipping
After Sales Service
Our after-sale service has got wide apprecation from home and abroad. Our motto is making good machine, being good man.
Company Introduction
Our comapny is a high-tech enterprise covering 20000 square meters, which specializes in researching and manufacturing pipe, profile, plastic sheet production line and other relative auxiliary machines. Our products have been exported to middle east, southeast Asia, south America and Europe etc.
