Quick Details
-
Model Number:
-
BFV05
-
Brand Name:
-
Flow Lead
-
Product name:
-

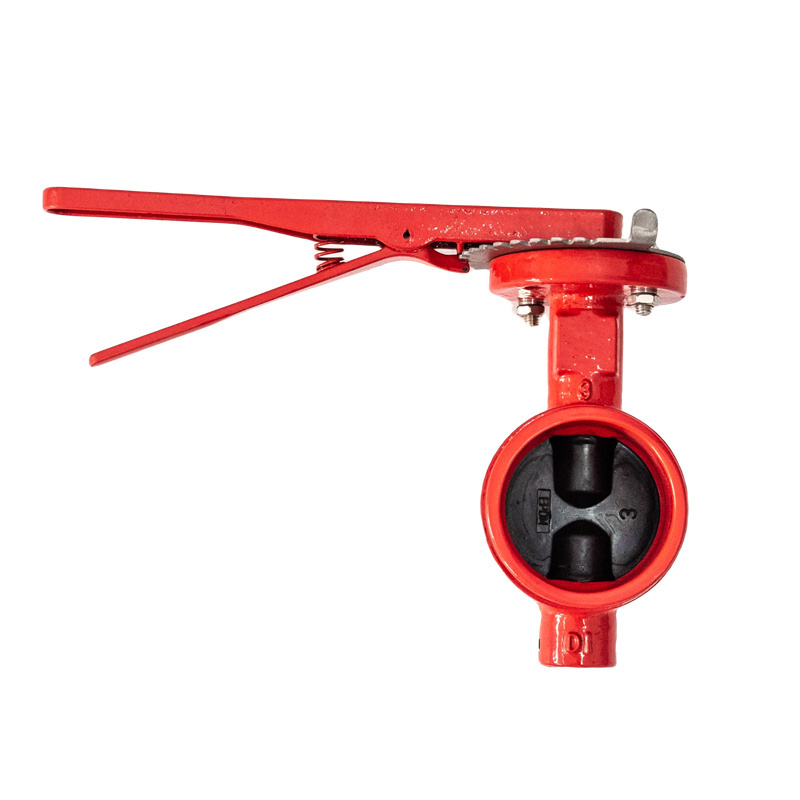

ductile iron grooved pre-grooved butterfly valve DN80
-
Size:
-
DN50-DN300
-
Pressure:
-
PN16
-
Applicable medium:
-
Water/Steam/Oil
-
Working Temperature:
-
0 ~150
-
Material:
-
Ductile iron
-
Connection:
-
wafer
-
Seal Material:
-
EPDM/NBR
-
Standard:
-
MSS SP-67
-
Certificate:
-
ISO CE
Quick Details
-
Port Size:
-
DN50-DN300
-
Warranty:
-
18 months
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
BFV05
-
Brand Name:
-
Flow Lead
-
Product name:
-
ductile iron grooved pre-grooved butterfly valve DN80
-
Size:
-
DN50-DN300
-
Pressure:
-
PN16
-
Applicable medium:
-
Water/Steam/Oil
-
Working Temperature:
-
0 ~150
-
Material:
-
Ductile iron
-
Connection:
-
wafer
-
Seal Material:
-
EPDM/NBR
-
Standard:
-
MSS SP-67
-
Certificate:
-
ISO CE
Features:
Groove end
360°polished disc assures positive on-off
Actuator:Hand Lever;Worm Gear;Pneumatic/Electric;
FBE Coated
Technical Specification:
Size:DN40-DN300
End to end:MSS SP-67
Dimension for groove: ANSI/AWWA C606 Table4
Mounting pad:ISO5211
Inspection and Test:API598
Seat Test: 17.6bar
Shell Test: 24bar
|
Item No.
|
Part Name
|
Specification
|
|
1
|
Upper stem
|
SS416
|
|
2
|
Stop cover
|
Steel
|
|
3
|
Bolt
|
Steel
|
|
4
|
Bushing
|
PTFE
|
|
5
|
O-Ring
|
Viton
|
|
6
|
Body
|
ASTM A536
|
|
7
|
Disc
|
ASTM A536
|
|
8
|
Lower stem
|
SS416
|
|
9
|
Screw End
|
Carbon steel
|
|
10
|
O-Ring
|
Viton
|
|
11
|
Latch Plate
|
Steel
|
|
12
|
Handle
|
Malleable iron
|
1.Q: Can I have your samples?
A: Yes, You should pay for the samples first, after order finished we will refund the sample cost to you.
2.Q: Can you accept OEM service?
A: Yes, we can produce the cargo completely according to your own drawing, also we accept your own logo to be casted on valve body, and we accept the color you like to be painted.
3.Q:What's your payment term?
A:We accept T/T(RMB,USD,EUR), L/C, Alibaba Trade Assurance.
4.Q:How is the transportation?
A: By Sea, by Railway, by Air, by DHL,TNT,UPS,FEDEX and so on.
