Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng
-
Color:
-
can be chosen by client
Quick Details
-
Seats:
-
21 - 40
-
Emission Standard:
-
Euro 3
-
Dimensions (L x W x H) (mm):
-
11950 * 2510 * 3070/3170
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng
-
Color:
-
can be chosen by client

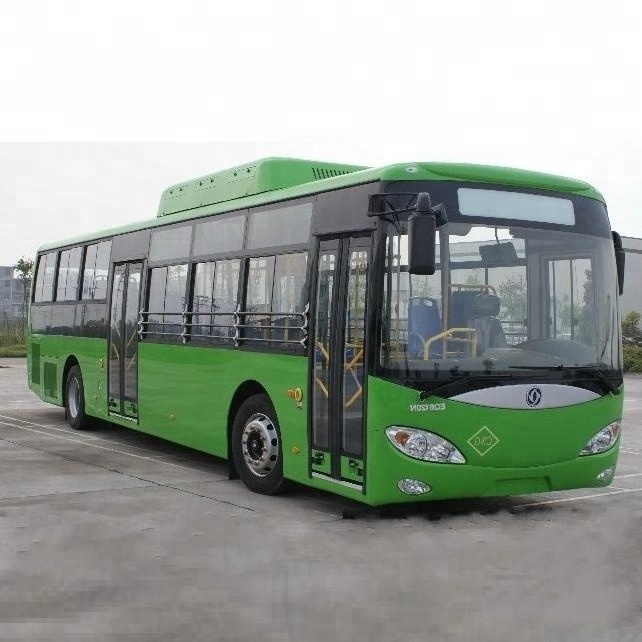

Dongfeng EQ6120N CNG city bus with 38 seats
|
Bus model |
EQ6120N CNG city bus |
|
|
Overall demension(mm) |
12000 * 2510 * 3400 |
|
|
Wheelbase (mm) |
6300 |
|
|
Wheel tread (mm) |
2020/1860 |
|
|
Front /rear overhang(mm) |
2440/3260 |
|
|
Max gross weight(kg) |
18000 |
|
|
Curb weight (kg) |
11720 |
|
|
Approach/departure angle ( ° ) |
8.5/8.0 |
|
|
Top speed ( km/h ) |
80 |
|
|
CNG cylinder capacity(L) |
80L ×9 |
|
|
Rated passenger capacity (included driver) |
96/29-48 |
|
|
Seating arrangement |
|
|
|
|
|
|
|
38+1 |
Front 2+2,rear 2+2 |
|
|
technical parameters of Structure assembly |
||
|
Vehicle model |
EQ6120N |
|
|
Chassis model |
EQ6111TN |
|
|
Chassis manufacturer |
Dongfeng Motor Co.,LTD |
|
|
Engine Model |
YC6G260N-30 |
|
|
Engine power (kw) |
190 |
|
|
Torque N.m |
980 |
|
|
Engine position |
Rear |
|
|
Displacement (ml) |
7800 |
|
|
Emission standard |
Europe 3 |
|
|
Fuel sort |
CNG |
|
|
Engine manufacturer |
Yuchai Engine CO.,LTD |
|
|
Drive mode |
Right hand driving |
|
|
Tire model |
11.00R20 |
|
|
Suspension system |
Spring plus double-acting cylinder plate shock absorbers |
|
|
Parking braking system |
Energy storage spring brake |
|
|
Brake system |
Double –circuit air pressure brake system,drum brakes |
|
|
Clutch |
Single, dry type, coil spring, hydraulic gas booster control mechanism |
|
|
Gear box model |
QJ805 |
|
Naked,vehicle surface spray anti-rust wax before shipment.
· One year quality warranty for key parts such as axles, engine, transmission;
· All spare parts would be OEM and supplied at cost prices;
· Overseas service center to ensure efficent after-sales service;
· Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
