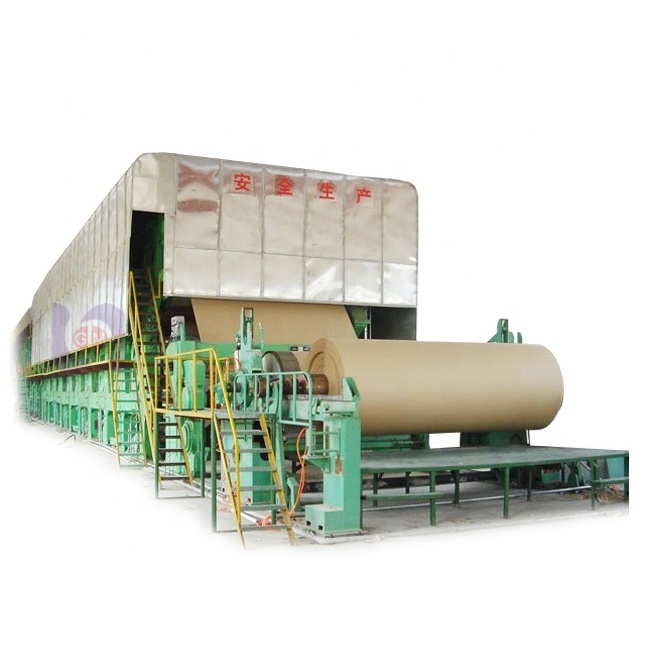

China Supplier 2100mm Recycled Paper Pulper Machine, Kraft Paper Jumbo Roll Carton Box Production Line Price

This kraft carton box paper production line can use waste paper,virgin pulp as raw material to make high quality kraft paper,corrugated paper,liner paper,finished product can be jumbo paper roll;
It include following section:
1.Pulp making section; (function:process the raw material into paper pulp);
2.Paper making section; (function:process the paper pulp into paper jumbo roll);
3.Paper converting section; (function:slit and rewind paper roll);
4.Boiler section; (function:supply steam to paper machine);
5.Hot steam recycling system.(Function:make hot steam recycle use.)

1.Raw material : waster paper,recycled paper, agriculture waste;
2.Output paper : craft paper,kraft paper,corrugated paper,flute paper,liner paper, carton box cardboard paper.
3.Capacity:25tons per day(24hours);
4.Net paper width: 2100mm;
5.Output paper weight:200gsm;
6.Width of cylinder mould:2350mm ;
7.Bearing center-center :2900mm ;
8.Working speed:35--60m per min;
9.Design speed:60m per min
10.Drive and control : Alternating current ,frequency conversion, speed control, section drive ;

1. chain plate conveyor 1set
2. 10m³hydrapulper 1set
3. 850 thruster 9 sets
4. GM3 fiber separator 1 set
5. GM2 vibrating screen 1 set
6. 450 double disc refiner 1set
7. middle consistency pressure screen 1 set
8. 0.6 pressure screen 1 set
9. low consistency sand remover 3 sets
10. high consistency sand remover 1 set
11. pulp pump 12 sets
12. thickner screen 3 sets
13. pulp concentration control 1 full set
equipment
14. multi-stage pump 2 sets

China supplier 2100mm recycled paper pulper machine, kraft paper jumbo roll carton box production line price

China Supplier 2100mm Recycled Paper Pulper Machine, Kraft Paper Jumbo Roll Carton Box Production Line Price

China supplier 2100mm recycled paper pulper machine, kraft paper jumbo roll carton box production line price

Products will be packaged according to their shapes, weight, transport distance and transport modes.large machines will be packaged in sections. every part of export machinery will be in standard export package seaworthy wooden case, waterproof film, straw rope, carton box,wood board,plastic foam, etc., which will ensure the intactness of products.

Sea transportation is from qingdao seaports or other china main ports.
The delivery time is decided by machine types.But we also try to make it follows your needs.

A.Pre-sale service
1.24 hours phone,email,tradem anager online services;
2.supply the detailed project report,detailed general drawing,detailed flow process design,detailed layout factory drawing for you until meet your requirement;
3.welcome you to come to our paper making machine factory and paper mill factory to have a look and check;
4.tell you all the necessary cost when set up a paper mill factory;
5.answer you all the questions within 24hours;
6.send you various quality paper samples made by our paper machine for free;
7.supply turn key-project service.

B.On-purchase service:
1.accompany you to check all the equipments made by us,and help you to make the plan of installation;
2.supply paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram,formal installation drawing, use and installation instructions and a full set of technical data after signing the contract.

C.After-sales service:
1.delivery the machine as soon as possible according to your requirement,within 30days;
2.send rich practiced experience engineers to you to install and test the machine and train your worker for free;
3.give you one year guarantee time after the machine can run well;
4.After one year,we can guide and help you to maintain the machines;
5.every 2 years,we can help to overhaul the complete machines for free;
6.send you spare part in lower price.

Installation of China Supplier 2100mm Recycled Paper Pulper Machine, Kraft Paper Jumbo Roll Carton Box Production Line Price
We will send most professional engineers to install and test the machine for you until the machine can work well,these engineers are all have rich practiced experience in installing and operating the machine. After finish installing the machine,our engineers will train your workers,teach you paper prodcution technology,and teach you how to operate and maintain the machine. Our engineers can also stay in your factory to work long time for you.

Our company----Qinyang guangmao machinery manufacturing Co.,Ltd,located in zhengzhou city,China,is a leading professional paper machine manufacturer in China with best quality and perfect service since 1982.

A.Business scope:
1.various pulp making machine;
2.various paper making machine;
3.various paper processing machine;
4.various spare parts;
5.Technical service,such as installation,improve old paper machine.

B.Our scale:
1.4 branch factories;
2.1 International Trade Department;
3.total areas is 96,000㎡;

C.Technology strength:
1.1 professional technician team of 116 engineers and 12 experts;
2.35 years rich practice experience;
3.1 innovative research team,always follow the advanced technology of Finland,Denmark and Italy,Gemany;
4.skilled and careful installation team;

D.Our market:
Our machine sells well in more than 30 countries and regions,such as Moxico,USA,Canada,Brazil,Paraguay,Australia,Uzbekistan,Kazakhstan,Kyrghyzstan,Tajikhstan,Mogolia,Nigeria,Uganda,Egypt,Ethiopia,Bangladesh,Pakistan,Bhutan,Indonesia,Fiji Island,Saudi Arabia,Oman,Algeria,Syria,Libya,etc.
High quality and perfect service have reserved customer's praise and more orders,we also establish good strategic cooperation with local distritutor.

1.Why we choose your company?
(1)more than 30 years experience of manufacture paper machine and pulp making machine;
(2)professional engineer team ensure latest and best design;
(3)professional project manager ensure perfect service for whole procedure,such as quotation preparation,arrange shipment,customs clearance;

2.How to visit your factory and what is visiting schedule?
(1)Our company located in ZHENGZHOU city, HeNan province,
From Beijing to our city,it will take 1.5hours by flight or 3 hours by high speed train;
From Guangzhou to our city,it will take 2 hours and 20minutes by flight or 6.5hours by high speed train;
From Shanghai to our city,it will take 2hours by flight or 7hours by high speed train;
(2)after you confirm visiting plan,please inform us,we will arrange picking up and also booking hotel for you;
(3)welcome to visit our factory,you can check our factory facility,machine manufacturing ability,machine quality,we will also show you same working machine,you can check working performance and get necessary information of whole project,this can help you know well about this project;

3.How about technical service?
(1)we will send engineer to check your land condition and make precise design of whole factory;
(2)we will send engineers to make installation for you,after installation,they will teach your workers how to operation,maintain machine and also how to make paper;
(3)if you need,we can also keep some engineer working for you until you completely know well about machine;

4.what document you provide?
(1)complete set drawing of whole machine;
(2)detail manual for operation and maintain in English;
(3)commercial invoice, packing list, Bill of lading, CE certificate, CIQ certificate, SONCAP certificate etc, we can prepare different kind of document according to special requirement;
