Ip66 Outdoor Weatherproof 16W Led Ceiling Light

Ip66 Outdoor Weatherproof 16W Led Ceiling Light

FOB Reference Price: Get Latest Price

≥10 Pieces

US $88.7

≥200 Pieces

US $81.2

≥500 Pieces

US $74.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SHYLON

Model Number:: SL6157B-9

Input Voltage(V):: AC100-240V

Product Weight（kg）:: 2.75

Item Type:: Outdoor Ceiling Lights

IP Rating:: IP66

Lamp Body Material:: Die casting Aluminum

Color:: Grey

Watt:: 16W

Quick Details

Color Temperature(CCT):: 2700K (Soft Warm White)

Warranty(Year):: 2-Year

Place of Origin:: Jiangsu, China

Brand Name:: SHYLON

Model Number:: SL6157B-9

Input Voltage(V):: AC100-240V

Product Weight（kg）:: 2.75

Item Type:: Outdoor Ceiling Lights

IP Rating:: IP66

Lamp Body Material:: Die casting Aluminum

Color:: Grey

Watt:: 16W

Product Details

Characteristics

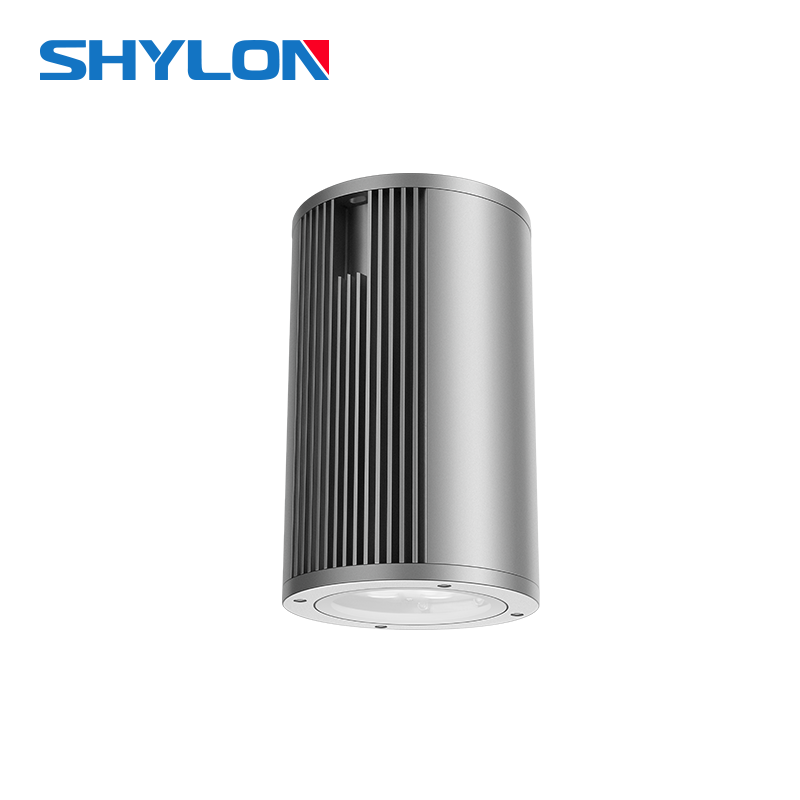

ip66 outdoor weatherproof 16W led ceiling light

Characteristics

Housing: Die-casting aluminum housing; 5mm thickness tempered glass with silicone rubber gasket, AkzoNobel corrosion-resistance coating; heat radiation rib can get remarkable ventilation and heat radiation , also with excellent self-cleaning performance.

Housing color: Grey(RAL9023)
Mounting: Ceiling mounted

Model: SL6157B-9
LED Chips: 9pcs CREE chips.
Light distribution: use optical PMMA secondary light distribution technology, viewing angle, light-gathering effects can be adjusted by various lens according to demands.
Protection grade: IP66

Specification

Input Voltage: AC100-240V, 50/60Hz

Rated Power: 16W
Color Temperature: single
CRI: 80
Efficiency: >80lm/W (white)
Control: CC
Beam Angle: 8 °/12.5 °/20 °/30 °/45 °
Operating Temperature: -25℃-50℃
Life span: 50000h
Warranty: 2 years for whole light

Model	SL6157B-9	SL6157A-9	SL6157-C20
LED Quantity	9pcs CREE chips	18pcs CREE chips	1pcs COB
Rated Power	16W	21W	26W
Input Voltage	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz	AC100-240V, 50/60Hz
Color Temperature	Single	Single	Single
Beam Angle	8°/12.5°/20°/30°/45°	8°/12.5°/20°/30°/45°	15°
Control Mode	CC	CC	CC
Protection Grade	IP66	IP66	IP66
Ambient Temp.	-25℃-50℃	-25℃-50℃	-25℃-50℃

Installation Instructions

Relalted Products

Project Reference

Certifications

Our wall light series flood light have gotten EMC(CE), LVD(CE), RoHS certificate, and passed IP66 test.

About Us

Shanghai SHYLON Optoelectronics Technology Co., Ltd. (SHYLON) was founded in 2010 with registered capital 65 million Yuan. SHYLON owns seven subsidiary companies. SHYLON dedicates to the design, production and marketing in outdoor lighting. Located in Kunshan city, SHYLON factory covers an area of 50 acres, with gross investment 120 million Yuan. 312 committed and dedicated employees, including 22 professional R&D engineers, 56 sales engineers and technical support engineers, ensure 4000-5000 sets per day production capacity. In addition to new CNAS testing center, SHYLON has built standard SMT dust-free workshop and three automated production assembly lines. One professional and fully automatic painting line, which includes 22 processes and double-fluorocarbon coating and two times baking, can ensure lights reaching curtain wall standard. No matter -40℃ in Russia or 70℃ in Dubai, SHYLON’s products can both work well.

"Valuable high quality'' is our pursuit and ultimate goal. We will perfect our management and production system all the time, put the quality and brand as SHYLON’s top strategy, develop the most reliable and best qualified products with professional dedication spirit, integrity and innovation, and offer full range and best lighting solutions for all customers.

Exhibition

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available, and 10pcs for mass order.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
