Quick Details
-
Max. Forward Voltage:
-
1.1V, 1.1V
-
Max. Reverse Voltage:
-
1000V
-
Max. Forward Current:
-
1A, 1A
-
Max. Reverse Current:
-
5.0uA, 5.0uA
-
Product name:
-
M7 Rectifer Diodes
-
Package:
-
SMA
-
Material:
-
Silicon
-
Operating Temperature:
-
-55 to +150
-
Brand:
-
HYG
-
Model NO.:
-
M7
Quick Details
-
Model Number:
-
M7
-
Brand Name:
-
HYG
-
Place of Origin:
-
Guangdong, China
-
Max. Forward Voltage:
-
1.1V, 1.1V
-
Max. Reverse Voltage:
-
1000V
-
Max. Forward Current:
-
1A, 1A
-
Max. Reverse Current:
-
5.0uA, 5.0uA
-
Product name:
-
M7 Rectifer Diodes
-
Package:
-
SMA
-
Material:
-
Silicon
-
Operating Temperature:
-
-55 to +150
-
Brand:
-
HYG
-
Model NO.:
-
M7

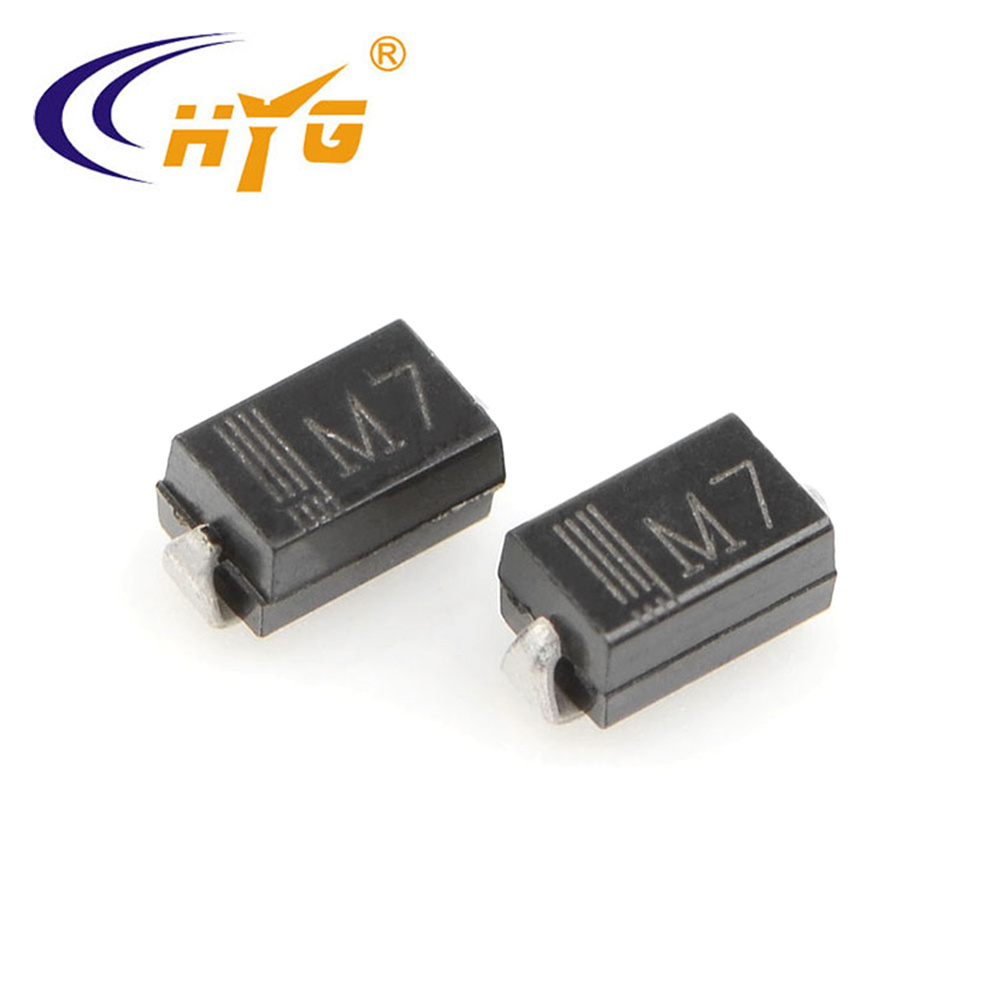

M7 rectifier diode 1A1000V SMA M7 Diode rectifier SMD 1N4007
Specification:
| M1 THRU M7 | |
|
SURFACE MOUNT GENERAL RECTIFIER
Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere |
|
| FEATURES | |
|
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
ideal for automated placement
|
|
| MECHANICAL DATA | |
|
Case: JEDEC DO-214AC molded plastic body
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.075 grams |
|
| MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS | |
|
Ratings at 25C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. |
|
| TYPE NUMBER | SYMBOLS | M1 | M2 | M3 | M4 | M5 | M6 | M7 | UNIT |
|
Maximum Recurrent Peak Reverse Voltage |
VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Maximum average forward rectified current at TL =55℃ |
I(AV) | 1.0 | A | ||||||
|
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | ||||||
|
Maximum instantaneous forward voltage at 1.0A DC |
VF | 1.1 | V | ||||||
|
Maximum DC reverse current TA =25℃
at rated DC blocking voltage TA=100℃ |
IR |
5.0
50 |
uA | ||||||
| Typical junction capacitance (Note 1) | CJ | 15 | pF | ||||||
| Typical thermal resistance (Note 2) | RθJC | 75 | ℃/w | ||||||
| Operating Temperature Range | TJ | "-55--+125 | ℃ | ||||||
| Storage temperature range | TSTG | "-55--+150 | ℃ | ||||||
|
Notes:
1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas |
|||||||||
