Quick Details
-
Certificate:
-
ISO9001:2008, CE, BV etc.
-
Frequency:
-
30-100KHZ
-
Package:
-
Plywood case
-
Application:
-
Brazing, Melting, Quenching, Annealing etc.
-
H.S code:
-
8514400090
-
Cooling Water:
-
>0.2MPa 2-5L/Min
-
Working Theory:
-
Electromagnetic Induction Heating
-
After Warranty Service:
-
Online support
-
LocalService Location:
-
India
-
Product name:
-
Induction Heating Copper Brazing Equipment
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINLAI
-
Weight (KG):
-
28
-
Certificate:
-
ISO9001:2008, CE, BV etc.
-
Frequency:
-
30-100KHZ
-
Package:
-
Plywood case
-
Application:
-
Brazing, Melting, Quenching, Annealing etc.
-
H.S code:
-
8514400090
-
Cooling Water:
-
>0.2MPa 2-5L/Min
-
Working Theory:
-
Electromagnetic Induction Heating
-
After Warranty Service:
-
Online support
-
LocalService Location:
-
India
-
Product name:
-
Induction Heating Copper Brazing Equipment
l 100% payment protection and USD100,000 warrantee by Alibaba.
l Strict quality checking standard according ISO9001:2008 .
l With all frequency machine series, also can customized.
l All machines continuously 48 hours testing before shipment.
l Perfect pre and after-sale service and long term technical supporting .
Hot Sale Electric Copper Tube Induction Rotor Induction Heating Copper Brazing Equipment
Main characteristics
- Adoping MOSFGT and IGBT inverting device, tracking frequency automatically.
- High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
- Security and reliability, the equipments have the secure voltage and it's secure to operate.
- Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
- It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company.
- Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc
Technical Parameters
| Model | JL-25KW (AB) |
| I nput power desire |
3 phase 380V
50/60HZ |
| O scillate power max | 25KW |
| M ax input current | 24A |
| Max input power | 15KW |
| O scillate frequency | 30-100KHZ |
| C ooling water desire | >0.2MPa 2- 6 L/Min ≤40°C |
| D uty cycle | 100% |

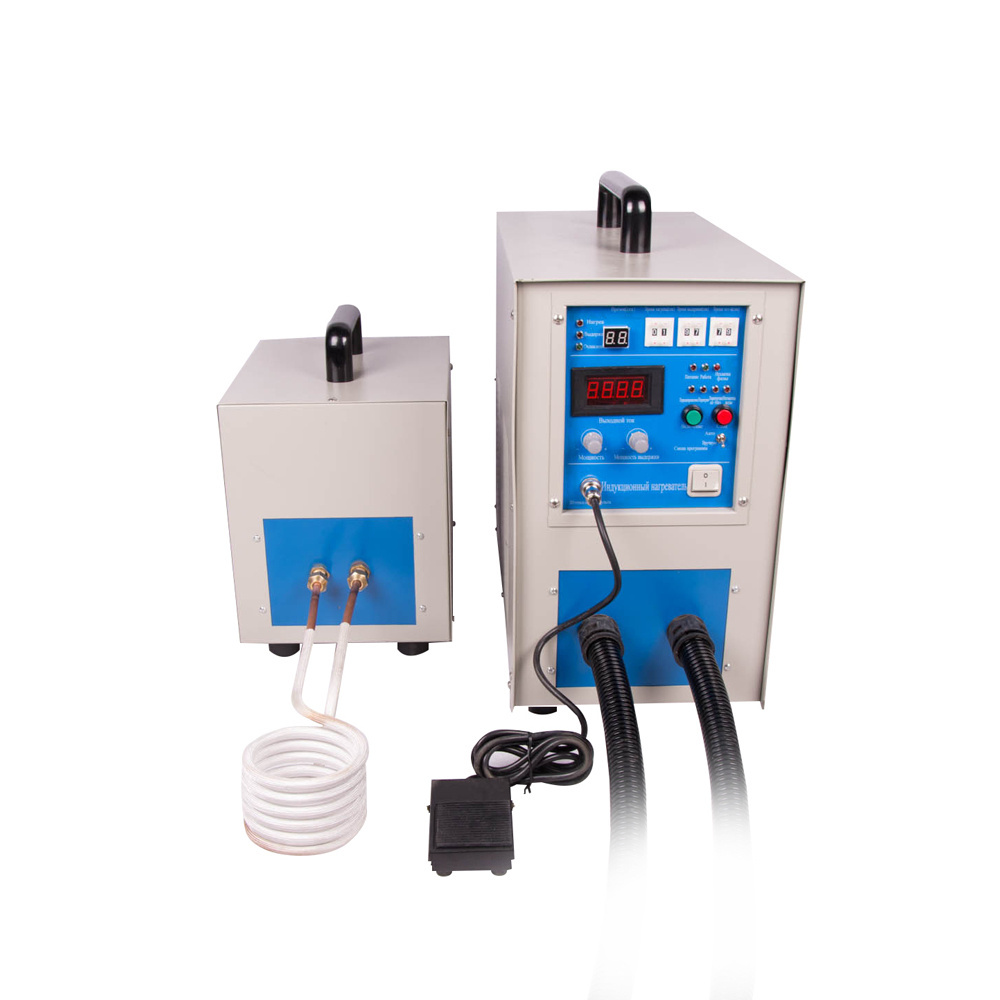

| D imensions(L*W*H) | Generator: 600*240*480mm; Transformer:340*210*320mm |
| N et weight | 25kg/15kg |
| C able length | 2-6(Meters) |
Main Parts Introduction
- Germany SIEMENS INFINEON IGBT Module. ( 30-100KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
- Japan Nichicon electrolytic capacitor. ( filter capacitor )
- Imported transistor integrated block.
- All water pipe use thermostability , High pressure resistance best quality material.
- Main card, signal circuit, drive circuit board,control circuit board and components are adopted: Toshiba, Hitachi,Motorola, China's top manufacturers.
- International advanced all-solid-state semiconductor power devices.
- Technical advantage :perfect control, alarm display circuit, getting full automatic tracking frequency , continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
- Superiority Advantages : fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
Heating Principle
The principle of high frequency induction heating is that apply high frequency alernating current to a conduct that is curled to cyclic (normally copper tube) to produce flux, then put the metal to this area to make the flux to run through it, and eddy current will be generated in the deriction of self-capturing with flux(rotary current), the induced current then generates heat under the influence of the eddy current, so this heating method is called induction heating. hence, metal and other objects under heated can be heated without contact. at this moment, the character of the eddy current relies in that the induction heating on the object nearby the coil is outwardly strong but inwardly weak. with this principle. this heating body can be concentratedly heated where needed to achieve instantly effect, thereby the production output and work capacity are both improved.
Applications:
- Metal tube welding: such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
- Alloy cutter welding: such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
- Carbide saw blade welding: diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,
- Metal welding: such as: towel rack, soap nets, towel holder, auto-accessories,motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
- M ake machine according to customers' actual working situation.
