EDUP High Speed 300Mbps 4G LTE MTK7628 WiFi Router With SIM Card Slot

EDUP High Speed 300Mbps 4G LTE MTK7628 WiFi Router With SIM Card Slot

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25

≥500 Pieces

US $23.1

≥1000 Pieces

US $22.8

≥30000 Pieces

US $6.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

2.4G Wi-Fi Transmission Rate:: 300 Mbps

Type:: Wireless

Brand Name:: EDUP

Place of Origin:: Guangdong, China

Product name:: EP-KW7503L

Chipset:: MTK7628

Peak rate:: 300Mbps Cat4

Share:: up to 32users

WIFI Standard:: Support 802.11 b/g/n

LTE CHIP:: ZX297520V3

SIM card slot:: Standard USIM MicroSD

Frequency:: 2.4GHz

Interface:: 1*Wan/ 2*Lan

Quick Details

Max. LAN Data Rate:: 300Mbps

With Modem Function:: NO

Wi-Fi Supported Frequency:: 2.4G

2.4G Wi-Fi Transmission Rate:: 300 Mbps

Type:: Wireless

Brand Name:: EDUP

Place of Origin:: Guangdong, China

Product name:: EP-KW7503L

Chipset:: MTK7628

Peak rate:: 300Mbps Cat4

Share:: up to 32users

WIFI Standard:: Support 802.11 b/g/n

LTE CHIP:: ZX297520V3

SIM card slot:: Standard USIM MicroSD

Frequency:: 2.4GHz

Interface:: 1*Wan/ 2*Lan

EDUP High Speed 300Mbps 4G LTE MTK7628 WiFi Router With SIM Card Slot

4G FDD: B1/B3/B5/B8

4G TDD: B38/B39/B40/B41

3G: B1/B8

Same 4G Qualcomm Module(EC200A series)

Lately we got KW-N7503S, which is the enchanced version of KW-N7503L.

Unlike the 7503L which uses 7628KN , the 7503S uses the 7628DAN CPU.That's why there is a price difference between the two. The CPU 7628DAN(7503S) offers improved stability, extended standby time, and faster data processing capabilities for the router.It enables seamless connectivity for up to 32 wireless devices, surpassing the concurrent client capacity of 25 achievable with the 7503L. If you have more users needing to connect and require higher performance to support gaming, TV, movie, etc, then 7503S would be your better choice. If not, then 7503L shall exceeds your expectations and normal needs.

The link for 7503S: https://www.alibaba.com/product-detail/EDUP-Qualcomm-Module-300Mbps-Wifi-LTE_1600879215761.html?spm=a2747.manage.0.0.494071d254dr0t

Ready to Ship 4G

Product Description

Router hardware
processor	MT7628NN
Power input port	DC 12V---1A
WAN Port	1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
LAN Port	2 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
WPS/Reset Buttons	Sgort press: WPS, Long press: reset( Used to restore the factory configuration of the router.)
Power button	Router's power switch (not required)
LED indication	1, power supply 2, System (dial status, indiscriminate wired or wireless ) 3, 3/4G : Blue-green light indicates 3G, 4G status 4, WIFI Indication 5, WAN Interfaces ; 6, LAN1 ; 7, LAN2 ;
Storage	SDRAM: 64M Bytes Nor Flash: 8M Bytes
Wireless parameters
WIFI Frequency range		FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13)
Mobile network frequency		FDD: B1 B3 B5 B8, TDD: B38 B39 B40 B41 TDS-CDMA: B34 B39 WCDMA: B1 B8
Transmission rate		11n: 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps
		11g: 54/48/36/24/18/12/9/6M ( Adaptive )
		11b: 11/5.5/2/1M ( Adaptive)
Number of working channels		13
Spread Spectrum Technology		DSSS( Direct Sequence Spread Spectrum)
Data modulation method		BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Sensitivity @PER (error packet rate)		270M: -61dBm@10% PER ; 130M : -61dBm@10% PER ; 108M : -61dBm@10% PER ; 54M : -65dBm@10% PER ; 11M : -85dBm@8% PER ; 6M : -88dBm@10% PER;1M : -90dBm@8% PER
Transmission distance		Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
RF Power		11n : 15±dBm; 11g : 17±1dBm; 11b : 19±1dBm( Typical value )
LTE related hardware

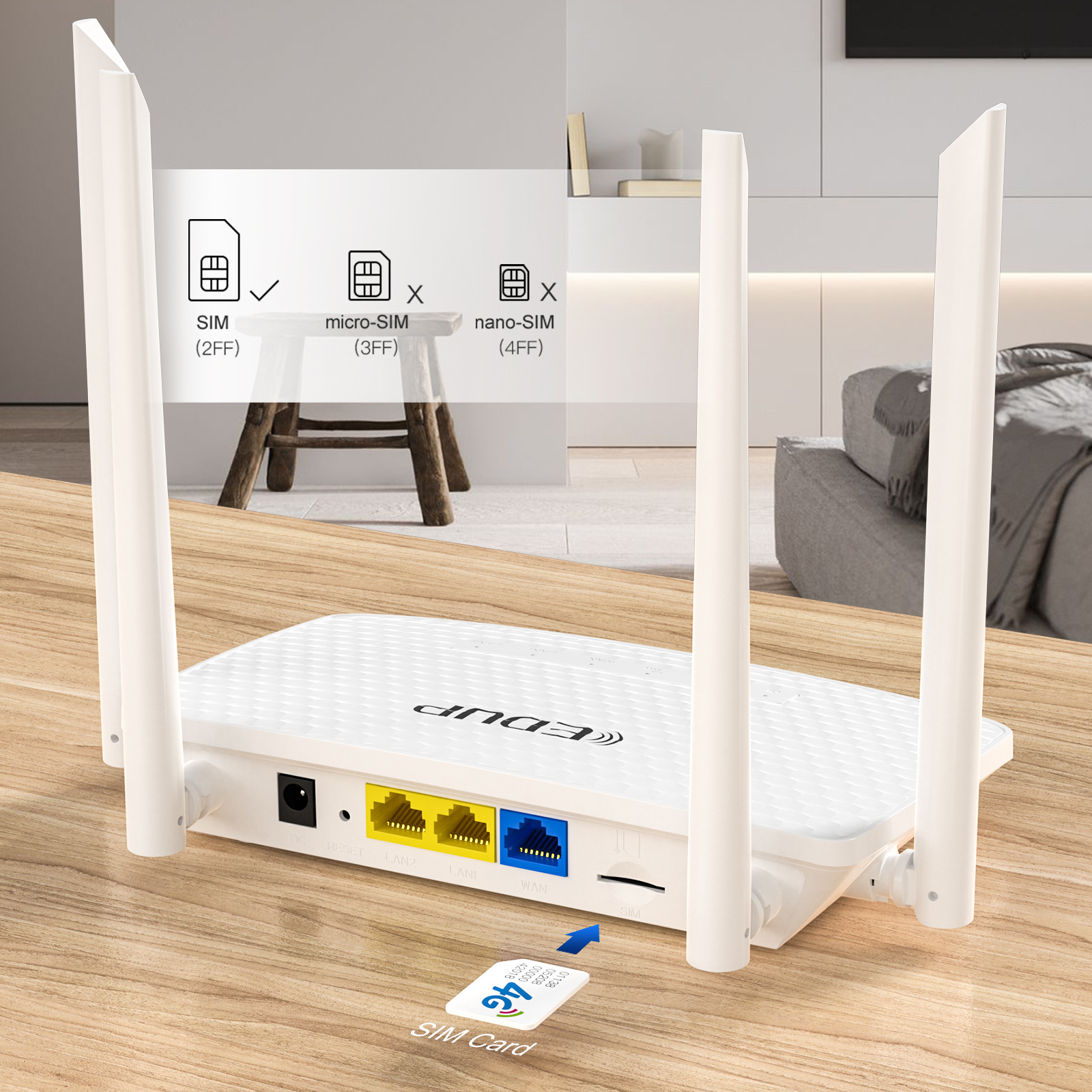

SIM Card Slot		Rear flip SIM card Slot
Antennas		External 4 antenna, corresponding to 4G main antenna, wifi dual antenna
Router software features
IP Address		Static or dynamic
PPP over Ethernet		YES
The maximum number of users		32 ( Simultaneous Internet access )
Routing Protocol		Static route, RIP1/RIP2
Configuration & Management		Based on WEB interface management (HTTP)
DHCP		Support Server and Client
Firewall protection		Built-in NAT firewall
